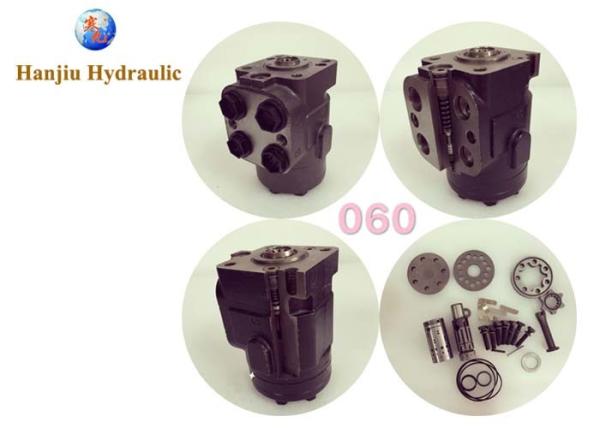

Orbital Steering Valve 060 ON-Open Center Non Reaction Orbitrol

060 series PSU incorporated the inlet check valve, safety valve, internal check valve, cylinder port shock valve and anti-cavitation valve. We can offer the steering unit match with OEM number tractor, like , Massey Ferguson, , , Claas, Ford, etc

Features:

1. The design is more compact and convenient.

2. Low hydraulic noise

3. Special casting design for low pressure drop.

4. 3 basic systems-open center, closed center and load sensing

Main specifications

Max. System pressure --------16MPa
Max. Back pressure -----------2.1MPa
Input torque--------------------1.7~2.5Nm
Max. System operating temperature--------93º C
Recommended oil filtration--------ISO 19/16

Function of the incorporated valve

1. Inlet safety valve: Limits maximum pressure drop across the PSU to protect the steering circuit.

2.Cylinder port shock valve: Protects hoses against pressure surge created by ground forces on the cylinder axle.

3. Anti- cavitation valve: Protects steering circuit against vacuum (cavitation) conditions.

4. Inlet check valve: Prevents oil from returning through the PSU when pressure on the cylinder side is greater than the inlet side. It prevents steering wheel kick.

5. Internal check valve: Converts the PSU to a hand operated pump for limited manual steering.

Applications:

Orbital Steering Valve can widely use for agricultural machinery and construction machinery.

060 series steering unit apply to tractor, harvester, loader, forklift, etc.
