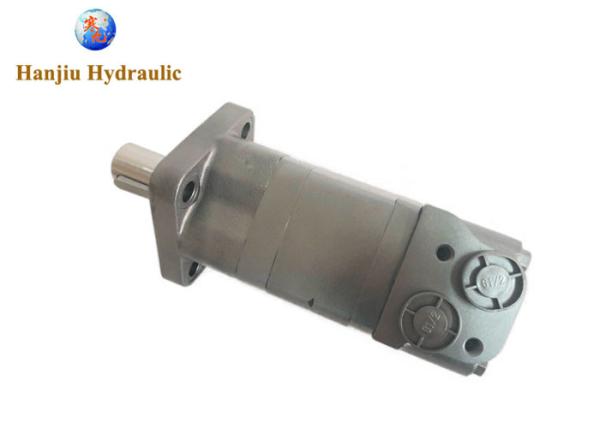

    Professional Low RPM Hydraulic Motor BMS / 2000 Series 31.75mm Straight Shaft

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : BMS
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T, L/C, T/T, Western Union, Paypal
    Supply Ability : 100,000 pieces per year
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    Professional Low RPM Hydraulic Motor BMS / 2000 Series 31.75mm Straight Shaft

    Low RPM Hydraulic Motor BMS/2000 Series φ31.75mm Straight Shaft


    Characteristic Features:

    1. Advanced design in disc distribution flow, which can automatically compensatein operating.


    2. Shaft seal can bear high pressure of back and the motor can be used in parallel or inseries.


    3. Special design in the driver-linker and prolong operation life.


    4. The output shaft adopts in tapered roller bearings thatpermit high axial and radial forces. The can offers capacities of highpressure and high torque in the wide of applications.


    5. Various kinds of flange, output shaft and oil port mounting dimension.


    Applications:

    BM hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery.


    1. An agricultural use: all combine harvesters, seeders, rotary tiller, mower, sprayer, feed mixers, ground drilling machine.


    2. fishing with: hauling machine.


    3. light industry: winding machines, textile machines, printing presses, operating with a washing machine.


    4. construction industry: rollers, cement mixers, cleaning cars.



    Main Specifications:

    TypeBMS
    BMSE
    80
    BMS
    BMSE
    100
    BMS
    BMSE
    125
    BMS
    BMSE
    160
    BMS
    BMSE
    200
    BMS
    BMSE
    250
    BMS
    BMSE
    315
    BMS
    BMSE
    375
    Geometric displacement
    (cm3 /rev.)
    80.6100.8125157.2200252314.5370
    Max. speed (rpm)cont.800748600470375300240200
    int.988900720560450360280240
    Max. torque (N·m)cont.190240310316400450560536
    int.240300370430466540658645
    peak260320400472650690740751
    Max. output (kW)cont.15.918.819.515.615.714.114.111.8
    int.20.123.523.221.218.31718.917
    Max. pressure drop (MPa)cont.17.517.517.5151412.51210
    int.2121212116161412
    peak22.522.522.522.522.52018.514
    Max. flow (L/min)cont.6575757575757575
    int.8090909090909090
    Max. inlet pressure (MPa)cont.2525252525252525
    int.3030303030303030
    Weight (kg)9.81010.310.711.111.612.312.6

    * Continuous pressure :Max. value of operating motor continuously.
    * Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
    * Peak pressure:Max. value of operating motor in 0.6 second per minute.





    Reference Brand List:


    HANJIUM+SEATONROSSWHITEPARKERSAMBOSCH
    HYDRAULICHYDRAULICCHAR LYNNTRWCROSSBREVINIREXROTH
    BMMMMOMMMGX
    MLHKJ SERIES---BGM
    BMP/BM1MPOMPMFWPTCBGMGP, GMP
    TE
    HPH SERIESDHMGRSTB
    BMR/BM2MROMRMBWRBRMGR, GMR
    HRS,T SERIESDSRETF
    MLHRW, RWW SERIESOMEW
    BMH/BM4MHOMH
    MLHHME
    HW, HWFRETG
    BMS/BM5MS, MSYOMSTGMGS, GMS
    HPR
    MLHS2000 SERIESMERE
    BMT/BM6MTOMTMGT, GMT
    MLHT6000 SERIESMJHT
    MTMTMT
    BMVMVOMVMGV, GMV
    MLHV10000 SERIES
