    M+S HKUS125 OSPC125 ON Orbital Steering Valve For David Brown Tractor 1695445M91

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : 101S
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000000 Sets Per Year
    Delivery Time : 10-15 work days
    • Product Details
    • Company Profile

    M+S HKUS125 OSPC125 ON Orbital Steering Valve For David Brown Tractor 1695445M91

    HKUS125 OSPC125 ON for David Brown tractor 1695445M91


    Hanjiu 101S series 125cc can replace OSPC 125cc and M+S HKUS 125cc


    Features:


    1. The same function of the 101 series
    2. Including integrated valve (relief valve and checkproof valve)
    3. Replace (ospc), M+S (HKU/4) series.
    4. 101S Hydraulic steering unit is widely used in the steering control system
    such as the steering system of many kinds of industrial and agricultural
    mobile machinery forklift,loader,roadroller,tractor,comebine harvester, etc.
    5. We produce the products match with the OEM number of all machines.

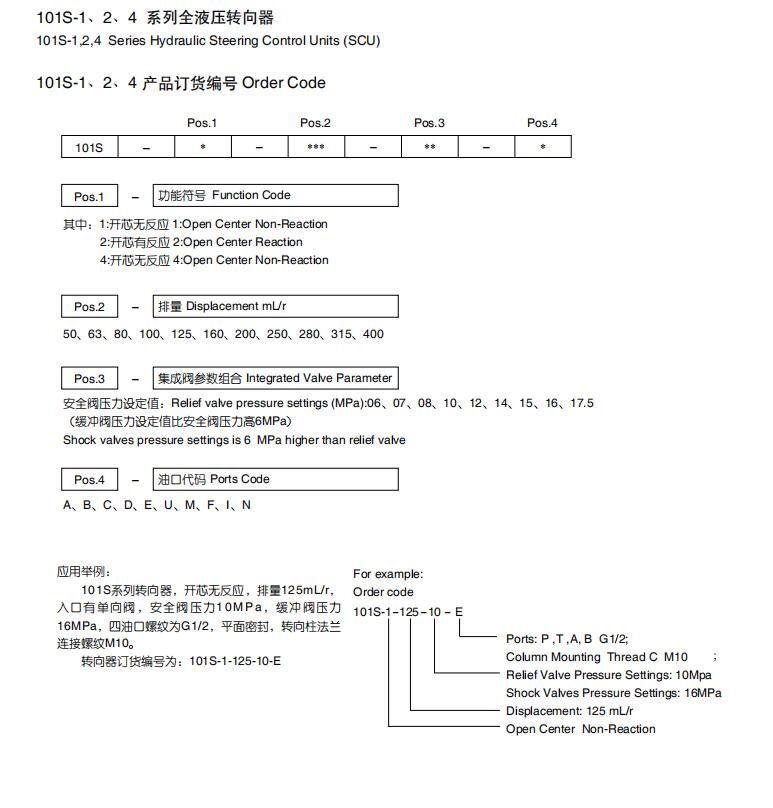

    Specifications:


    ParametersSeries: 101s similar to OSPC
    Function code1,2,41,4
    Displacement (mL/r)506380100125160200250280315400
    Rated Flow (L/min)5681012.5162025283240
    Max.input pressure(Mpa)16
    Relief Valve Pressure Settings ( MPa)06,07,08,10,12,14,15,16
    Shock Valve Pressure Settings ( MPa)12,13,14,16,18,20,21,22
    Max.cont.back pressure2.5
    Weight(kg)5.755.815.895.966.16.36.56.736.917.17.5
    Dimension L (mm)130132134137140145150156161166176





    Applications:

    Its role is to increase the power steering wheel steering transmission to the transmission mechanism and change the direction of transmission. Widely used in agricultural machinery, shipbuilding machinery, garden machinery, road maintenance machinery, forestry machinery, construction machinery and mining machinery and other low-speed heavy vehicles. With it, the driver can achieve greater steering force control with a smaller steering force, and the performance is safe and reliable, the operation is light and flexible.

    My factory specializes in designing and producing the motors and steering gear of any type, from large to small, from low to high, and so on. And can replace , Eaton, M+S series models. Products are widely used in engineering machinery, mining machinery, metallurgical machinery, petroleum machinery, agricultural machinery, injection molding machinery, fishery machinery, military engineering and other fields.
    My factory take the good faith first, quality first for the purpose, from the employee on-boarding, raw materials into the factory, from parts processing, assembly proposal until products, has a relatively perfect system of product quality. And through CE certification. Our factory is dedicated to the establishment of an internationally renowned brand, looking forward to the long-term cooperation with more demand of hydraulic products.

    Hanjiu: Hydraulic gear pump for any hydraulic system, our company uses high-end machine tools, excellence, the most humane service, manufacture and service the world, with good products and services to serve the world, welcome advice.
