    Black Precision Hydraulic Orbital Motors / Variable Displacement Hydraulic Motor BMV-800-4ADB

    Ask Lasest Price
    Brand Name : HANJIU CHINA
    Model Number : BMV-800-4ADB
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100000 sets per year
    Delivery Time : 19 work days
    • Product Details
    • Company Profile

    Black Precision Hydraulic Orbital Motors / Variable Displacement Hydraulic Motor BMV-800-4ADB

    OMV800, OMV315, OMV400, OMV500, OMV630, Orbit Hydraulic Motor BMV-800-4ADB
    BMV indroduction:


    BMV series orbit hydraulic motor adapt the advanced Gerotor gear set, design with disc distribution flow and high pressure. The unit can be supplied theindividual variant in operating multifunction in accordance with requirement of applications.This motor is a Orbital hydraulic motor, also called Low Speed High Torque type motor, also called geroler hydraulic motor, also dis valve hydraulic motor.

    It's applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery, especially fitted to lower load applications, such as plastic injection mold machine, cleaner, grass cutter,Winches, Conveyors, Slews, Sweeper Drives, Augers, Cutters, Mowers and Chippers


    Characteristics:

    This motor produced by Hanjiu Technology from China, it's a alternative orbit hydraulic motor to OMV series, to Eaton Char lynn 10000 series (10k series), also alternative with M+S MV series, and alternative with many other manufacturers from USA and European.

    Advanced manufacturing devices for the Gerotor gear set, which use low pressure of start-up, provide smooth and reliable operationand high efficiency. The output shaft adapts in tapered roller bearings that permit high axial and radial forces. Can offer capacities of high pressure and hightorque in the wide of applications. Advanced design in disc distrbution flow, which can automatically compensate in operating with high volume efficiency and long life,provide smooth and reliable operation.


    What benefit can i get?

    As it's performance is 98% near the below manufacturers, however it's price is more than 50% lower than the below manufacturers, it has been widely used in the Construction, Heavy Equipment, Farm & Agri, Mining, Metallurgical, Chemical, Transportation industries. If you sell $1,000,000 a year, you raise profit by 50%, $500,000.

    1. Hanjiu BMV-800-4ADB = Eaton Char lynn 10000 series (10k series), from USA

    2. Hanjiu BMV-800-4ADB = OMV series, from Danmark

    3. Hanjiu BMV-800-4ADB = M+S MV series, from Bulgaria

    4. we have strong ability to match OEM part no. and provide you.


    Specifications/ Technical Data:

    This Orbit hydraulic motor BMV is a big motor compare with other series like BMM(OMM,MM), BMP(OMP, MP), BMR(OMR, MR), BMH(OMH, MH), it's displacement start from 315 ml/r to 1000 ml/r, speed from 200 rpm to 630 ml/r, torque from 1110 N.m to 2400 N.m, max output from 28.6 kw to 56.0 kw, max flow from 160 L/min to 240 L/min. Below is the detail specifications of this BMV Orbit hydraulic motors.

    Main Specifications:
    TypeBMV 315BMV 400BMV 500BMV 630BMV 800BMV 1000
    Geometric displacement (cm3 /rev.)333419518666801990
    Max. speed (rpm)cont.510500400320250200
    int.630600480380300240
    Max. torque (N·m)cont.92011801460166018802015
    int.111014101760194021102280
    peak129016402050221024702400
    Max. output (kW)cont.384747403328.6
    int.465656564440
    Max. pressure drop (MPa)cont.202020181614
    int.242424211816
    peak282828242118
    Max. flow (L/min)cont.160200200200200200
    int.200240240240240240
    Weight (kg)31.832.633.534.936.538.6

    * Continuous pressure :Max. value of operating motor continuously.
    * Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
    * Peak pressure:Max. value of operating motor in 0.6 second per minute.



    How to work with Hanjiu Technology?

    Inorder to make you better understand how to work with us, here i give you the steps:

    1. discuss your demand with us first
    2. we help you to confirm the products
    3. match with our models
    4. discuss your demand quantity with us, this will help us to provide you our best offer
    5. we make a deal on the offer
    6. sign a contract
    7. you pay deposit
    8. we produce
    9. you pay balance payment after order ready for shipping
    10. dispatch order
    11. Payment terms: 30% deposit, 70% balance should be paid before shipping

    12. Shipping: by sea, by air, by train

    13. Terms: FOB, CFR, CIF

    14. Loading port: Tianjin, Qingdao, Shanghai, Ningbo, China


    What is you warranty period?

    For your further better understand what after-sale service we are offering, here i give you the details:

    1. each item supplied by 'Hanjiu' will be tested on it's testing plant at leaset twice
    2. each item supplied by 'Hanjiu' will with a quality certificate
    3. charge-free products, parts and services will be provided if any failures or defects of the contractual product in normal operation condition within the warranty period.
    4. all of our product practice protect the quality 1 year.


    How can i get more infomations?

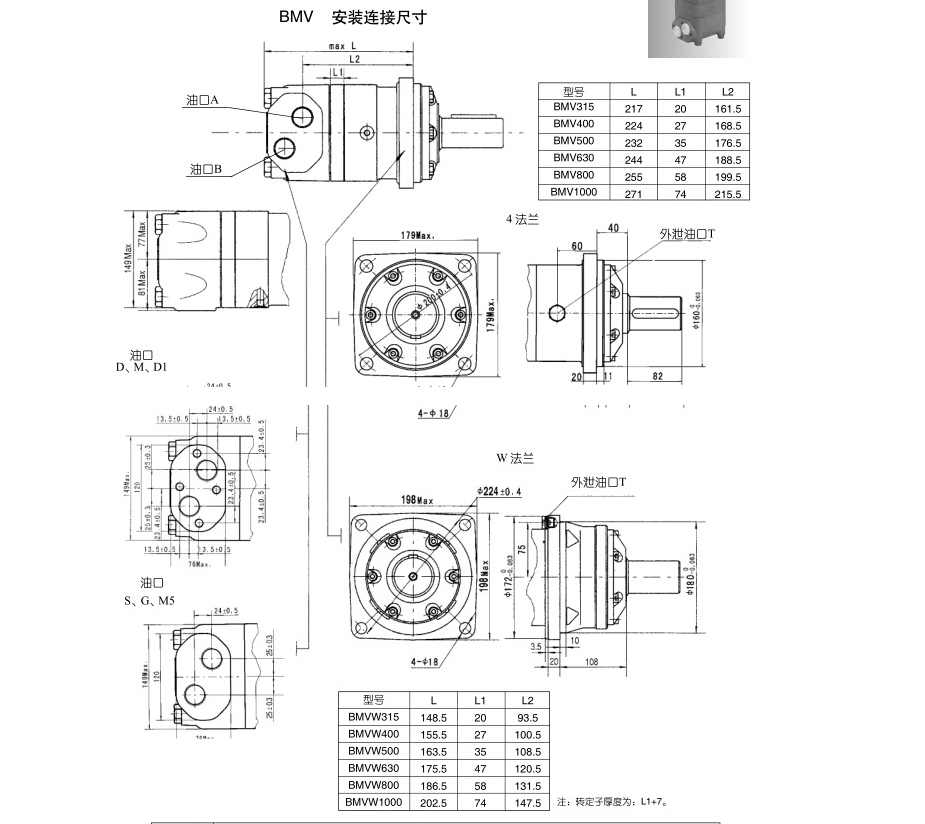

    If you want to lean more about this orbit hydraulic motor BMV, there is an example drawings attached at the buttom of this artical, please note to check.

    If you have other request on hydraulic products, please visit my website www.hjhydraulic.com, we have hundreds of hundreds hydraulic products are waiting you to review. If you need my help, pleae email to me sales03@sjzhjsm.com, or call me directly 0086-311-68123061 or whatsapp me 0086-13831101542, or skype me Alyssa-Hanjiu Hydraulic, my name Alyssa Lee, thanks.
