    High Torque Powerful Putzmeister Concrete Pump Auger Motor 750cc / Parker TF

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : BMER750
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000000 sets per year
    Delivery Time : 10-15 work days
    • Product Details
    • Company Profile

    High Torque Powerful Putzmeister Concrete Pump Auger Motor 750cc / Parker TF

    High Torque Powerful Putzmeister Concrete Pump Auger Motor 750cc / Parker TF


    Concrete PumpMotor
    PutzmeisterBMH / OMH / MH160cc,500cc,750cc
    SCHWINGBMH / OMH / MH160cc,500cc,750cc
    CIFABMH / OMH / MH160cc,500cc,750cc
    JUNJINBMH / OMH / MH160cc,500cc,750cc
    SanyBMH / OMH / MH160cc,500cc,750cc

    1. Features

    • Low internal leakage
    • High torque at low speeds
    • Large displacement volume
    • Relatively small size
    • Low noise level
    • Longer life expectancy
    • Low speed, high torque motors
    • Roller vane type drive system – offers high volumetric efficiency and long life.
    • Manufactured with high quality materials and systems to exacting standards

    2. Main Specifications

    Type

    BMER

    125

    BMER

    160

    BMER

    200

    BMER

    230

    BMER

    250

    BMER

    300

    BMER

    350

    BMER

    375

    BMER

    475

    BMER

    540

    BMER

    750

    Geometric displacement

    (cm3 /rev.)

    118156196228257296345371462540745
    Max. speed (rpm)cont.360375330290290250220200160140100
    int.490470425365350315270240195170120
    Max. torque (N*m)cont.32545053062570081090599010859801050
    int.38052560071079093010351140118012401180
    peak450590750870980112012851360126013801370
    Max. output (kW)cont.12.01515.516.017.518.017.516.514.511.58.0
    int.14.017.518.019.020.021.020.019.016.515.010.0
    Max. pressure drop (MPa)cont.20.520.520.520.520.520.520.520.517.51410.5
    int.24242424242424241917.512
    peak27.627.627.627.627.627.627.627.620.520.514
    Max. flow (L/min)cont.4560707075808075757575
    int.6075858590959590909090




    3. Applications

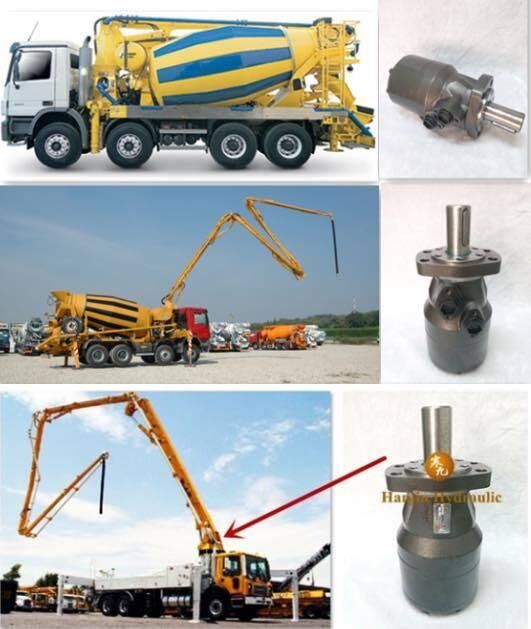

    • Concrete Pump

    • Conveyor drives

    • Rotator motors

    • Agricultural machinery

    • Wheel drives


    4. Workshop


    Our processing equipment from Germany,oil seal is high pressure oil seal,precision parts processing and strict quality control.
