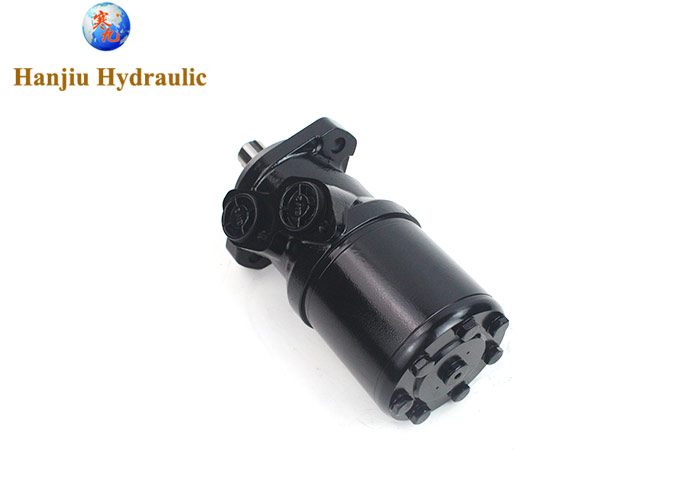

    BMR400-2-E-D-B Motor BMR Series 400cc,2 bolts mount, 1"6B Splined Shaft 1/2" Bspp Ports

    Ask Lasest Price
    Brand Name : Hanjiu
    Model Number : BMR400
    Certification : ISO9001:2015
    Price : Negotiable
    Payment Terms : T/T, Western Union,Paypal .
    Supply Ability : 100,000 units / Year
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    BMR400-2-E-D-B Motor BMR Series 400cc,2 bolts mount, 1"6B Splined Shaft 1/2" Bspp Ports


    BMR400-2-E-D-B Motor BMR Series 400cc,2 bolts mount, 1"6B Splined Shaft 1/2" Bspp Ports



    Product details:

    product typeBMR 400, OMR400, MR400, SMR400 spool valve motor
    displacement400cc
    flange2-φ13.5 Rhomb-flange pilot φ82.5x8
    shaft1"6B Splined Shaft
    oil portsG1/2 manifold mount 4-M8,G1/4 drain ports


    Main Specifications:

    Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

    TypeBMR
    BMRS
    36
    BMR
    BMRS
    50
    BMR
    BMRS
    80
    BMR
    BMRS
    100
    BMR
    BMRS
    125
    BMR
    BMRS
    160
    BMR
    BMRS
    200
    BMR
    BMRS
    250
    BMR
    BMRS
    315
    BMR
    BMRS
    375
    Geometric displacement (cm3/rev.)3651.781.5102127.2157.2194.5253.3317.5381.4
    Max. speed (rpm)cont.1085960750600475378310240190155
    int.12201150940750600475385300240190
    Max. torque (N·m)cont.72100195240300360360390390365
    int.83126220280340430440490535495
    peak105165270320370460560640650680
    Max. output (kW)cont.8.59.512.51312.512.510765
    int.9.811.2151514.514139.598
    Max. pressure drop (MPa)cont.141417.517.517.516.5131197
    int.16.517.52020202017.5151310
    peak22.522.522.522.522.522.522.52017.515
    Max. flow (L/min)cont.40506060606060606060
    int.45607575757575757575
    Weight (kg)6.56.76.977.37.688.599.5



    Recommended use:
    Wrappers, forage harvesters, spreaders
    Sweepers, sandblasters, snowblowers
    Cutters for carrots, beets, onions and others
    Leaf and branch scrapers
    Conveyor drives
    Chippers and branch shredders
    Forest winches and vehicle winches
    Orchard drill rigs and ground drill rigs






    BMR400-2-E-D-B Motor BMR Series 400cc,2 bolts mount, 1"6B Splined Shaft 1/2" Bspp Ports
