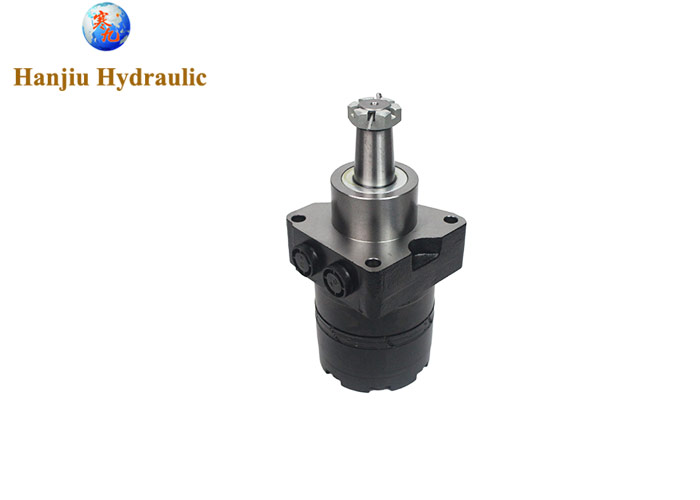

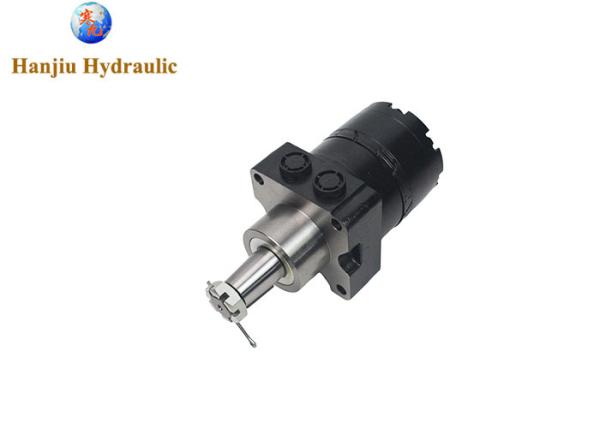

    Wheel Motor Replacement For Exmark 1-523328 Toro 103-6988 Oregon 27-500 Parker TF0240US081AADD Stens 025-503

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : BMER-3-240
    Certification : CE, ISO9001
    Price : 175 usd/pc
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, Payple
    Supply Ability : 70000 pieces per year
    Delivery Time : 45 - 55 work days
    • Product Details
    • Company Profile

    Wheel Motor Replacement For Exmark 1-523328 Toro 103-6988 Oregon 27-500 Parker TF0240US081AADD Stens 025-503


    Wheel Motor Replacement for Exmark 1-523328 Toro 103-6988 Oregon 27-500 Parker TF0240US081AADD Stens 025-503


    Quick review:

    Producttorqmotor, wheel drive motor
    Model No.BMER-2-250-WS-T31-R
    Displacement250CC
    Flange4 bolts wheel shaft, 147.6mm
    Shafttappered shaft
    Port
    7/8-14 UNF
    RotationStandard
    ColorBlack
    BrandHanjiu

    Replaces part number:
    For Exmark 1-523328 1523328
    For Toro 103-6988 1036988
    For Oregon 27-500 27500
    For Parker TF0240US081AADD
    For Stens 025-503 025503

    Application:
    Lazer Z Serial No. 102,000-370,000 52", 60" and 72" decks;
    Lazer Z HP Serial No. 160,000-370,000, 44", 48" and 52" decks, Z 500's Z Master, 2004 & Newer 60" and 72" ;
    Z 250's Z Master 742XX Series, 1999-2040, 52", 62" and 72" decks


    Specification:

    TypeBMERBMERBMERBMERBMERBMERBMERBMERBMERBMERBMER
    125160200230250300350375475540750
    Geometric displacement (cm3/rev.)118156196228257296345371462540745
    Max. speed (rpm)cont.360375330290290250220200160140100
    int.490470425365350315270240195170120
    Max. torque (N•m)cont.32545053062570081090599010859801050
    int.38052560071079093010351140118012401180
    peak450590750870980112012851360126013801370
    Max. output (kW)cont.12.015.015.516.017.518.017.516.514.511.58.0
    int.14.017.518.019.020.021.020.019.016.515.010.0
    Max. pressure drop (MPa)cont.20.520.520.520.520.520.520.520.517.51410.5
    int.24242424242424241917.512
    peak27.627.627.627.627.627.627.627.620.520.514
    Max. flow (L/min)cont.4560707075808075757575
    int.6075858590959590909090


    New Design Parker TF0250 wheel mount replacement LSHT motor BMER with Valve cavity 4
