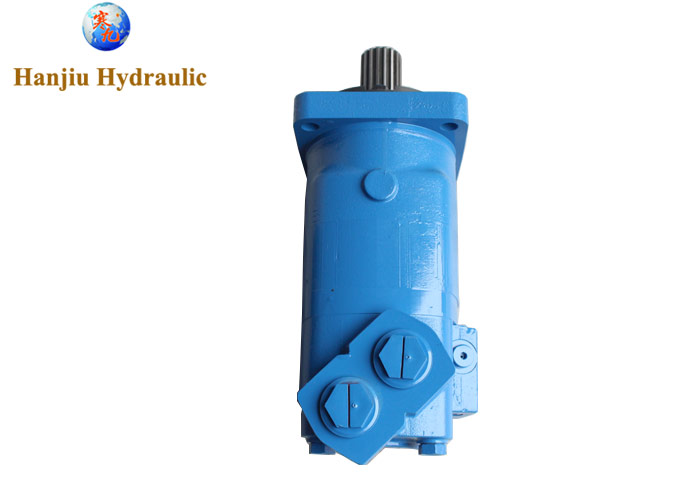

    Eaton 6-200ACAS-E9035 Hydraulic High Torque Motor Replacement Drilling Rig HD500-06003

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : BMK6-200
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, Payple
    Supply Ability : 300000 pieces per year
    Delivery Time : 10 - 15 work days
    • Product Details
    • Company Profile

    Eaton 6-200ACAS-E9035 Hydraulic High Torque Motor Replacement Drilling Rig HD500-06003

    Eaton 6-200ACAS-E9035 hydraulic high torque motor replacement drilling rig HD500-06003


    Drilling Rig and Drifter spare parts

    Hydraulic Rotation Motor

    Eaton 6000 series motors, charlynn orbit motor

    for Ingersollrand & Furukawa parts


    6-200ACAS-E9035==BMK6-200

    Main Specification

    Type

    BMK6

    200

    BMK6

    250

    BMK6

    315

    BMK6

    400

    BMK6

    500

    BMK6

    630

    BMK6

    800

    BMK6

    1000

    Geometric displacement
    (cm3 /rev.)
    195.6246.1311.6391.3490.8623802.4981.6
    Main speed(rpm)

    cont.

    765

    610480382304240186152
    int.865830690570455360280230
    Max torque N.M

    cont.

    56571092011601445148015801675
    int.8401080132516251880189018801860
    Max pressure drop (Mpa)cont.202020202017.51414
    int.3030303027.522.515.514
    Weight (kg)26.326.827.32828.829.630.532





    the Hydraulic Motor BMK6 Series is a powerful and efficient hydraulic motor that offers exceptional performance and reliability. Its compact design, high torque density, and energy efficiency make it a popular choice across various industries. Whether in agriculture, construction, heavey equipments or any other field that requires hydraulic power, the Motor BMK6 is a reliable and cost-effective solution.
