    Dcv 200 6 Levers Manual Control Hydraulic Directional Control Valve Max Pressure 350 Bar

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : DCV200/6
    Certification : CE
    Price : Contact the seller to ask
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 300000 sets per year
    Delivery Time : 19 work days
    • Product Details
    • Company Profile

    Dcv 200 6 Levers Manual Control Hydraulic Directional Control Valve Max Pressure 350 Bar

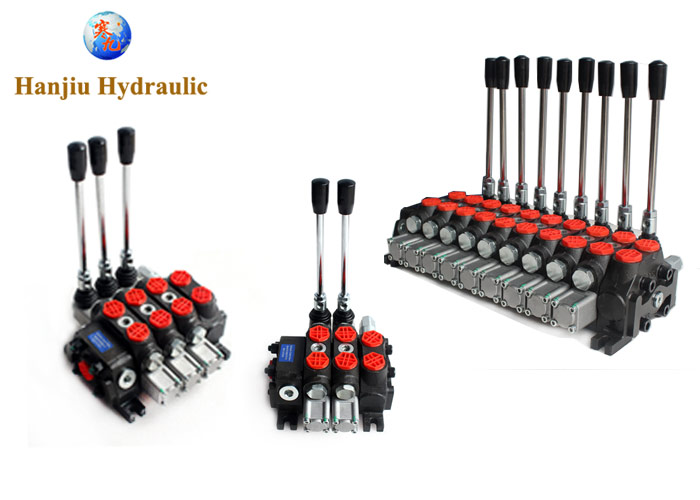

    DCV 200 6 levers Manual control hydraulic Directional Control Valve, max pressure 350bar


    Norminal Flow
    200 L/min
    Max Flow
    52.5 GPM
    Max Pressure
    350 bar/5076PSI
    Control Type
    manual ( pneumatic, hydraulic, electro-hydraulic available )
    Allowed back pressure
    ≤1 mpa
    Oil port size
    customizable
    Operating range15-75MM2/S
    Viscositymin 12 MM2/S
    max 400 MM2/S
    Structuresectional 1-12sections

    Description
    Introducing the DCV200 hydraulic Directional Control Valve, designed to efficiently manage high-pressure hydraulic systems used in various industries including drilling machines and sanitation applications.

    This valve comes with auxiliary valves such as over-load valve, anti-cavitation valve, and combined valve, to ensure smooth operation and prevent damage to your system. With various control types including manual, pneumatic, electro-pneumatic, and electro-hydraulic, the DCV200 valve provides you with the flexibility to choose the control type that best fits your specific needs.

    The valve’s sectional structure makes it easy to install and maintain, while the carry-over port serves as a hydraulic source for other parts, providing a reliable and convenient solution for your hydraulic system needs. Choose the DCV200 hydraulic Directional Control Valve for a dependable and efficient solution for your high-pressure hydraulic system.





    oil ports

    BSP ThreadMetric threadUS standard UNF threadUS standard NTP thread
    codeThread sizecodeThread sizecodeThread sizecodeThread size
    G04G1/4M16M16X1.5U105/8-12UNFN06NPT3/8
    G06G3/8M18M18X1.5U123/4-16UNFN08NPT1/2
    G08G1/2M20M20X1.5U147/8-14UNFN12NPT3/4
    G12G3/4M22M22X1.5U161-12UNF
    M27M27X2

    spool functional



    More DCV200 Valves



    RELATED PRODUCTS:


    We offer a variety of monoblock and sectional directional control valves for use in agricultural, marine, industrial, construction sectors.


    Hydraulic directional control valve
    *** for high pressure hydraulic system, such as drilling machine, sanitation, etc.
    *** manual, joystick, cable, pneumatic, solenoid, electro-pneumatic, electro-hydraulicv
    *** monoblock, sectional
    *** 20 liters - 200 liters, 1 spool to 12 spool


    No matter what hydraulic directional control valve you are looking for, give us a call with your inquriy
