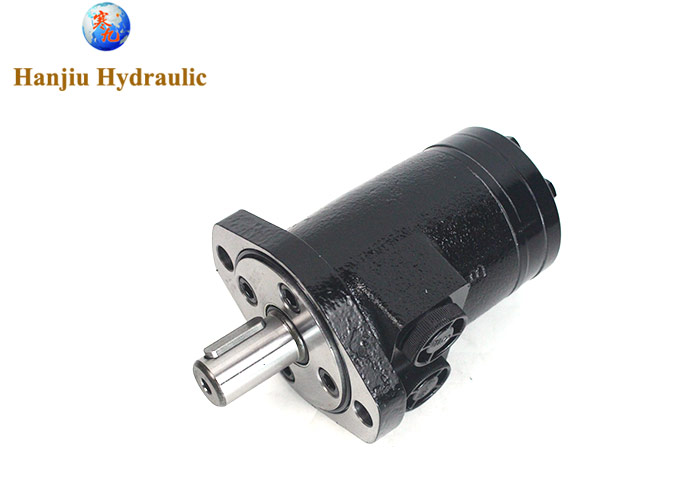

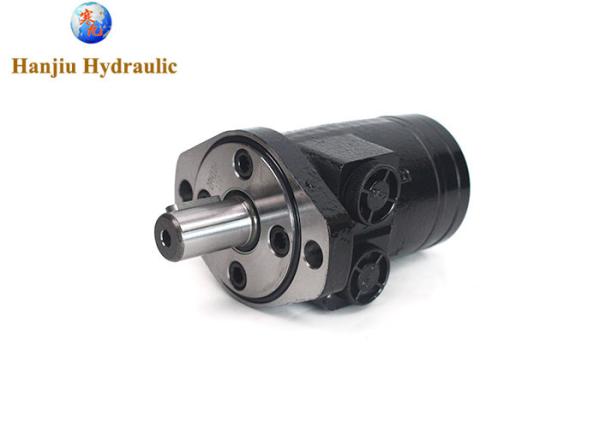

    Charlynn 101-1195-009 Hydraulic Gerotor Motor 100cc 2 Bolts Flange With Straight Key Shaft High Torque Motor


    charlynn 101-1195-009 hydraulic gerotor motor, 100cc, 2 bolts flange with straight key shaft high torque motor


    HANJIU Technology supply the BMPH series motors, code BMPH-100-H2R-A-G, matching Eaton charlynn H series 101-1195-009

    with needle bearing , high torque motor,and flange rotate 90 degrees


    Details:
    - Displacement: 100cc
    - Flange H4 Ø82.55mm
    - Shaft: Ø25.4mm,woodruff key φ25.4X6.35,with crosshole ∅10.3
    - Ports: G1/2 (A & B), G1/4(T)


    Geometric displacement (cm3/rev.)100cc
    Max. speed (rpm)cont.615
    int.770
    Max. torque (N•m)cont.182
    int.227
    peak264
    Max. output (kW)cont.11.0
    int.13
    Max. pressure drop(MPa)cont.14
    int.17.5
    peak22.5
    Max. flow (L/min)cont.60
    int.75
    Weight (kg)5.9




    • Benefits:
      • High efficiency
      • Powerful compact
      package
      • Design flexibility
      • Extended leak-free
      performance
      Applications:
      • Agricultural augers,
      harvesters, seeders
      • Car wash brushes
      • Food processing
      • Railroad maintenance
      equipment
      • Machine tools
      • Conveyors
      • Industrial sweepers and
      floor polishers
      • Saw mill works
      • Turf equipment
      • Concrete and asphalt
      equipment
      • Skid steer attachments
    EATON Hydraulic Motors
    • J (129-)
    • H (101-)
    • S (103-)
    • T (158-)
    • W (162-)
    • 2000 (104-, 105-, 106-, 193-)
    • 4000 (109-, 110-, 111-)
    • 6000 (112-, 113-, 114-)
    • 10,000 (119-, 120-, 121-)
