    Hydraulic Drive Motor 96257GT For Genie Scissor Lift Brake GS 2032 GS 3232 GS2632

    Ask Lasest Price
    Brand Name : HANJIU CHINA
    Model Number : BK10
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, Payple
    Supply Ability : 100000 pieces per year
    Delivery Time : 25 - 35 work days
    • Product Details
    • Company Profile

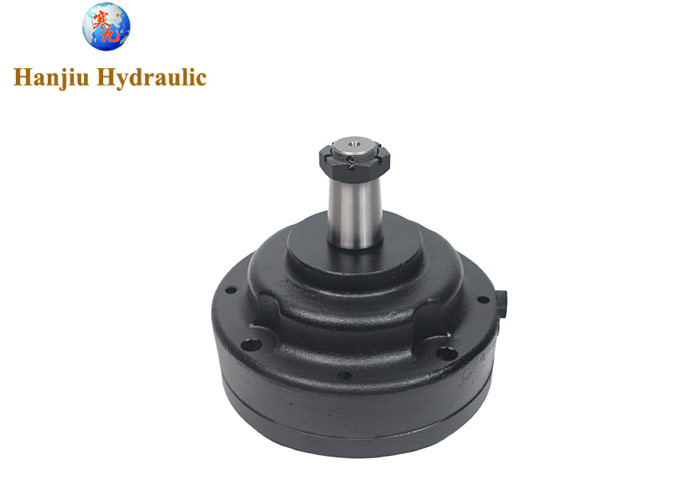

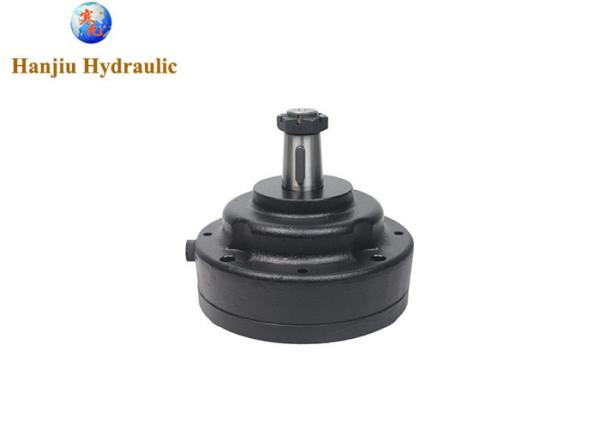

    Hydraulic Drive Motor 96257GT For Genie Scissor Lift Brake GS 2032 GS 3232 GS2632


    Hydraulic Drive Motor 96257GT for Genie Scissor Lift Brake GS2032 GS3232 GS2632


    Hanjiu Technology supply the BK10 series hydraulic brake motor for Genie Scissor Lift

    OEM quaity, fast leading time


    Specifications/ Technical Data:

    Holding Torque 10,000 in.lbs.
    Release Pressure 400 PSI
    Max Pressure 3,000 PSI
    Release Volume 0.7 cu.in.
    Speed 250 RPM max.
    Shaft 1-3/8" tapered w/threaded end
    Port SAE 4
    Mount 4 holes on 7" B.C. w/4" pilot
    Size 7-7/8" dia. x 2"
    Shpg. 40 lbs. lbs.


    Reliable and genuine hydraulic components for your construction equipment.

    We offer various models from known brands as Haulotte, JLG, Skyjack, Genie, Snorkel, and many others.


    * The output shaft adopts the same heavy duty roller bearing in front and behind, which is bigger ability on radial load.
    * It adopts optimized disc brake piece and spring load, for reliable braking and good endurance.
    * Optimizing piston and loading mechanism, to provide the minimum dimension of wheel connection method.
    * With double braking release port, in order to discharge the braking cylinder gas or external brake fluid.
    * Big braking torque, suitable for static braking.
    Main Specification
    ItemBK10-1BK10-2
    Min. Static Torque [Nm]11501700
    Release Pressure [MPa]2.82.8
    Max. Release Pressure [MPa]2121
    Max. Speed [rpm]300300
    Release Volume [cm3 ]1212
    Oil Volume [cm3 ]100-120100-120
    Max. Pressure of
    Lubrication oil port [MPa]
    0.050.05
    Weight [kg]1820



    HANJIU is an expert in hydraulic motors.We have multipal hydraulic wheel motors for different types of Scissor Lift ,platforms.
    HANJIU orbit motors have complete specifications, fast manufacturing, reasonable prices and fine quality.
    HANJIU enthusiastically looks forward to working for all the hydraulic distributors and equipment manufacturers
