Brand Name : | Hanjiu |
Model Number : | Hydraulic Gear Pump |
Certification : | CE |
Price : | Negotiable |
Payment Terms : | T/T, Western Union,Paypal . |
Supply Ability : | 100,000 units / Year |
Delivery Time : | 10-15 working days |
/ FIAT / FORD / Tractor Gear Pump A42XP4MS
Our CBN series gear pumps are widely used to replace various imported brands such as Eaton, Charing, , etc.
Technical parameters
Main Specifications:
F1 | F2 | ||||
Displacement (ml/r) | Inlet Port | Out Port | Displacement (ml/r) | Inlet Port | Out Port |
06 | 47.6x22.2 φ23 | 47.6x22.2 φ20 | 06 | 52.4x 26.2 φ23 | 7.6x22.2 φ20 |
08 | 08 | ||||
10 | 10 | ||||
12 | 12 | ||||
14 | 14 | ||||
16 | 16 | ||||
18 | 52.4x26.2 φ26 | 18 | 52.4x26.2 φ26 | ||
20 | 20 | ||||
23 | 23 | ||||
25 | 25 | ||||
27 | 27 | ||||
30 | 30 | ||||
32 | 32 | ||||
36 | 36 | ||||
40 | 40 |
S | FS | ||||
Displacement (ml/r) | Inlet Port | Out Port | Displacement (ml/r) | Inlet Port | Out Port |
06 | M22x1.5-6H | M18x1.5-6H | 06 | 52.4x26.2 φ26 | M22x 1.5-6H |
08 | 08 | ||||
10 | 10 | ||||
12 | 12 | ||||
14 | 14 | ||||
16 | 16 | ||||
18 | M33x2-6H | M27x2-6H | 18 | M33x 2-6H |
hanjiu Gear Pump Features:
1. Low noise and long service life
2. Application of high strength aluminum alloy materials, light weight, low installation labor intensity
3. Input shaft types: key,rectangular spline,involute spline and woodruff
4. Connections types for the inlet and outlet ports: thread or flange etc.
5. Axial gap automatic compensation mechanism keeps high volumetric efficiency
Applications:
This series pumps are widely used in tractors, reapears, construction machinery, forklift, sanitation trucks and other hydraulic systems, etc.
Hanjiu technology co., LTD. Is an enterprise specializing in the
production of BM series cycloid hydraulic motor, BZZ full hydraulic
steering gear, hydraulic gear pump, FK combination valve block and
other hydraulic components. The products are widely used in
engineering machinery, mining machinery, metallurgical machinery,
petroleum machinery, agricultural machinery, injection molding
machinery, fishery machinery military engineering and other fields.

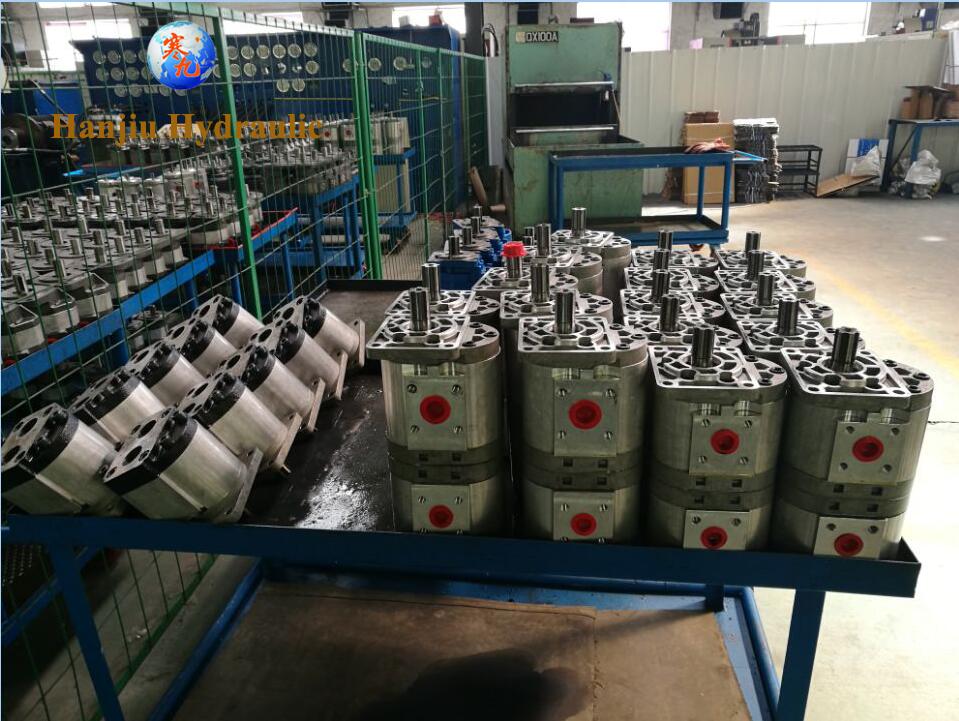

Our company has many sets of imported equipment and advanced
production technology, has dozens of high-quality engineering and
technical personnel, and equipped with its own research and
development team, with strong technical force to ensure product
quality. We have a complete set of product quality assurance system
from employees, raw materials entering the factory, parts
processing, equipment testing and product delivery. With high
quality, friendly price and considerate service, the products are
favored by users at home and abroad. The company passed the
iso9001:2008 quality management system certification in 2013.
![]() |
