    Parker TB Series Motor TB0195 SAE A Flange G1/2 BSPP Ports Spline 6B Shaft - Low Speed High Torque Motor

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : BME2-200-HD-S-R
    Certification : CE
    Price : 110
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 10000 pieces per year
    Delivery Time : 10 - 15 work days
    • Product Details
    • Company Profile

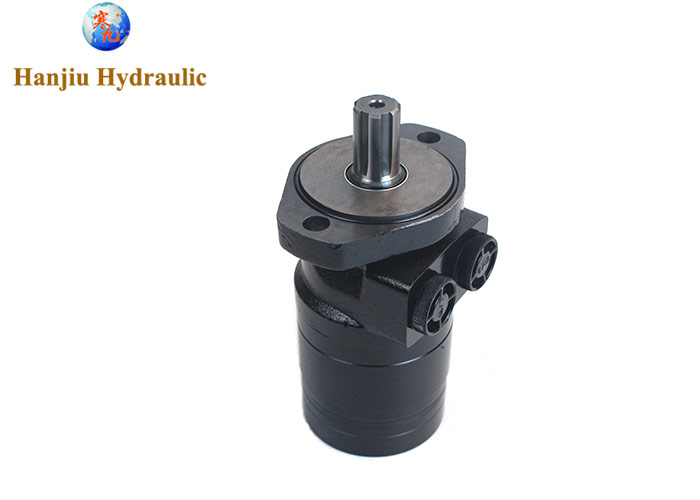

    Parker TB Series Motor TB0195 SAE A Flange G1/2 BSPP Ports Spline 6B Shaft - Low Speed High Torque Motor


    Parker TB series motor TB0195,SAE A flange, G1/2 BSPP ports, spline 6B shaft - Low Speed High Torque Motor


    Quick review:

    Model number: BME2-200-HD-S-R
    Displacement:200 ml/r
    Speed, 229-289 rpm
    Torque, 382-520 Nm
    Output, 9-15.7 Kw
    Pressure Drop, 14 - 29 MPa
    Flange, square mount
    Shaft, 25.4mm key shaft with hole
    Rotation, CCW
    Features, suit Parker TB0195AW110AAAA


    Here is it's technical details:


    TypeBME2BME2BME2BME2BME2BME2BME2BME2BME2BME2BME2
    6580100125160200230250295315375
    Geometric displacement (cm3 /rev.)66.881.3101.6127157.2193.6226257287.8314.5370
    Max. speed (rpm)cont.667543439350283229247216196178152
    int.842689553441355289328287254235199
    Max. torque (N•m)cont.126157191245307382378381393448439
    int.176215268335422520528543547587613
    Max. output (kW)cont.8.38.87.98.98.999.99.38.787.6
    int.13.914.413.514.115.615.717.916.515.614.314
    Max. pressure drop (MPa)cont.141414141414121110109
    int.19191919191916515.514.513.512.5
    peak2020202020201818171616
    Max. flow (L/min)cont.4545454545455757575757
    int.5757575757577575757575





    Orbital Motor Advantages


    1. Large output torque, suitable for heavy-duty working conditions

    The hydraulic motor can maintain a constant speed and torque output for a long time, making it suitable for applications that require a continuous and stable output. This is especially important in industrial environments where precision and reliability are critical.


    2. Explosion-proof model has high safety to use

    The hydraulic motor is fully enclosed and can be used safely in dust, wet (even underwater), combustible environment, and is much more reliable than explosion-proof (flameproof) motors.


    3. Safe and reliable to use, long life

    Properly maintained hydraulic systems are known for their long service life. This extended service life is especially valuable in continuous operating applications, where minimizing downtime and maintenance requirements is critical to improving operational efficiency.


    4. Flexible control, can be operated from a distance

    Hydraulic motors provide excellent control of speed and direction, which is essential for applications that require precise motion and positioning, such as robotics and CNC machines. Their ability to maintain a stable output improves the accuracy of these systems. The hydraulic system can be operated remotely, which is advantageous in situations where access to the machine is limited or dangerous. This feature enhances security and enables greater control flexibility.


    5. High efficiency

    Hydraulic motors are known for their high efficiency, which means they convert a large percentage of hydraulic energy into mechanical work. Maintaining this efficiency even during continuous operation helps minimize energy waste and operating costs.


    In addition to the above common advantages, the hydraulic motors produced by Hanjiu Technology also have many unique advantages, our hydraulic motors are smaller and have a longer life in extreme environments. We offer services for walking, steering, power transmission and lifting systems, and we welcome you to discover more individual hydraulic motor solutions.
