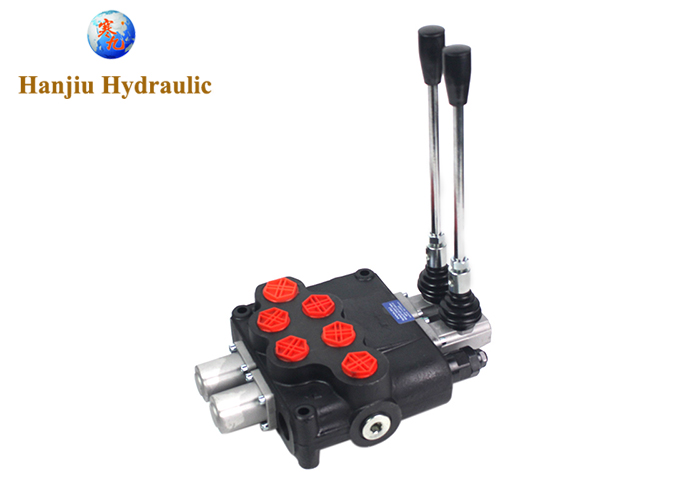

P120 Directional Control Valve, 120 liter monoblock control valve, one spool , G 1" , open center spool

Quick review:

The hydraulic distributor Р120 is used for switching on/off and controlling of the working fluid between head flow generators (hydraulic pumps), head flow consumers (hydraulic cylinders, motors, etc.), and the tanks of hydraulic systems of mobile machines (electrical and diesel forklifts, excavators, auto-cranes, etc.).

compatible with P120 A1 GKZ1 | P120-A1-GKZ1 | P120A1GKZ1

Nominal Flow Rate 120 l/min
Monimal Working Pressure 250 Bar
Max. Working Pressure 300 Bar
Tank Port Pressure 50 Bar Max
Ports P-A-B 1″ BSPP
Ports T-N 1″ BSPP
1 – 4 Spools available

Directional control valves are one of the core elements in a hydraulic system. They help directing the fluid to different components such as hydraulic cylinders or motors. Directional control valves perform three functions: Stop fluid flow, Allow fluid flow, Change direction of fluid flow.

There is a part called «spool» inside control valve which can be operated mechanically or electrically. The movement of the spool lets oil flow or blocks the oil flow in other words it controls the movement of fluid. Hydropack provide monoblock directional control valves with different capacities and spool control options.

About Hanjiu:

Hanjiu valves are compatible with Italian & Bulgaria makes, they are available as follows:

*** monoblock, sectional
*** for high pressure hydraulic system, such as drilling machine, sanitation, etc.
*** manual, joystick, cable, pneumatic, solenoid, electro-pneumatic, electro-hydraulic
*** 40 liters - 200 liters, 1 spool to 12 spool

Monoblock valve has a normal pressure of 250 bar, more used in agriculture and light industry
Sectional valve belongs to the high-pressure valve 350 bar, more used in the field of heavy machinery

Contact us to talk your needs

Shijiazhuang Hanjiu Technology Co.,ltd. is a professional manufacturer of industrial hydraulic components, located in China - Hebei City. Since 1995, Hanjiu focused on the development and production of full series of hydraulic components, orbit motors, steering orbitrols, directional control valves.

Our products include: GEROLER and GEROTOR motors, hydraulic steering units, directional control valves. More than 50 series, 2000 types. Personalized products and services to provide customers with a significant advantage. Due to the high quality of our products and reliable performance, they are widely used in mobile, industrial, fluid power, dynamic, agricultural, construction, marine, automation, transport, sanitary, etc.

Hanjiu Technology brings together the world's top professional talent and technology, has a highly qualified international personnel. Set from software development to hardware design, system testing, technical services are completed by professional and technical personnel. We have R & D base in Hebei, well-known institutions of higher learning and research institutions at home and abroad, work closely with national patent applications for 63, a number of the core technological achievements and technical indicators at the international advanced level.

To ensure the quality and stability of the machine, we use the most advanced production and testing equipment to check the quality and performance of our hydraulic motors and steering units and valves in each production step to ensure our hydraulic components perfect quality and stable performance.

We provide customers with affordable, high-quality hydraulic components. In order to achieve the advantages of Asia, the full benefit in terms of quality and cost, procurement of key machine from Germany, and the production and manufacturing in China. We have the best supply chain in China and parts manufacturers, and a solid record of quality and innovation, to prove that our 20+-year performance of the hydraulic components

Quality product performance and good reputation, our products are not only successful sales in China, and have been exported to more than 120 countries and regions in the world, including: Germany, Japan, Italy, Spain, Poland, Russia, Belarus, South Korea, Turkey, Egypt, Brazil, Argentina, Chile, India, Australia, the United Arab Emirates, Saudi Arabia, USA, Mexico and other countries, the products are subject to a great welcome and praise.

Our goal is simple: to sell the best hydraulic motors, steering units, valves, components at the best prices, and provides industry-leading customer service. We personally get to know each of our customers, and we know how to discover the most valuable part of our business is Perfect Hydraulics, to help others achieve their goals.

For more detailed information on our hydraulic components, please do not hesitate to contact us! We welcome your inquiries, and look forward to working with you.
