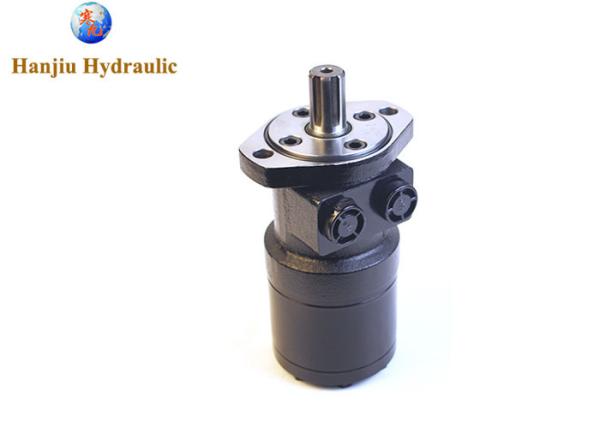

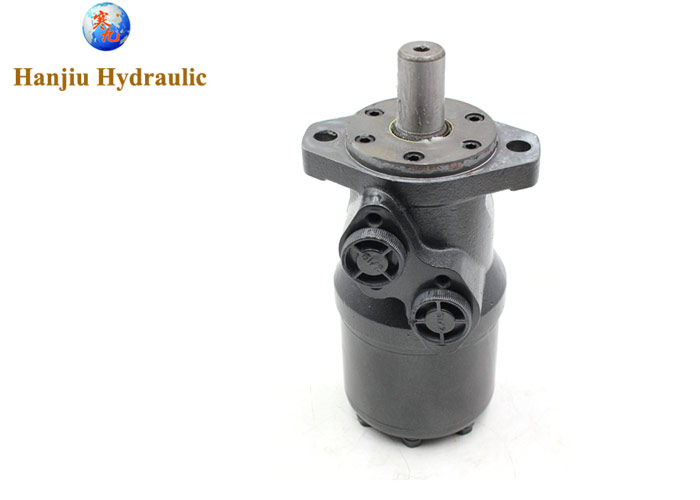

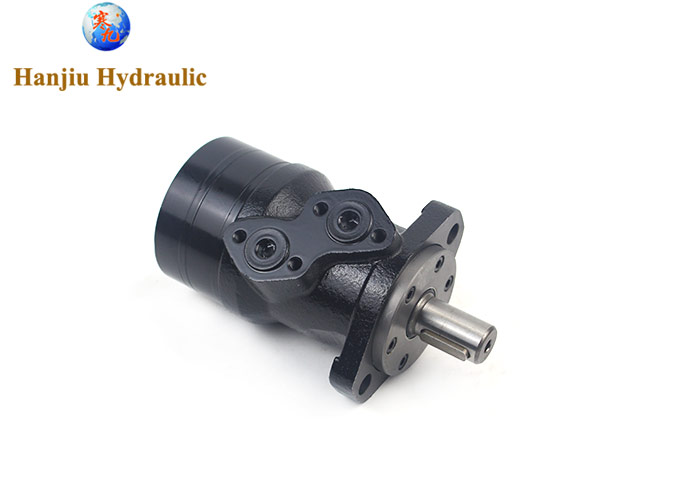

Low Speed High Torque Motors BMRS Motors Charlynn S Series motor, SPLINED SHAFT, NPT PORTS

Features:

• Shaft: 1" Spline teeth, SAE 6B
• Flange: SAE "A" 2-Bolt Mount
• Ports: 1/2" NPTF
• Drain: 7/16 - 20 UNF
• Corrosion-resistant Black Paint

Technical Specifications for BMRS-315 H2-S-P:

• Displacement: 19.37 in³/rev (317.5 cm³/rev)
• Max Speed: 190 rpm (cont) / 240 rpm (int)
• Max Torque: 390N.m (cont) / 535N.m (int)
• Max Differential Pressure: 9mpa (cont) / 13mpa (int)
• Max Flow: 60.0 l/min (cont) / 75.0l/min (int)

Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

The rail hydraulic motor adopts a column-mounted stator and rotor design using roller bearings and track dynamics, which has higher oil distribution accuracy and mechanical efficiency. Rolling bearing design, can withstand higher lateral force, imported shaft seal design, withstand high back pressure, can be used in series and parallel with forward and reverse conversion direction is convenient, and the speed is stable. It has a variety of oil ports, output shafts, flanges and other connection forms.

Shijiazhuang Hanjiu Technology Co., Ltd., which is a professional manufacturer specializing in the production of BM series cycloid hydraulic motor and BZZ steering gear, its factory specializes in designing and producing any type of motor and steering gear required by customers, from large to small, from low displacement to high displacement. It can also replace Danfoss, Eaton, M+S series models.

Rail hydraulic motors are widely used in agricultural machinery, fishery machinery, plastic industry, mining and construction machinery, transmission and lifting equipment, etc. Ideal for low load applications such as plastic injection molding machines, cleaners, lawn mowers, winches, conveyors, slewing devices, cleaner drives, augers, cutters, lawn mowers and chippers. High-speed rotation is stable, small and lightweight, can be directly connected to the working machine, adapt to a variety of Iowa speed heavy-duty facilities.

Shijiazhuang Hanjiu Technology Co., Ltd. adheres to the tenet of integrity first and quality first. From the position of employees to raw materials, to factories, from parts processing and assembly consulting to product delivery, there is a relatively complete product quality system. And through CE certification, committed to establishing an international well-known brand, looking forward to long-term cooperation with more orbital hydraulic product demanders.

Shijiazhuang Hanjiu Technology Co.,ltd. is a professional manufacturer of industrial hydraulic components, located in China - Hebei City. Since 1995, Hanjiu focused on the development and production of full series of hydraulic components, orbit motors, steering orbitrols, directional control valves.

Our products include: GEROLER and GEROTOR motors, hydraulic steering units, directional control valves. More than 50 series, 2000 types. Personalized products and services to provide customers with a significant advantage. Due to the high quality of our products and reliable performance, they are widely used in mobile, industrial, fluid power, dynamic, agricultural, construction, marine, automation, transport, sanitary, etc.

Hanjiu Technology brings together the world's top professional talent and technology, has a highly qualified international personnel. Set from software development to hardware design, system testing, technical services are completed by professional and technical personnel. We have R & D base in Hebei, well-known institutions of higher learning and research institutions at home and abroad, work closely with national patent applications for 63, a number of the core technological achievements and technical indicators at the international advanced level.

To ensure the quality and stability of the machine, we use the most advanced production and testing equipment to check the quality and performance of our hydraulic motors and steering units and valves in each production step to ensure our hydraulic components perfect quality and stable performance.

We provide customers with affordable, high-quality hydraulic components. In order to achieve the advantages of Asia, the full benefit in terms of quality and cost, procurement of key machine from Germany, and the production and manufacturing in China. We have the best supply chain in China and parts manufacturers, and a solid record of quality and innovation, to prove that our 20+-year performance of the hydraulic components

Quality product performance and good reputation, our products are not only successful sales in China, and have been exported to more than 120 countries and regions in the world, including: Germany, Japan, Italy, Spain, Poland, Russia, Belarus, South Korea, Turkey, Egypt, Brazil, Argentina, Chile, India, Australia, the United Arab Emirates, Saudi Arabia, USA, Mexico and other countries, the products are subject to a great welcome and praise.

Our goal is simple: to sell the best hydraulic motors, steering units, valves, components at the best prices, and provides industry-leading customer service. We personally get to know each of our customers, and we know how to discover the most valuable part of our business is Perfect Hydraulics, to help others achieve their goals.

For more detailed information on our hydraulic components, please do not hesitate to contact us! We welcome your inquiries, and look forward to working with you.
