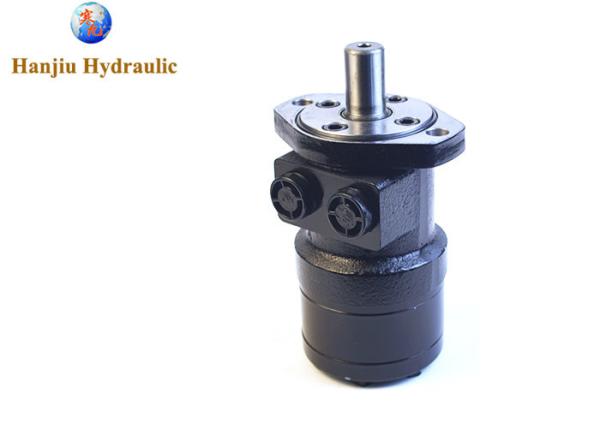

LSHT HYDRAULIC MOTOR - 11.87 IN³/REV - SAE "A" 2-BOLT - 1" WOODRUFF - NPT PORTS - BMRS-200-H2-K-P

Features:

• Shaft: 1" Woodruff Key
• Flange: SAE "A" 2-Bolt Mount
• Ports: 1/2" NPTF
• Drain: 7/16 - 20 SAE
• Corrosion-resistant Black Paint

Technical Specifications for BMRS-200 H2-K-P:

• Displacement: 11.87 in³/rev (194.5 cm³/rev)
• Max Speed: 310 rpm (cont) / 385 rpm (int)
• Max Torque: 3186 in•lbf (cont) / 3894 in•lbf (int)
• Max Differential: 1885 psi (cont) / 2538 psi (int)
• Max Flow: 15.85 gpm (cont) / 19.81 gpm (int)

Drop-In Replacement for:

• Char-Lynn 103-1029

Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
