    LSHT Torqmotor Hydraulic Motor TG0195 Series Modified SAE A 6 Bolt TG0195ES080AANT

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : TG0195
    Certification : CE
    Price : Contact the seller to get a quote
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 10000 pieces per year
    Delivery Time : 55 work days
    • Product Details
    • Company Profile

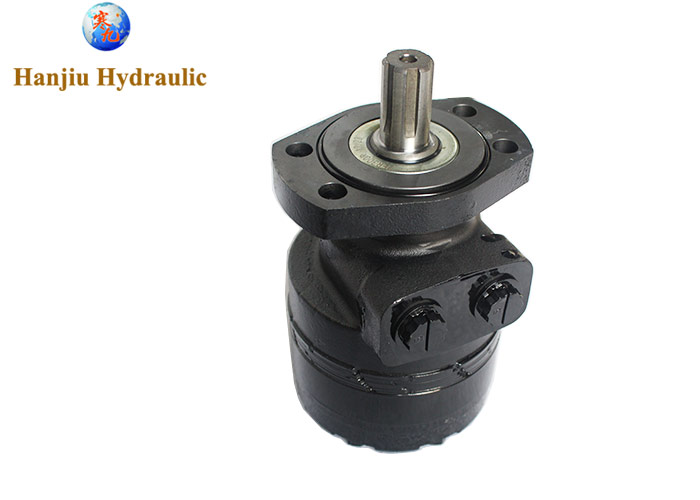

    LSHT Torqmotor Hydraulic Motor TG0195 Series Modified SAE A 6 Bolt TG0195ES080AANT

    LSHT Torqmotor TG0195 Series Modified SAE A 6 Bolt 1 1/4”Tapered Shaft TG0195ES080AANT

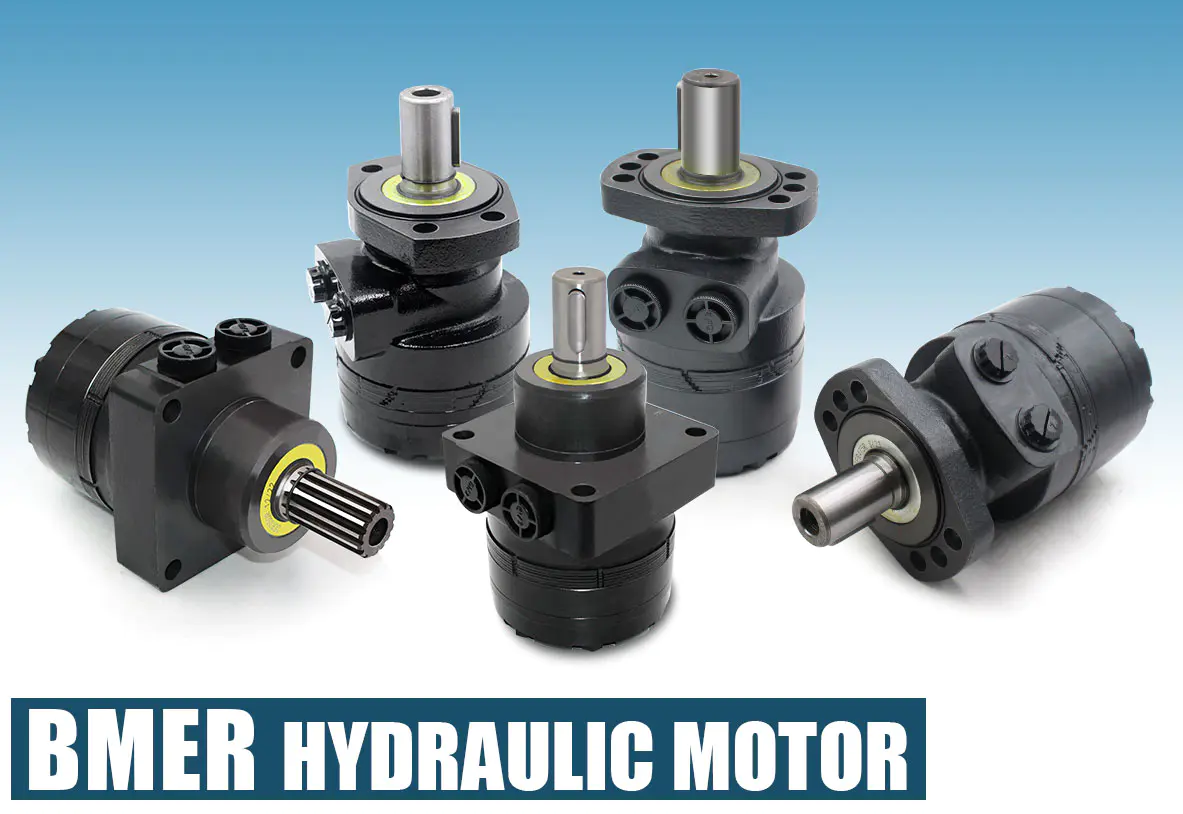

    HANJIU supply the LSHT Torqmotors BMER Series motors matching Parker TG series motors, the same function,

    same specification, 100% interchangeable.


    Details specifications


    Series:TG
    Shaft:1 1/4”Tapered shaft,31.75mm
    Rotation:Reverse Timed
    Manifold
    Displacement (cm3/rev):0195
    Mounting:6bolts Manifold Standard
    Geometric Displacement:195cm3/rev (11.9 in3/rev)
    Maximum Speed:477 rev/min
    Maximum Oil Flow (continuous / intermittent):76 lpm (20 gpm) / 95 lpm (25 gpm)
    Max. Differential Pressure (continuous / intermittent):207 bar (3000 PSID) / 276 bar (4000 PSID)
    Maximum Supply Pressure:300 bar (4350 PSIG)
    Maximum Torque - Continuous / Intermittent:556 Nm (4919 lb-in) / 753Nm (6663 lb-in)
    Maximum Performance:33 KW (45HP)
    Minimum Starting Torque - Continuous / Intermittent:451Nm (3989 lb-in) / 611 Nm (5408 lb-in)

    Main Specifications:

    Type

    BMER

    125

    BMER

    160

    BMER

    200

    BMER

    230

    BMER

    250

    BMER

    300

    BMER

    350

    BMER

    375

    BMER

    475

    BMER

    540

    BMER

    750

    Geometric displacement

    (cm3 /rev.)

    118156196228257296345371462540745
    Max. speed (rpm)cont.360375330290290250220200160140100
    int.490470425365350315270240195170120
    Max. torque (N*m)cont.32545053062570081090599010859801050
    int.38052560071079093010351140118012401180
    peak450590750870980112012851360126013801370
    Max. output (kW)cont.12.01515.516.017.518.017.516.514.511.58.0
    int.14.017.518.019.020.021.020.019.016.515.010.0
    Max. pressure drop (MPa)cont.20.520.520.520.520.520.520.520.517.51410.5
    int.24242424242424241917.512
    peak27.627.627.627.627.627.627.627.620.520.514
    Max. flow (L/min)cont.4560707075808075757575
    int.6075858590959590909090





    PARKER Hydraulic Motors

    TB
    TE
    TF
    TG
    TJ



    Hanjiu Technology provides high-quality hydraulic motors for various customers, and is also capable of providing a complete set of hydraulic solutions. Our hydraulic motors are known for their reliable high power density, modular and economical design, even under the most extreme conditions, the best high torque hydraulic motors in Hanjiu products can provide a long working life. In addition, choosing hydraulic oil is a troublesome thing. Once the wrong type is used, some hydraulic motors are prone to failure, but Hanjiu’s low-speed hydraulic motors can be applied to various types of hydraulic oil, which greatly reduces the Losses caused by the wrong use of hydraulic oil, and these hydraulic motors have a compact and robust design, ground engaging tools can provide high torque at low speeds. This robust, compact hydraulic motor is ideal for many hydraulic applications, especially on agricultural machinery.


    The most important thing is that the durability of Hanjiu low-speed hydraulic motors under extreme working conditions is still the same. High, so Hanjiu Technology Co., Ltd. is recognized as the industry leader in the world's low-speed, high-torque hydraulic motor technology. It is hoped that all customers who need it can get a hydraulic motor with high radial and axial load capacity, which will greatly improve the performance of the machine.
