    530/531 Series White Drive Motor Danfoss RE High Torque Motor 5300375T3827AAAAA

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : 5300375T3827AAAAA
    Certification : CE
    Price : Contact the seller to get a quote
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 10000 pieces per year
    Delivery Time : 55 work days
    • Product Details
    • Company Profile

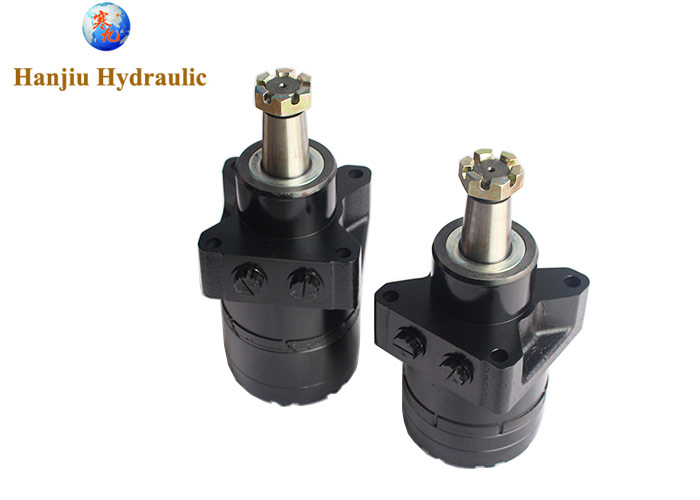

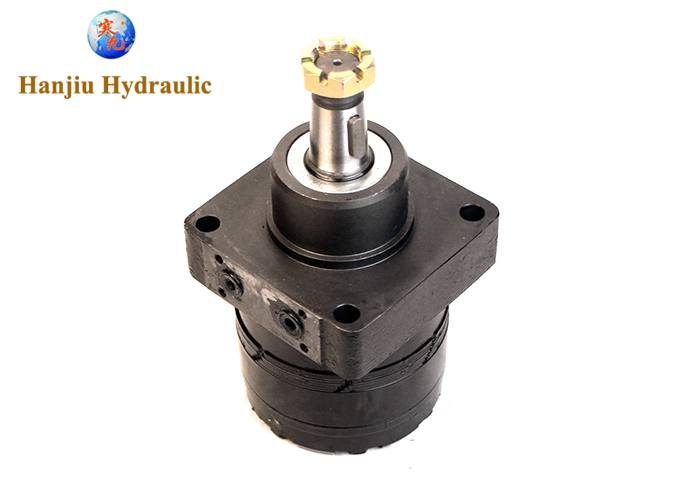

    530/531 Series White Drive Motor Danfoss RE High Torque Motor 5300375T3827AAAAA

    White 530 Series Drive Motor Danfoss RE high torque orbital motors wheel mount 5300375T3827AAAAA


    Quick review:

    This is WHITE /DANFOSS compatible motor with same form, fit and function

    Apply to lown mower and tractor mowers,loader mower


    Here is main specifications:

    Series:white 530/531, Danfoss RE
    Shaft:35mm key shaft
    Rotation:

    Standard rotation

    Displacement (cm3/rev):0375
    Mounting:Wheel mounting
    Geometric Displacement:375cm3/rev (22.8 in3/rev)
    Maximum Oil Flow (continuous / intermittent):75 lpm (20 gpm) / 90 lpm (24 gpm)
    Max. Differential Pressure (continuous / intermittent):205 bar (3000 PSI) / 240 bar (3500 PSI)
    Maximum Supply Pressure:276 bar (4000 PSI)
    Maximum Torque - Continuous / Intermittent:990 Nm (8900lb-in) / 1140Nm (10250 lb-in)
    Maximum Output(continuous / intermittent)16.5 KW /19kw

    Main Specifications:

    Type

    BMER

    125

    BMER

    160

    BMER

    200

    BMER

    230

    BMER

    250

    BMER

    300

    BMER

    350

    BMER

    375

    BMER

    475

    BMER

    540

    BMER

    750

    Geometric displacement

    (cm3 /rev.)

    118156196228257296345371462540745
    Max. speed (rpm)cont.360375330290290250220200160140100
    int.490470425365350315270240195170120
    Max. torque (N*m)cont.32545053062570081090599010859801050
    int.38052560071079093010351140118012401180
    peak450590750870980112012851360126013801370
    Max. output (kW)cont.12.01515.516.017.518.017.516.514.511.58.0
    int.14.017.518.019.020.021.020.019.016.515.010.0
    Max. pressure drop (MPa)cont.20.520.520.520.520.520.520.520.517.51410.5
    int.24242424242424241917.512
    peak27.627.627.627.627.627.627.627.620.520.514
    Max. flow (L/min)cont.4560707075808075757575
    int.6075858590959590909090




    More PARKER Low speed high torque compatible motors availalbe like :

    TB
    TC
    TJ
    TE
    TF
    TG
    TK




    About Hanjiu:

    Hanjiu company is a professional manufacturer of industrial hydraulic components, we have focused on the development and production of a full range of hydraulic components, rail motors, steering tracks, directional control valves. Hydraulic motor is one of our main products, Hanjiu products have advanced Gerolor gear set manufacturing device, using low pressure start, shaft seal can withstand back high pressure, motor can be used in parallel or series. We adopt a special design of the power distribution system that is unprecedented in the market, which can meet the low noise requirements of the unit. It also features a compact size and easy installation. In terms of price, we also have an absolute advantage. In addition, the hydraulic motors we produce are all-round and high-quality, not only with high work efficiency, but also with perfect service. Whether it is before or after the sale of products, Hanjiu is always 100% careful and patient with customers. All Hanjiu products come with a one-year warranty after they are sold. During this period, Han Jiu will be responsible for any damage caused by the future non-use of the product and solve it for you.


    We Hanjiu company always maintain our quality standards to provide customers with product and service innovation. If you are interested in our products, please go to the official website for more detailed consultation and understanding.
