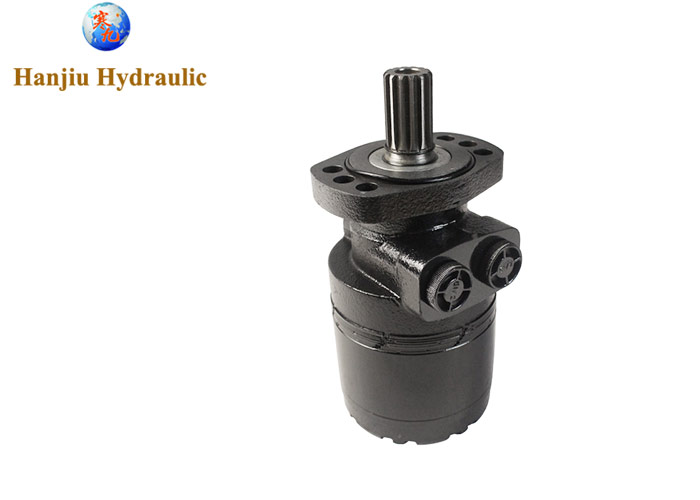

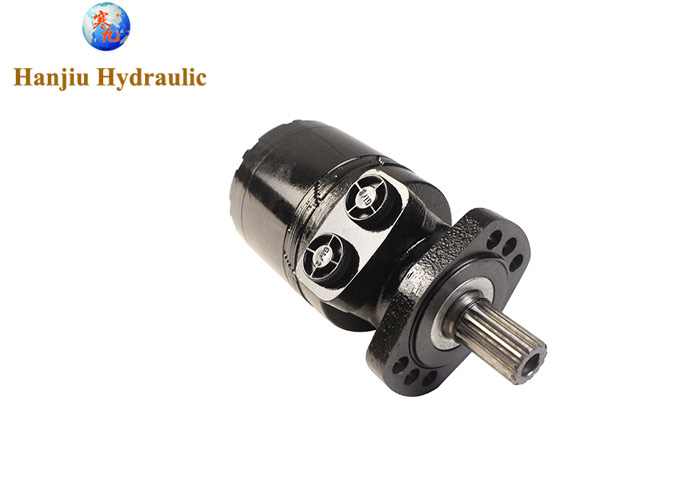

    White RE Danfoss Hydraulic Motor 500750A5823CAAAA 14 Tooth Spline Shaft Motor

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : BMER-2-750
    Certification : CE
    Price : Contact the seller to get a quote
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 10000 pieces per year
    Delivery Time : 55 work days
    • Product Details
    • Company Profile

    White RE Danfoss Hydraulic Motor 500750A5823CAAAA 14 Tooth Spline Shaft Motor

    White Danfoss RE Hydraulic Torqmotor 500750A5823CAAAA 14 Tooth Spline Shaft motor

    HANJIU supply the high Torqmotors BMER Series orbit motors matching white/danfoss/cross series motors, the same function,same specification, 100% interchangeable.


    Details specifications


    Series:RE500/501
    Shaft:
    31.75mm,14 Tooth Spline shaft
    Rotation:Reverse Time
    Displacement (cm3/rev):0750
    Mounting:6-Hole Front Aligned Ports 1/2” BSP.F
    Geometric Displacement:750cm3/rev (45.6 in3/rev)
    Maximum Speed:320 rev/min
    Maximum Oil Flow (continuous / intermittent):100 lpm /130 lpm
    Max. Differential Pressure (continuous / intermittent):1500 PSI / 2000 PSI
    Maximum Supply Pressure:2000 PSI
    Maximum Torque - Continuous / Intermittent:9400 lb-in / 10950 lb-in
    Maximum Performance:33 KW (45HP)

    Main Specifications:

    Type

    BMER-2

    125

    BMER-2

    160

    BMER-2

    200

    BMER-2

    230

    BMER-2

    250

    BMER-2

    300

    BMER-2

    350

    BMER-2

    375

    BMER-2

    475

    BMER-2

    540

    BMER-2

    750

    Geometric displacement

    (cm3 /rev.)

    118156196228257296345371462540745
    Max. speed (rpm)cont.360375330290290250220200160140100
    int.490470425365350315270240195170120
    Max. torque (N*m)cont.32545053062570081090599010859801050
    int.38052560071079093010351140118012401180
    peak450590750870980112012851360126013801370
    Max. output (kW)cont.12.01515.516.017.518.017.516.514.511.58.0
    int.14.017.518.019.020.021.020.019.016.515.010.0
    Max. pressure drop (MPa)cont.20.520.520.520.520.520.520.520.517.51410.5
    int.24242424242424241917.512
    peak27.627.627.627.627.627.627.627.620.520.514
    Max. flow (L/min)cont.4560707075808075757575
    int.6075858590959590909090



    Dependable Power, Affordable Price
    The RE Series motors offer the perfect compromise between price and performance by producing work horse power at a reasonable
    cost. Although these motors perform well in a wide range of applications, they are especially suited for low flow, high pressure applications.
    During startup, pressure causes the balance plate to flex toward the rotor, vastly improving volumetric efficiency. As the motor reaches operating pressure, the balance plate relaxes,allowing the rotor to turn freely which translates into higher mechanical efficiencies. Transmitting this power to the output shaft is the most durable drive link in its class. Three bearing options,combined with standard mounting flanges and output shafts, allow the motor to be configured to suit nearly any application.
