    Charlynn H Series Gerotor Hydraulic Motor 4 Bolts Flange 1" Key Shaft Low Speed High Torque Motor

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : BMPH
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, Payple
    Supply Ability : 70000 pieces per year
    Delivery Time : 10 - 15 work days
    • Product Details
    • Company Profile

    Charlynn H Series Gerotor Hydraulic Motor 4 Bolts Flange 1" Key Shaft Low Speed High Torque Motor

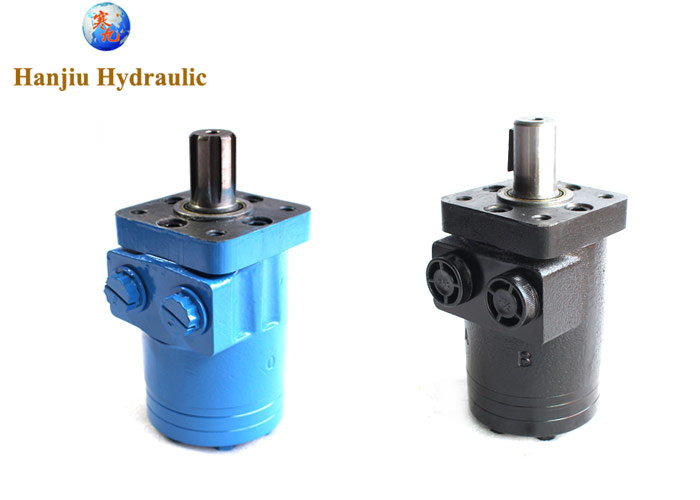

    Charlynn H Series gerotor hydraulic motor, 4 bolts flange,1" key shaft low speed high torque motor


    HANJIU Technology supply the BMPH series motors, code BMPH-40-H4-K-S-N1, matching Eaton charlynn H series

    with needle bearing , high torque motor


    Details:
    - Displacement: 40cc
    - Flange H4 Ø82.55mm
    - Shaft: Ø25.4mm,woodruff key φ25.4X6.35
    - Ports: 1/2 BSP" (A & B), 1/4" BSP (T)


    Geometric displacement (cm3/rev.)40cc
    Max. speed (rpm)cont.1500
    int.1650
    Max. torque (N•m)cont.55
    int.76
    peak96
    Max. output (kW)cont.8.0
    int.11.5
    Max. pressure drop(MPa)cont.12.5
    int.16.5
    peak22.5
    Max. flow (L/min)cont.55
    int.60
    Weight (kg)5.6






      EATON Hydraulic Motors
      • J (129-)
      • H (101-)
      • S (103-)
      • T (158-)
      • W (162-)
      • 2000 (104-, 105-, 106-, 193-)
      • 4000 (109-, 110-, 111-)
      • 6000 (112-, 113-, 114-)
      • 10,000 (119-, 120-, 121-)
