    Charlynn H Series Low Speed High Torque LSHT Gerotor Spool Motor 101-1857-009

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : BMPH
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, Payple
    Supply Ability : 70000 pieces per year
    Delivery Time : 10 - 15 work days
    • Product Details
    • Company Profile

    Charlynn H Series Low Speed High Torque LSHT Gerotor Spool Motor 101-1857-009

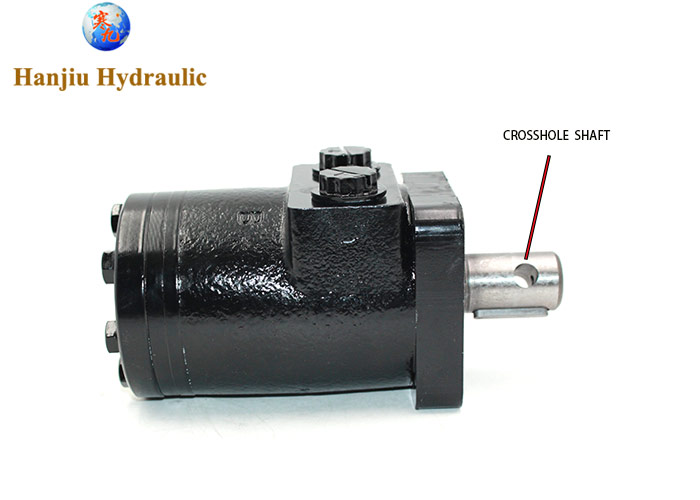

    Charlynn H Series Low Speed, High Torque (LSHT) Gerotor Spool Motor 101-1857-009


    HANJIU Technology supply the BMPH series motors, code BMPH-40-H4-RH-S, matching Eaton charlynn H series 101-1857-009

    with needle bearing , high torque motor


    Details:
    - Displacement: 100cc
    - Flange H4 Ø82.55mm
    - Shaft: Ø25.4mm,woodruff key φ25.4X6.35,with crosshole ∅10.3
    - Ports: 7/8-14 o-ring (A & B), 7/16-20 UNF (T)


    Geometric displacement (cm3/rev.)100cc
    Max. speed (rpm)cont.615
    int.770
    Max. torque (N•m)cont.182
    int.227
    peak264
    Max. output (kW)cont.11.0
    int.13
    Max. pressure drop(MPa)cont.14
    int.17.5
    peak22.5
    Max. flow (L/min)cont.60
    int.75
    Weight (kg)5.9

    Other types we supply


    101-1835
    101-1843101-1848101-1854101-1861101-1865
    101-1836101-1497101-1466

    101-1311

    101-1313101-1305
    101-1837101-1844101-1849101-1855101-1862101-1866
    101-1838101-1449101-1459101-1856101-1312101-1306
    101-1839101-1352101-1850101-1857101-1314101-1307
    101-1840101-1845101-1851101-1858101-1863101-1867
    101-1841101-1846101-1852101-1859101-1864101-1868
    101-1842101-1847101-1853101-1860101-1315101-1869





      EATON Hydraulic Motors
      • J (129-)
      • H (101-)
      • S (103-)
      • T (158-)
      • W (162-)
      • 2000 (104-, 105-, 106-, 193-)
      • 4000 (109-, 110-, 111-)
      • 6000 (112-, 113-, 114-)
      • 10,000 (119-, 120-, 121-)
