    New Design Parker TF0250 Wheel Mount Replacement LSHT Motor BMER With Valve Cavity

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : BMER-2-250-WD-FD1-FY
    Certification : CE, ISO9001
    Price : 170 usd/pc
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 10000 pieces per year
    Delivery Time : 35 - 45 work days
    • Product Details
    • Company Profile

    New Design Parker TF0250 Wheel Mount Replacement LSHT Motor BMER With Valve Cavity

    New Design Parker TF0250 wheel mount replacement LSHT motor BMER with Valve cavity


    Quick review:

    Hanjiu BMER = Parker TF

    ProductHydraulic Motor
    Model No.BMER-2-250-WD-FD1-FY
    Size250 ml/r
    FlangeWheel Mount
    PortG 1/2
    Shaft31.75mm spline shaft 14T
    RotationStandard
    ColorBlack
    More size

    125ml/r,160 ml/r, 200 ml/r, 230 ml/r, 250 ml/r, 300 ml/r, 350 ml/r, 375 ml/r

    400 ml/r, 475 ml/r, 540 ml/r, 650 ml/r, 750 ml/r


    FEATURES:
    Mounting Flange: SAE A 2-bolt; 4-bolt (Magneto); 4-bolt square flange; wheel mount.
    Displacement Range (cm3/rev.): 125cc - 750cc
    Max. Speed (RPM): 120-1500 Cont.
    Max. Differential Pressure (PSID): 2030 PSI
    Shafts Options: Parallel shaft (keyed), splined shaft and tapered shaft (see details)


    Specification:


    TypeBMERBMERBMERBMERBMERBMERBMERBMERBMERBMERBMER
    125160200230250300350375475540750
    Geometric displacement (cm3/rev.)118156196228257296345371462540745
    Max. speed (rpm)cont.360375330290290250220200160140100
    int.490470425365350315270240195170120
    Max. torque (N•m)cont.32545053062570081090599010859801050
    int.38052560071079093010351140118012401180
    peak450590750870980112012851360126013801370
    Max. output (kW)cont.12.015.015.516.017.518.017.516.514.511.58.0
    int.14.017.518.019.020.021.020.019.016.515.010.0
    Max. pressure drop (MPa)cont.20.520.520.520.520.520.520.520.517.51410.5
    int.24242424242424241917.512
    peak27.627.627.627.627.627.627.627.620.520.514
    Max. flow (L/min)cont.4560707075808075757575
    int.6075858590959590909090

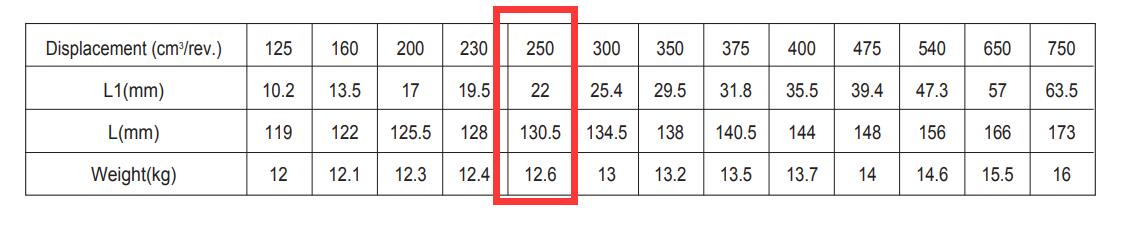

    Dimention:





    More BMER series to match Parker TF series

    More Parker replacement motor available:

    • TE
    • TB
    • TC
    • TF
    • TG
    • TJ
    • TK


    More displacement, flange and shaft versions available:



    Hanjiu technology is the leading hydraulic orbit motors manufacturer from China, we have experienced engineers who are engaged in this field on more than 20years, and knowing well of Danfoss/M+S/Charlynn/Parker motor...we have our own design and tech department, Hanjiu has a lot of advanced equipments, so We can continuously innovate, improve, expand product range and increase production capacity.


    we are not supply the service to hydraulic products distributors, fluid power company, but also supplying for machines manufacturer. our products can be totally fitting your machines, the better price can be lower your costs and bring your products more competitive.we hope to build a long business relationship to solve your problems and make you become stronger.
