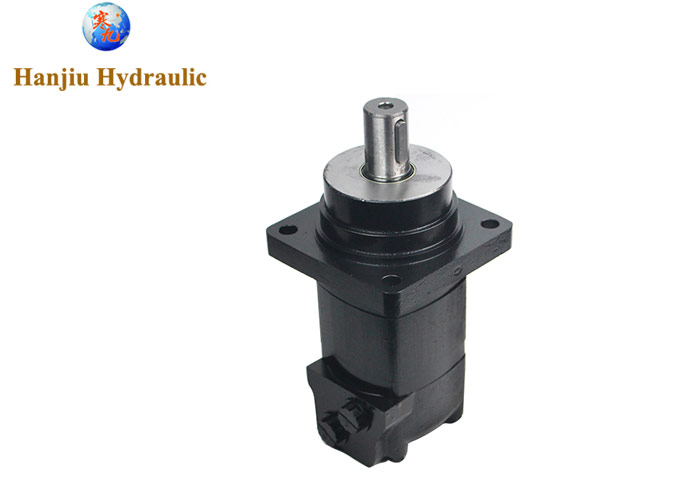

    Charlynn 2k Motor 105-1140-006 Wheel Drive Motor 32mm Key Shaft G1/2(BSP) Motor

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : 105-1140-006
    Certification : CE
    Price : Start from 95 usd
    Payment Terms : L/C, T/T, Western Union, Western Union
    Supply Ability : 300000 sets per year
    Delivery Time : 35 - 45 work days
    • Product Details
    • Company Profile

    Charlynn 2k Motor 105-1140-006 Wheel Drive Motor 32mm Key Shaft G1/2(BSP) Motor


    Charlynn 2k motor 105-1140-006 wheel drive motor, 32mm key shaft, G1/2(BSP) Motor

    Specification:


    DISPLACEMENT315CC
    SERIES
    2000 Series
    PORT LOCATIONG 1/2 BSP STRAIGHT THD PORTS - STAGGERED PORTS
    SHAFT TYPE32.00 [1.260] DIA. STRAIGHT SHAFT WITH M8 X 1.25-6H THREAD IN END, 9.982 [.3930]W X 7.995 [.3132]H X 45.00 [1.772]L KEY
    DRAING 1/4 BSP STRAIGHT THD PORT
    MAXIMUM SPEED @ CONTINUOUS FLOW191 rpm @ 20 gal/min
    FLOW RATE20 gal/min
    RPM [MAX]287 rpm
    DUTYStandard-Duty
    GEROTER/GEROLER OPTIONSStandard
    MOUNTING TYPEWHEEL, 4 BOLT; 108.0 [4.25] PILOT DIA. 13.59 [.535] DIA. HOLES ON 147.6 [5.81] DIA. BOLT CIRCLE. 127.0 [5.00] DIA. REAR MOUNT PILOT

    TYPEBMK2BMK2BMK2BMK2BMK2BMK2BMK2
    125CC160CC200CC250CC315CC400CC475CC
    Displacement(ml/r)129.8156.8193.4242.5304.3390.8485
    Max.Pressure.Drop(Mpa)cont.2120.520.520.52115.512
    int.31262626241714
    peak.313131313120.517
    Max.Torque(N.m)cont.385455540660765775845
    int.560570665820885925930
    Speed.Range(r/min)cont.576477385308246191153
    int.720713577462365287230
    Max.Flow(cont.)(L/min)cont.75757575757575
    int.95115115115115115115
    Weight(kg)1010.210.51111.51212.4


    TYPES WE SUPPLY :


    105-1134
    105-1135
    105-1136
    105-1137
    105-1138
    105-1139
    105-1140
    105-1141

    105-1001
    105-1002
    105-1003
    105-1004
    105-1005
    105-1006
    105-1007
    105-1060
    105-1152

    Applications
    • Skid Steer Attachments
    • Swing Motor
    • Brush Cutters & Mowers
    • Harvesting Equipment
    • Directional Boring any place pressure relief protection is optimal for system or motor performance and life
    • Turf equipment















    Hanjiu technology is the biggest hydraulic motors, orbit motors, low speed high torque motors, torquemotors manufacturer in China

    we have the most completely range of them, matching Danfoss/M+S/Charlynn/White/Parker... with fast leading time, excellent price

    and best service. our aim is to make your hydraulic system is easy and affordable!
