    BMS 200 Hydraulic Motor 32mm 1/2BSPP Replace 151F0504 Danfoss OMS200

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : BMSY-200
    Certification : CE, ISO9001
    Price : 88 usd/pc
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, Payple
    Supply Ability : 70000 pieces per year
    Delivery Time : 45 - 55 work days
    • Product Details
    • Company Profile

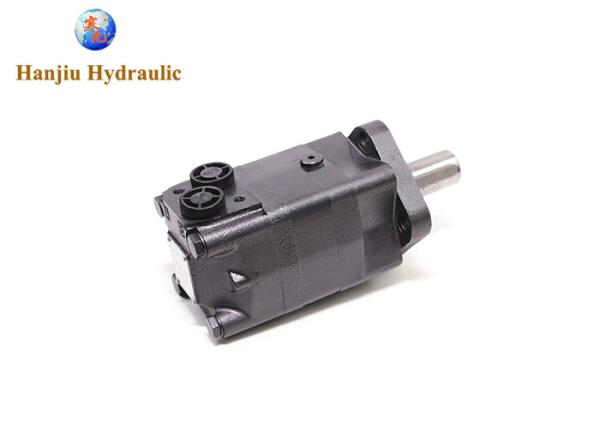

    BMS 200 Hydraulic Motor 32mm 1/2BSPP Replace 151F0504 Danfoss OMS200


    OMS 200 Hydraulic Motor 32mm 1/2BSPP replace 151F0504 Danfoss OMS200


    Quick review:


    Model No.BMS 200

    Shaft

    32mm Cylindrical
    Geometric displacement200 cm³
    Max. speed continuous.375 rpm
    Max. speed intermittent.450 rpm
    Max. torque continuous.586 Nm
    Max. torque intermittent705 Nm
    Max. output continuous.18.1 kw
    Max. output intermittent.24.0 kw
    Max. pressure continuous210 bar
    Max. pressure intermittent.250 bar
    Max. pressure peak270 bar

    Hanjiu BMS 200 apply to Skid Steer Attachments

    Also BMS series with more mounting and shaft apply to Swing Motor, Brush Cutters & Mowers, Harvesting Equipment, Directional Boring any place pressure relief protection is optimal for system or motor performance and life, Turf equipment and more.


    Specification:

    Main Specifications:
    TypeBMS
    BMSE
    80
    BMS
    BMSE
    100
    BMS
    BMSE
    125
    BMS
    BMSE
    160
    BMS
    BMSE
    200
    BMS
    BMSE
    250
    BMS
    BMSE
    315
    BMS
    BMSE
    375
    Geometric displacement
    (cm3 /rev.)
    80.6100.8125157.2200252314.5370
    Max. speed (rpm)cont.800748600470375300240200
    int.988900720560450360280240
    Max. torque (N·m)cont.190240310316400450560536
    int.240300370430466540658645
    peak260320400472650690740751
    Max. output (kW)cont.15.918.819.515.615.714.114.111.8
    int.20.123.523.221.218.31718.917
    Max. pressure drop (MPa)cont.17.517.517.5151412.51210
    int.2121212116161412
    peak22.522.522.522.522.52018.514
    Max. flow (L/min)cont.6575757575757575
    int.8090909090909090
    Max. inlet pressure (MPa)cont.2525252525252525
    int.3030303030303030
    Weight (kg)9.81010.310.711.111.612.312.6

    * Continuous pressure :Max. value of operating motor continuously.
    * Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
    * Peak pressure:Max. value of operating motor in 0.6 second per minute.

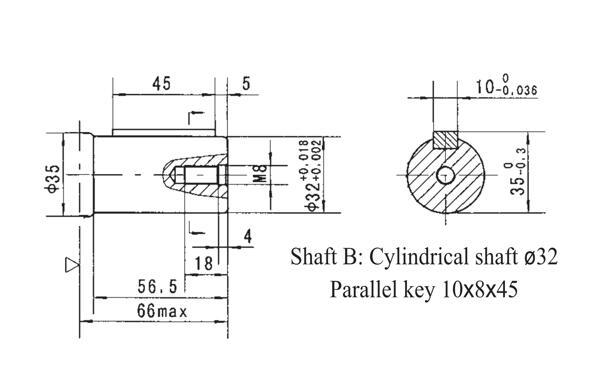

    Dimentions:



    More hydraulic motors available:


    About Hanjiu:

    Hanjiu technology is the biggest hydraulic motors, orbit motors, low speed high torque motors, torquemotors manufacturer in China, we have the most completely range of them, matching Danfoss/ M+S/ Charlynn/ White/ Parker... with fast leading time, excellent price and best service. Our aim is to make your hydraulic system is easy and affordable!
