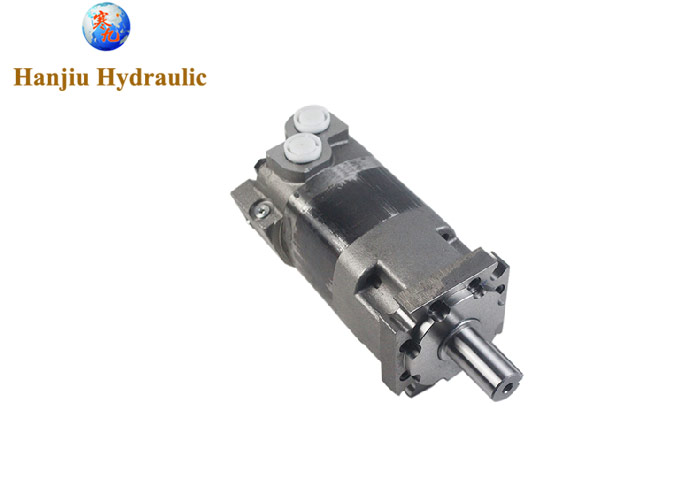

    Eaton Hydraulic Pump Motor 109-1492-006 Aftermarket Disc Geroler Motor Standard Type

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : 4000 series
    Certification : ISO 2015:9001
    Price : Start from 500 usd
    Payment Terms : L/C, T/T, Western Union, Western Union
    Supply Ability : 300000 sets per year
    Delivery Time : 15 - 45 work days
    • Product Details
    • Company Profile

    Eaton Hydraulic Pump Motor 109-1492-006 Aftermarket Disc Geroler Motor Standard Type


    eaton hydraulic pump motor 109-1492-006 aftermarket disc geroler motor standard type


    Hanjiu technology supply the replacement charlynn motor BMK4 series motor

    same specification and performance with Charlynn 4k motor
    the type code is 109-1492-006,109-1492-aft
    Product details:
    Application: Other: Mowing, Snow Removal, Sprayer, Trencher, Wood Products
    Brake type: Hydraulic
    flow options: .4375-20 UNF-2B SAE O-Ring Port With Check Valve
    Displacement: 492.6 cubic centimetre per revolution
    Flow rate12: 95 litre per minute
    Front seal kit if available: 61232-000
    Geroler options: Standard
    Description: Low-Speed Gerotor/Geroler
    Identification: None
    Intermittent pressure: 170 bar
    Low pressure relief: None
    Maximum speed: 191 revolutions per minute
    Model Code: M04301AB01AB0200000000000AA00F
    Mounting Type: Standard, 4 Bolt; 101.60 [4.000] Pilot Dia. 14.7 [.58] Slots On 127.00 [5.000] Dia. Bolt Circle. (SAE B)
    Output shaft type: Straight
    Paint: Primer Low Gloss Black
    Port type: 1.0625-12 UN-2B SAE O-Ring Ports - Staggered Ports
    Pressure flow option: None
    Product height: 4.72
    Product height uom: inch
    Product length: 12.87
    Product length uom: inch
    Product material: Cast Iron
    Product trade name: 4000 Series
    Product weight: 48.00
    Product weight uom: pound
    Product width: 4.72
    Product width uom: inch
    Recommended system working temperature: -34°C to 82°C
    Seal options: Standard
    Shaft options: None
    Special assembly instructions: None
    Special features hardware: None
    Speed sensor: No
    Sub brand: HANJIU
    Torque: 945 newton metre
    Two speed ratio: None
    Valve options: None
    Viscosity recommendation: 70 Saybold universal second



    From China, HANJIU technology design, develop and manufacture hydraulic orbital motors. Shipped to all over the world, customers use our hydraulic motors directly as compatible motors for Danfoss, M+S, Eaton, Parker, White, Dana Brevini. Obtain the maximum benefit with the minimum cost, and you have no risk in cooperating with us. If you are hydraulic motor importer, wholesaler, OEM factory, contact us to discuss cooperation and get big customer discount.
