    Low Speed High Torque Hydraulic Motors Parker Te0065 Wheel Drive Motor 31.75 Mm Tapered Shaft 7/8-14 O Ring Ports

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : BMJ-065
    Certification : CE
    Price : Contact the seller to get a quote
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 10000 pieces per year
    Delivery Time : 55 work days
    • Product Details
    • Company Profile

    Low Speed High Torque Hydraulic Motors Parker Te0065 Wheel Drive Motor 31.75 Mm Tapered Shaft 7/8-14 O Ring Ports

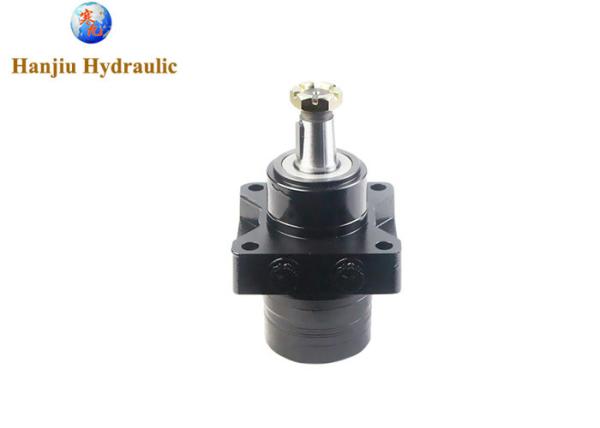

    Low Speed High Torque Hydraulic Motors Parker TE0065 wheel drive motor 31.75 mm tapered shaft,

    7/8-14 O-Ring port

    Quick review:

    The HANJIU BMJ Series Torqmotor is a durable low speed, high torque hydraulic motor. It is ideal for light duty applications such as vehicle propulsion, augers, chain drives, winches and boom rotation.


    Features and benefits include:

    Roller bearings
    Robust construction for longer life
    Continuous oil flow across internal splines for longer life
    Superior side load capacity
    Smooth, extra low speed operation
    High pressure shaft seal as standard
    Innovative design eliminates the need for a case drain

    Hanjiu BMJ motors

    Series:BMJ motors
    Shaft:1.25" Tapered shaft
    Rotation:

    Standard rotation

    Displacement (cm3/rev):0065
    Mounting:Wheel mounting
    Geometric Displacement:65cm3/rev (4.0 cu in / rev)
    Maximum Oil Flow (continuous / intermittent):45 lpm / 57lpm
    Max. Differential Pressure (continuous / intermittent):140 bar / 190bar
    Maximum Supply Pressure:200 bar
    Maximum Torque - Continuous / Intermittent:126 Nm / 176Nm
    Maximum Output(continuous / intermittent)8.3 KW /13.9kw

    Main Specifications:

    TypeBMJ
    65
    BMJBMJBMJBMJBMJBMJBMJBMJBMJBMJ
    80100125160200230250295315375
    Geometric displacement66.881.3101.6127157.2193.6226257287.8314.5370
    (cm3 /rev.)
    Max. speed (rpm)cont.667543439350283229247216196178152
    int.842689553441355289328287254235199
    Max. torque (N*m)cont.126157191245307382378381393448439
    int.176215268335422520528543547587613
    Max. output (kW)cont.8.38.87.98.98.999.99.38.787.6
    int.13.914.413.514.115.615.717.916.515.614.314
    Max. pressure drop (MPa)cont.141414141414121110109
    int.19191919191916.515.514.513.512.5
    peak2020202020201818171616
    Max. flow (L/min)cont.4545454545455757575757
    int.5757575757577575757575

    The motor is available in 15 displacements from 36 cc/rev to 392 cc/rev:

    replace Parker TE0036 | TE0045 | TE0050 | TE0065 | TE0080 | TE0100 | TE0130

    | TE0165 | TE0195 | TE0230 | TE0260 | TE0295 | TE0330 | TE0365 | TE0390


    More PARKER TORQMOTORS

    ----TE

    -----TB

    -----TF

    ----TG

    ----TGK

    ----TJ



    our quality:
    Passed CE,ISO9001:2015
    our strength:
    quick leading time
    best aftersales service
    exceptional prices
    Our aim is to make offering hydraulic products affordable/fast /easy
    and with high quality
