V10 1p7p 1c20 Vickers Eaton 16gpm Hydraulic Vane Pump

Shijiazhuang Hanjiu Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap V10 1p7p 1c20 Vickers Eaton 16gpm Hydraulic Vane Pump from wholesalers

    Buy cheap V10 1p7p 1c20 Vickers Eaton 16gpm Hydraulic Vane Pump from wholesalers
    • Buy cheap V10 1p7p 1c20 Vickers Eaton 16gpm Hydraulic Vane Pump from wholesalers
    • Buy cheap V10 1p7p 1c20 Vickers Eaton 16gpm Hydraulic Vane Pump from wholesalers
    • Buy cheap V10 1p7p 1c20 Vickers Eaton 16gpm Hydraulic Vane Pump from wholesalers

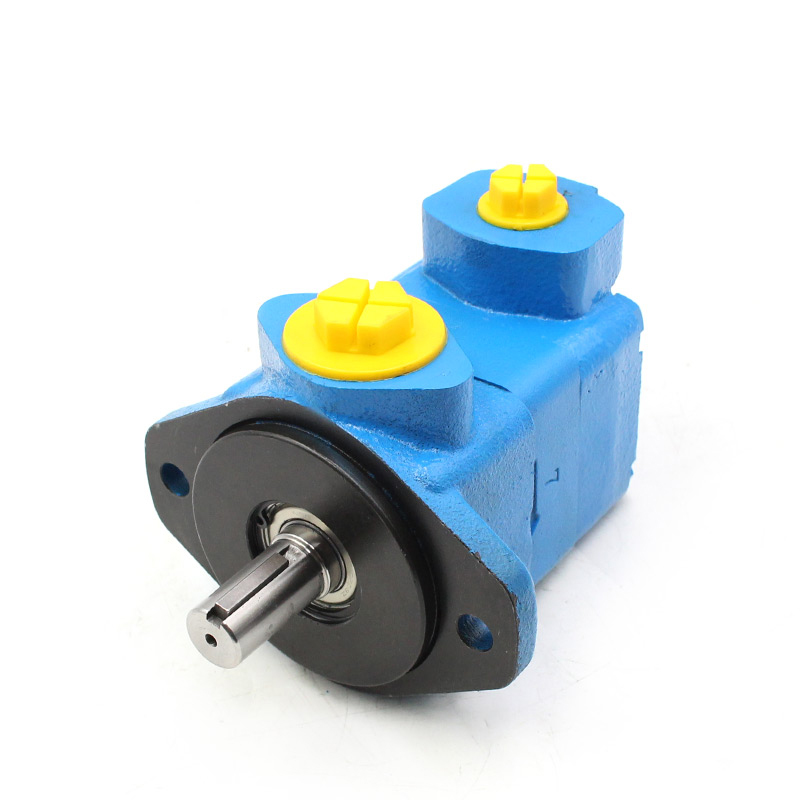

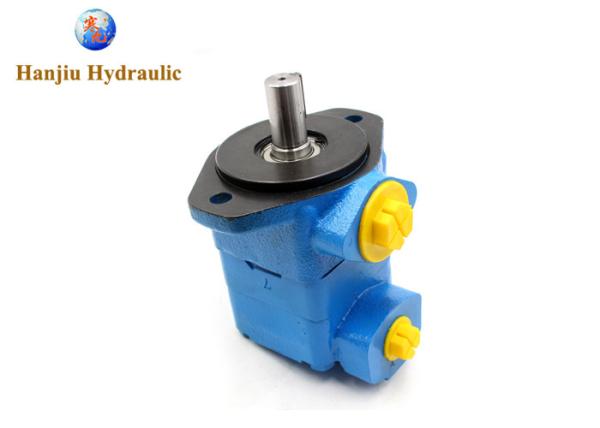

    V10 1p7p 1c20 Vickers Eaton 16gpm Hydraulic Vane Pump

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : V10 1P7P 1C20
    Certification : CE
    Price : Contact the seller to get a quote
    Payment Terms : L/C, T/T, Western Union, Western Union
    Supply Ability : 300000 sets per year
    Delivery Time : 7-10 work days
    • Product Details
    • Company Profile

    V10 1p7p 1c20 Vickers Eaton 16gpm Hydraulic Vane Pump


    V10 1P7P 1C20 Vickers (Eaton) Hydraulic Vane Pump Aftermarket


    MOQ: 1 unit
    Location: China
    Brand: Hanjiu
    Model:
    V10 1P7P 1C20
    Notes: Vickers (Eaton) Hydraulic Vane Pump Aftermarket


    DESCRIPTION
    V10 VANE PUMP
    Brand new, hydraulic balanced vane pumps. Cast iron construction. Operating rotation can be field reversed. Outlet port can be field rotated any position.



    Rotation CW
    Pressure:
    2000 PSI cont.
    Speed:
    600 RPM min.
    2800 RPM max.
    Flow:
    16 GPM @ max. RPM
    Mount 2 bolt SAE A
    Shaft 3/4" dia. X 1-3/4" w/ 3/16" key
    Inlet Port 1" NPT
    Outlet Port 1/2" NPT
    Size 5-1/4" X 5-1/4" X 4-1/4"
    Shpg. 15 lbs.


    SPECIFICATIONS

    Vane Pump TypeSingle
    SeriesV10
    Displacement22.8 cm/r
    Inlet Port Size1 in NPT
    Outlet Port Size1/2 in NPT
    Flow16 GPM @ max
    Maximum Operating Pressure2000 psi
    RotationCW
    Speed600 RPM min.
    2800 RPM max
    Mount2 bolt SAE A
    Shaft3/4" dia. X 1-3/4" w/ 3/16" key
    Inlet Port1" NPT
    Outlet Port1/2" NPT
    Size5-1/4" X 5-1/4" X 4-1/4"
    Weight15 lbs.



    COMMENTS

    Sell ​​as is. 12 months warranty. The conditions for removal and loading are the sole responsibility of the buyer.

    Contact us, tell us your questions and applications, we'd like to serve you out.
