2000 Char Lynn Motor 104-1038 104-1039 104-1040 1 1/16 -12 O Ring 180° Apart

Shijiazhuang Hanjiu Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 2000 Char Lynn Motor 104-1038 104-1039 104-1040 1 1/16 -12 O Ring 180° Apart from wholesalers

    Buy cheap 2000 Char Lynn Motor 104-1038 104-1039 104-1040 1 1/16 -12 O Ring 180° Apart from wholesalers
    • Buy cheap 2000 Char Lynn Motor 104-1038 104-1039 104-1040 1 1/16 -12 O Ring 180° Apart from wholesalers
    • Buy cheap 2000 Char Lynn Motor 104-1038 104-1039 104-1040 1 1/16 -12 O Ring 180° Apart from wholesalers
    • Buy cheap 2000 Char Lynn Motor 104-1038 104-1039 104-1040 1 1/16 -12 O Ring 180° Apart from wholesalers

    2000 Char Lynn Motor 104-1038 104-1039 104-1040 1 1/16 -12 O Ring 180° Apart

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : BMK2 MOTOR
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, D/P, D/A, L/C
    Supply Ability : 300000PCS PER YEAR
    Delivery Time : 25-30DAYS
    • Product Details
    • Company Profile

    2000 Char Lynn Motor 104-1038 104-1039 104-1040 1 1/16 -12 O Ring 180° Apart

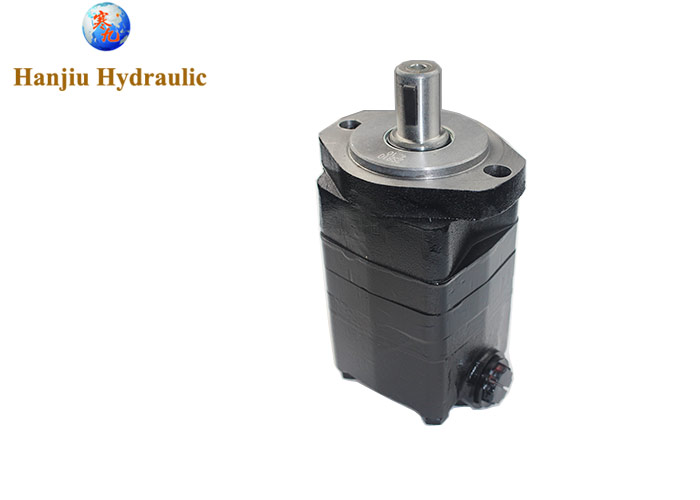

    Char Lynn 2000 low speed high torque hydraulic motor 104-1038,104-1039,104-1040 1 1/16 -12 O-ring 180° Apart


    BrandHANJIU
    Displacement100cc
    Product TypeSimple product
    FeaturesBlack Paint
    Mount2Bolt Standard shaft
    Ports7/8-14 St.Thd. O-Ring
    Supplier Part Number104-1038-006
    Product Weight24.00 lbs

    Main specification


    TYPE

    BMK2
    125CC

    BMK2

    160CC

    BMK2
    200CC

    BMK2
    250CC

    BMK2
    315CC

    BMK2
    400CC

    BMK2

    475CC

    Displacement(ml/r)129.8156.8193.4242.5304.3390.8485

    Max.Pressure.Drop(Mpa)
    cont.2120.520.520.52115.512
    int.31262626241714
    peak.313131313120.517
    Max.Torque(N.m)cont.385455540660765775845
    int.560570665820885925930
    Speed.Range(r/min)cont.576477385308246191153
    int.720713577462365287230
    Max.Flow(cont.)(L/min)cont.75757575757575
    int.95115115115115115115
    Weight(kg)1010.210.51111.51212.4



    Part NumberDisplacement cm/rev (in/rev)
    104-1037-00680 (4.9)
    104-1038-006100 (6.2)
    104-1039-006130 (8.0)
    104-1040-006160 (9.6)
    104-1041-006195 (11.9)
    104-1042-006245 (14.9)
    104-1043-006305 (18.7)
    104-1044-006395 (24.0)
    104-1422-006490 (29.8)
    104-4480-006305(18.7)
    104-4481-006395(24.0)


    Hydraulic company Hanjiu Technology has now become one of the most famous hydraulic motor manufacturers in China by rapidly innovating and improving all aspects of its products and services, and has occupied a good position in the Chinese market. While improving technology, they also minimize profits, form price and quality relative advantages, and are committed to developing the most cost-effective hydraulic and other related products on the market, thereby enhancing the market competitiveness of the motor, hydraulic motors manufacturers in good faith first, quality first for the purpose, from employee entry, raw materials into the factory, from parts processing, assembly programs to products, have a relatively perfect product quality system, and passed the CE certification, is committed to establishing an internationally renowned brand, looking forward to your purchase!
