OMS 80 MS 80 Sauer Danfoss Hydraulic Motor 106.4mm Flange 25 Mm Key Shaft

Shijiazhuang Hanjiu Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap OMS 80 MS 80 Sauer Danfoss Hydraulic Motor 106.4mm Flange 25 Mm Key Shaft from wholesalers

    Buy cheap OMS 80 MS 80 Sauer Danfoss Hydraulic Motor 106.4mm Flange 25 Mm Key Shaft from wholesalers
    • Buy cheap OMS 80 MS 80 Sauer Danfoss Hydraulic Motor 106.4mm Flange 25 Mm Key Shaft from wholesalers
    • Buy cheap OMS 80 MS 80 Sauer Danfoss Hydraulic Motor 106.4mm Flange 25 Mm Key Shaft from wholesalers
    • Buy cheap OMS 80 MS 80 Sauer Danfoss Hydraulic Motor 106.4mm Flange 25 Mm Key Shaft from wholesalers
    • Buy cheap OMS 80 MS 80 Sauer Danfoss Hydraulic Motor 106.4mm Flange 25 Mm Key Shaft from wholesalers

    OMS 80 MS 80 Sauer Danfoss Hydraulic Motor 106.4mm Flange 25 Mm Key Shaft

    Ask Lasest Price
    Brand Name : Hanjiu
    Model Number : OMS80
    Certification : CE,ISO9001
    Price : Negotiable
    Payment Terms : T/T, Western Union,Paypal .
    Supply Ability : 100,000 units / Year
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

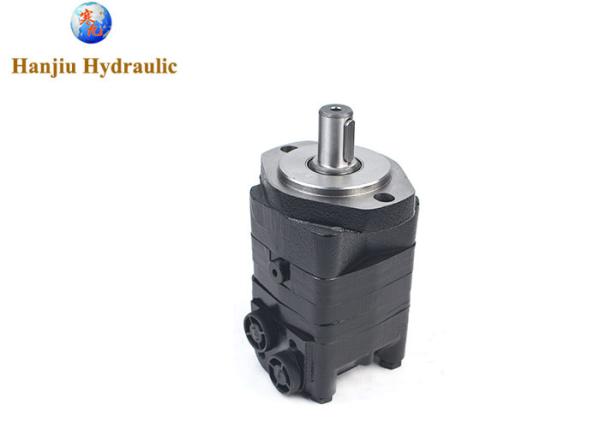

    OMS 80 MS 80 Sauer Danfoss Hydraulic Motor 106.4mm Flange 25 Mm Key Shaft

    sauer danfoss hydraulic motor OMS 80 ,MS 80 Hydraulic Orbital Motor ,106.4mm flange,25 mm key shaft



    OMS 80, MS 80 is a hydraulic orbital motor manufactured by Hanjiu Technology

    Details as below:

    • Port Size:7/8-14 UNF
    • displacement:80cc
    • Shaft:25mm key shaft
    • Port Location Side Ported
    • Flow Rating :75l/min
    • Max Speed:cont.800rpm,int.988 rpm
    • Shaft seal:High pressure seal Kit
    • function:low leakage
    • Country of Manufacture China


    Main Specifications:

    TypeBMSY
    80
    BMSY
    100
    BMSY
    125
    BMSY
    160
    BMSY
    200
    BMSY
    250
    BMSY
    315
    BMSY
    400

    BMSY
    475

    Geometric displacement
    (cm3 /rev.)
    80.6100.8125157.2200252314.5394475
    Max. speed (rpm)cont.800748600470375300240185155
    int.988900720560450360280225185
    Max. torque (N·m)cont.190240310316400450560880910
    int.240300370430466540658980990
    peak260320400472650690740751760
    Max. output (kW)cont.15.918.819.515.615.714.114.1119
    int.20.123.523.221.218.31718.91211
    Max. pressure drop (MPa)cont.17.517.517.5151412.5121614
    int.212121211616141915
    peak22.522.522.522.522.52018.52117.5
    Max. flow (L/min)cont.657575757575757575
    int.809090909090909090
    Max. inlet pressure (MPa)cont.252525252525252525
    int.303030303030303030
    Weight (kg)9.81010.310.711.111.612.312.614.3

    * Continuous pressure :Max. value of operating motor continuously.
    * Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
    * Peak pressure:Max. value of operating motor in 0.6 second per minute.

    The BMSY series motor adapts the advanced GEROLER gear set design with DISC distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. The output shaft tapered roller bearings permit high axial and radial forces offering a smooth operation during low pressure start up and high pressure operation. These low weight advanced construction design motors are manufactured in accordance with the requirements of the ISO 9001-2015 quality system.
