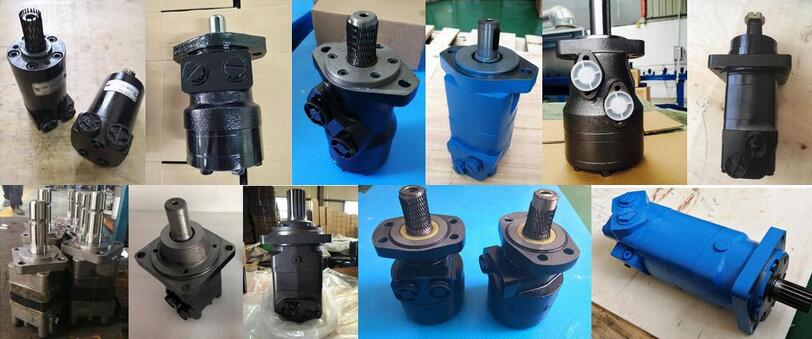

    2 Bolt A Flange 22mm Sub Shaft Hydraulic Drive Motor Splined 13-DP16/32 3000 PSI

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : BMK2-200-E2-I-SU
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, Payple
    Supply Ability : 10000 pieces per months
    Delivery Time : 20 - 25 work days
    • Product Details
    • Company Profile

    2 Bolt A Flange 22mm Sub Shaft Hydraulic Drive Motor Splined 13-DP16/32 3000 PSI


    2000 Series, 2 Bolt A Flange, 22mm sub-shaft, splined 13-DP16/32, 7/8-14 UNT O-RING, 3000 PSI


    Quick review:

    1,model numberBMK2-200-E2-I-SU
    2,displacement200 ml/r
    3,flange2 - hole standard mounting
    4,shaft22 mm straight shaft, splined 13-DP16/32
    5,oil port7/8-14 UNF
    6,drain7/16-20 UNF
    7,rotationStandard
    8,paintBlack
    9,replaceChar-lynn 2K

    Specifications:

    TypeBMK2BMK2BMK2BMK2BMK2BMK2BMK2BMK2BMK2BMK2
    6580100125160200250315400475
    Geometric displacement
    (cm3 /rev.)
    6580100.9129.8156.8193.4242.5304.3390.8485
    Max. speed (rpm)cont.835800742576477385308246191153
    int.990980924720713577462365287230
    Max. torque (N·m)cont.185235295385455540660765775845
    int.245345445560570665820885925930
    Max. pressure drop (MPa)cont.20.521212120.520.520.52115.512
    int.27.5313131262626241714
    peak313131313131313120.517
    Max. flow (L/min)cont.55657575757575757575
    int.65809595115115115115115115
    Weight (kg)9.29.49.71010.210.51111.51212.4
    * Continuous pressure :Max. value of operating motor continuously.
    * Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
    * Peak pressure:Max. value of operating motor in 0.6 second per minute.




    Applications:
    • Trenchers
    • Skid Steer Attachments
    • Zero Turn Mowers
    • Golf Course Maintenance Equipment
    • Sweepers
    • Wood Chippers
    • Conveyers
    • Combine Harvesters
    • Winches
    • Augers
    • Portable Irrigation Systems
    • Post Hole Augers
    • Potato, Tomato, Nut, Leafy Vegetable, Sugar, Cotton, Coffee and Grape Specialty Harvesters
    • Combine Header Drives
    • Sprayers
    • Scissor Lifts
    • Snow Removal
    • Salt and Sand Spreaders
    • Oil and Gas Blender Trucks
    • Mini and Walk-Behind Skid Steers
    • Tool Carriers
    • Pipe Spinners


    About Hanjiu:


    Hanjiu produce variety of hydraulic parts to suit range of brands & applications. We can vast your business.
    We introduce us as advantage supplement of your current hydraulic supply, solve reliability, quality, time, cost, brand promotion.
    Send your request to get our latest quote.
