    Tractor Parts Orbitrol Control Valve OSPC 125 CC HKUS 125CC

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : 101S-3-125
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T, D/P, Western Union
    Supply Ability : 1000000 Sets Per Year
    Delivery Time : 25 - 35 work days
    • Product Details
    • Company Profile

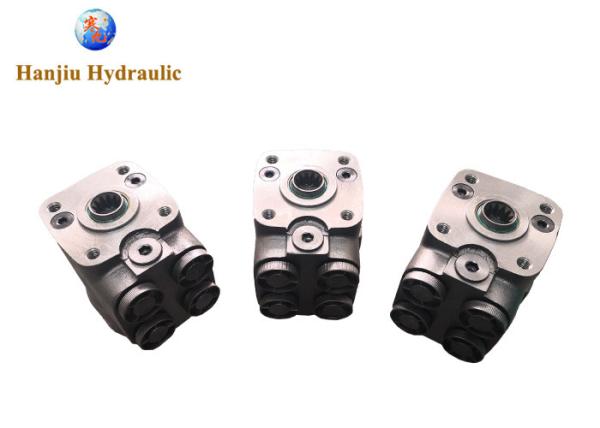

    Tractor Parts Orbitrol Control Valve OSPC 125 CC HKUS 125CC

    Tractor Parts Orbitrol Control Valve OSPC 125 CC HKUS 125CC


    We produce hydraulic Orbitrol Control Valve for Tractors, also Combines, Forklifts, Loaders, Backholes, can be widely used on machinery, same as OEM code.


    Features:

    • 5 series, 100+ types Turning Orbitrol Valves from big to small, variouse options meet different choices of customers
    • popular among hydraulic repairer, machine manufacturer, hydraulic dealers and importers
    • popular among MF, JD, Class, Ford, New Holland, Fiat , Atlas, , / Cat, Yanmar.
    • popular among , Eaton Char-lynn, M+S distributors

    Applications:

    The role of hydraulic steering valves is to increase the power steering wheel steering transmission to the transmission mechanism and change the direction of transmission. Widely used in agricultural machinery, shipbuilding machinery, garden machinery, road maintenance machinery, forestry machinery, construction machinery and mining machinery and other low-speed heavy vehicles. With it, the driver can achieve greater steering force control with a smaller steering force, and the performance is safe and reliable, the operation is light and flexible.



    Specifications:


    ParametersSeries: 101s similar to OSPC
    Function code1,2,41,4
    Displacement (mL/r)506380100125160200250280315400
    Rated Flow (L/min)5681012.5162025283240
    Max.input pressure(Mpa)16
    Relief Valve Pressure Settings ( MPa)06,07,08,10,12,14,15,16
    Shock Valve Pressure Settings ( MPa)12,13,14,16,18,20,21,22
    Max.cont.back pressure2.5
    Weight(kg)5.755.815.895.966.16.36.56.736.917.17.5
    Dimension L (mm)130132134137140145150156161166176
