    Rotating Hydraulic Motor Drilling Rig Charlynn 6000 Series 112-1076-006

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : BMK6
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, Payple
    Supply Ability : 300000 pieces per year
    Delivery Time : 10 - 15 work days
    • Product Details
    • Company Profile

    Rotating Hydraulic Motor Drilling Rig Charlynn 6000 Series 112-1076-006

    Rotating Hydraulic Motor Drilling Rig charlynn 6000series 112-1076-006


    Hanjiu BMK6 = EATON CHAR-LYNN 6000 = EATON CHAR-LYNN 6K = OMT = M+S MT

    Model number: BMK6-200-CCT1SF5
    Replace Char-lynn motor 6000 Series
    Displacement: 200cc
    Flange: 4x13.5 Square flange
    Pilot: 127x12.5
    Mounting distance: 161.9
    Shaft: φ45mm tappered
    Port:3/4’’ 8X3/8-16UNC
    Drain port: 7/16-20 UNF
    Paint: Blue

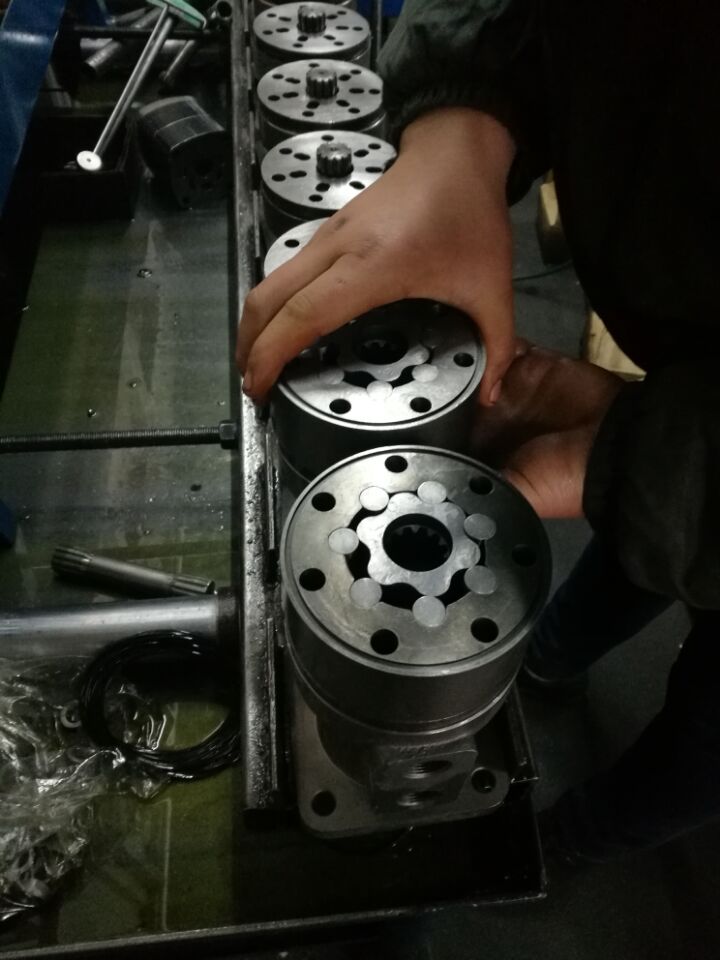

    BMK6 series motor adapt the advanced Gerloer gear set design with disc distribution flow and high pressure.The unit can be supplied the individual variant in operating multifunction in accordanbe with requirement of appications.


    CHARACTERISTIC FEATURES:

    • Advanced manufacturing devices for the Geroler gear set,which use low pressure of star-up ,provide smooth and reliable operation and high efficiency.
    • The output shaft adapts in tapered roller bearings that permit high axial and radial forces.Can offer capacities of high pressure and high torque in the wide of applications.
    • Advanced design in disc distrbution flow,which can automatically compensate in operating with high volume efficiency and long life,provide smooth and reliabel operation.

    Main Specification

    Type

    BMK6

    200

    BMK6

    250

    BMK6

    315

    BMK6

    400

    BMK6

    500

    BMK6

    630

    BMK6

    800

    BMK6

    1000

    Geometric displacement
    (cm3 /rev.)
    195.6246.1311.6391.3490.8623802.4981.6
    Weight (kg)26.326.827.32828.829.630.532




    Applications:


    • Trenchers
    • Skid Steer Attachments
    • Zero Turn Mowers
    • Golf Course Maintenance Equipment
    • Sweepers
    • Wood Chippers
    • Conveyers
    • Combine Harvesters
    • Winches
    • Augers
    • Portable Irrigation Systems
    • Post Hole Augers
    • Potato, Tomato, Nut, Leafy Vegetable, Sugar, Cotton, Coffee and Grape Specialty Harvesters
    • Combine Header Drives
    • Sprayers
    • Scissor Lifts
    • Snow Removal
    • Salt and Sand Spreaders
    • Oil and Gas Blender Trucks
    • Mini and Walk-Behind Skid Steers
    • Tool Carriers
    • Pipe Spinners




    Hanjiu is a hydraulic components manufacture, we are offering hydraulic motors, gear pumps,directional valves and more.We produce and supply only top quality, defect free hydraulic components that you can rely on.

    we are willing to be your new supplier, because our products have lower price and good performance,

    will saving you more extra cost,the best after sale service will be less complaint from your consumers,

    also stable delivery will make you have enough stock.






    Please do not hesitate to contact us for further information, inquiries or orders.

    Thank you for choosing 'Hanjiu' Hydraulics.
