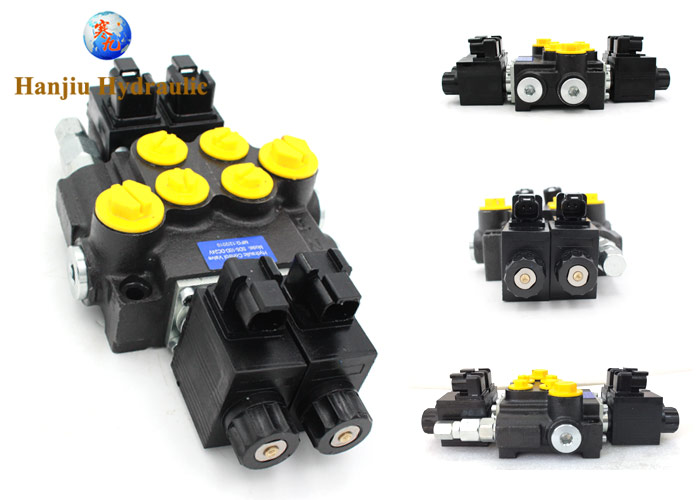

2 Spool Hydraulic Solenoid Directional Control Valve 13gpm 24VDC, monoblock

Hydraulic Monoblock Solenoid Control Valve, 3 Spool, 13 GPM, 24V DC

Two Spool Options Available:

A Spool (Controls Double Acting Cylinders)

• All spools are double acting with spring return to neutral position, A spool is designed to control double acting cylinders
• A and B ports are closed to Tank in neutral position

D Spool (Motor Control)

• All spools are double acting with spring return to neutral position, D spool is designed for non-load holding applications such as motors and horizontal cylinders
• A and B ports are open to Tank in neutral position

Benefits:

• Precision ground and hard chrome-plated spools assure a long life
• High-tensile strength cast iron monoblock construction
• SAE O-Ring ports ensure solid seal and prevent blockages
• Used for open center systems (Pump to Tank Flow)
• Capable of closed center or Power Beyond (conversion plug required)
• Adjustable Relief Valve Range: 1500 to 3625 PSI
• Manual Override

Features:

• 24 Volt DC Solenoids
• Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI
• Flow Rating: 13 GPM (50 l/min)
• A & B Work Ports: #8 SAE O-Ring (3/4”-16) Thread
• Inlet Port: #10 SAE O-Ring (7/8”-14) Thread
• Outlet Port: #10 SAE O-Ring (7/8”-14) Thread

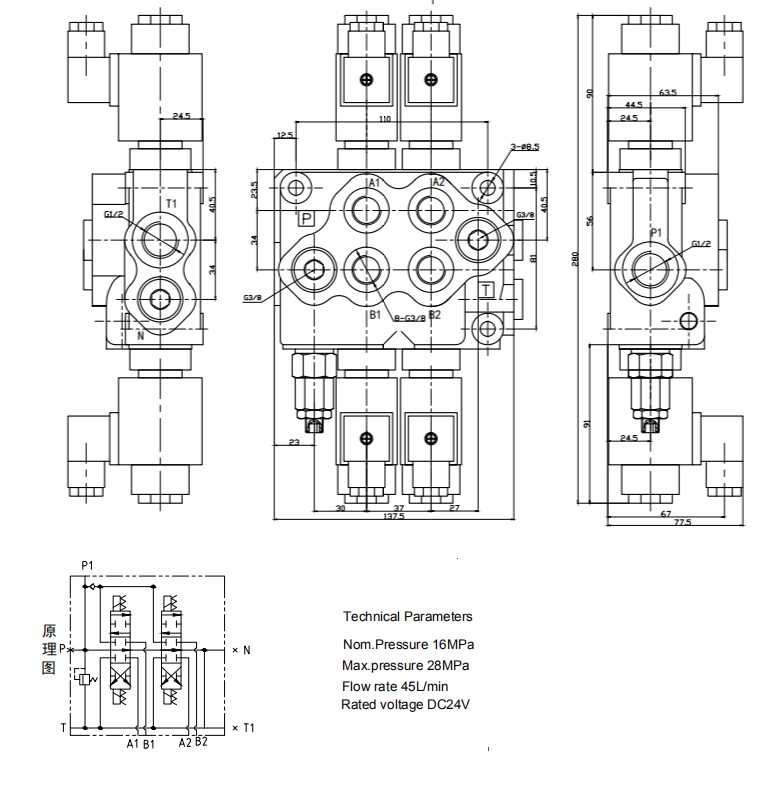

Specifications:

Port threads
