Quick detail :
BME2-230 replace Parker, Eaton, , M+S
| BME2-230 |
| Displacement cm3/rev. | 226 |
| Speed rpm | 328 |
| Torque Nm | 528 |
| Output kw | 17.9 |
| Pressure MPa | 18 |
| Flow L/min | 57 |
Low speed high torque motor :
Low speed high torque hydraulic motor are rotary actuators that convert hydraulic, or fluid energy into
mechanical power. They work in tandem with a hydraulic pump, which
converts mechanical power into fluid, or hydraulic power. Hydraulic
motors provide the force and supply the motion to move an external
load.

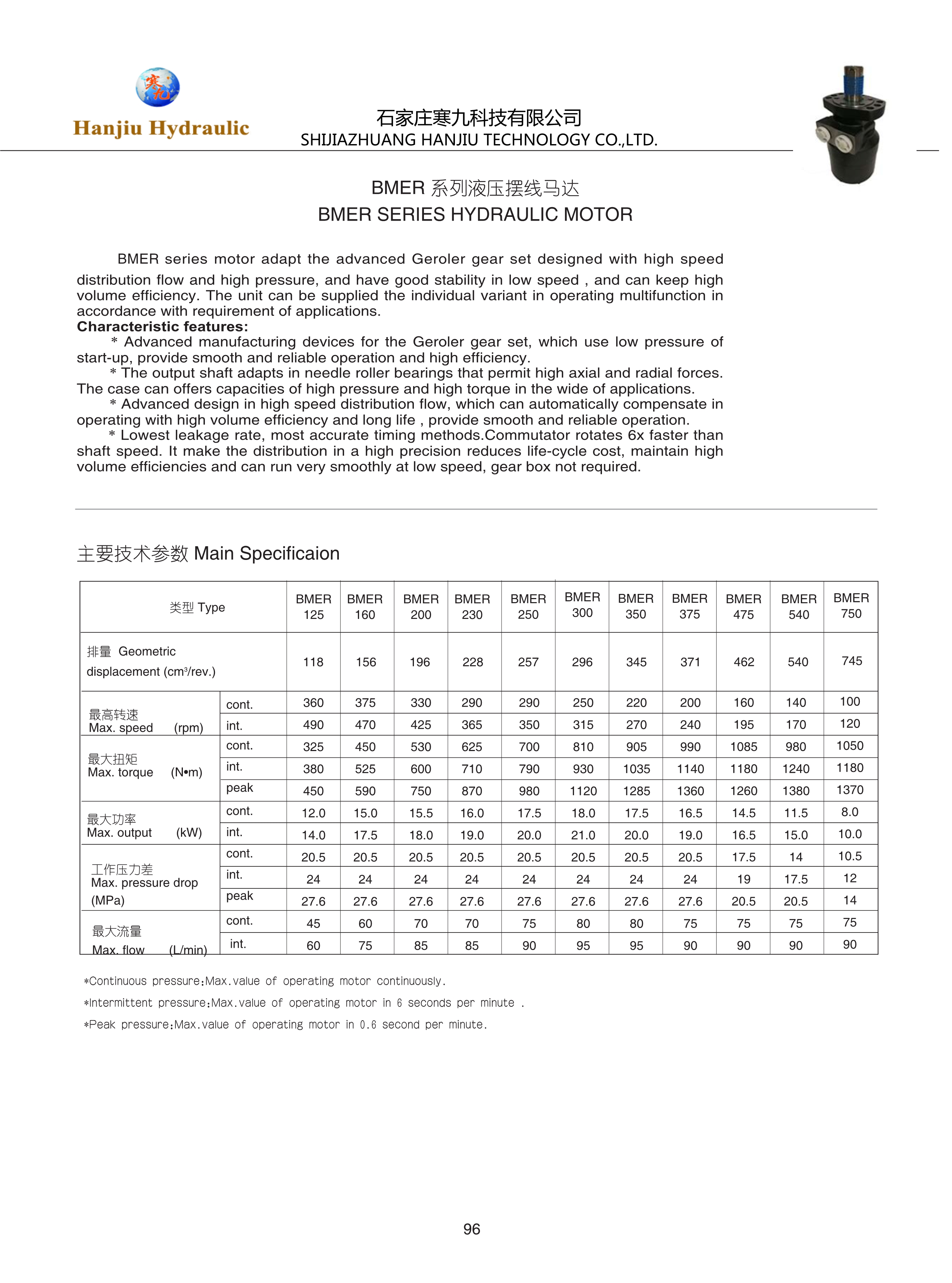

Charactor of BME2 series motors :
BME2 series motor adapt the advanced Geroler gear set designed with
high speed distribution flow and high pressure, and have good
stability in low speed , and can keep high volume efficiency. The
unit can be supplied the individual variant in operating
multifunction in accordance with requirement of applications.
Characteristic features:
* Advanced manufacturing devices for the Geroler gear set, which
use low pressure of start-up, provide smooth and reliable operation
and high efficiency.
* The output shaft adapts in needle roller bearings that permit
high axial and radial forces. The can offers capacities of high
pressure and high torque in the wide of applications.
* Advanced design in high speed distribution flow, which can
automatically compensate in operating with high volume efficiency
and long life , provide smooth and
reliable operation.
* Lowest leakage rate, most accurate timing methods.Commutator
rotates 6x faster than shaft speed. It make the distribution in a
high precision reduces life-cycle cost, maintain high volume
efficiencies and can run very smoothly at low speed, gear box not
required.
More Hydraulic Motors :
We provide BMM, BMP, BMR, BMH, BMS, BMSS, BMT, BMTS, BMV series
They are all widely apply to Hydraulic Fluid Systems , Fluid Power
Manufacturers, Hydraulic Systems Solutions, Fluid Power Solutions
They are all compatible with Parker TE, TF, TG, TJ, OMM, OMP, OMR,
OMH, OMS, OMT, OMV, Eaton S, T, J, W, 2K, 4K, 6K, 10K

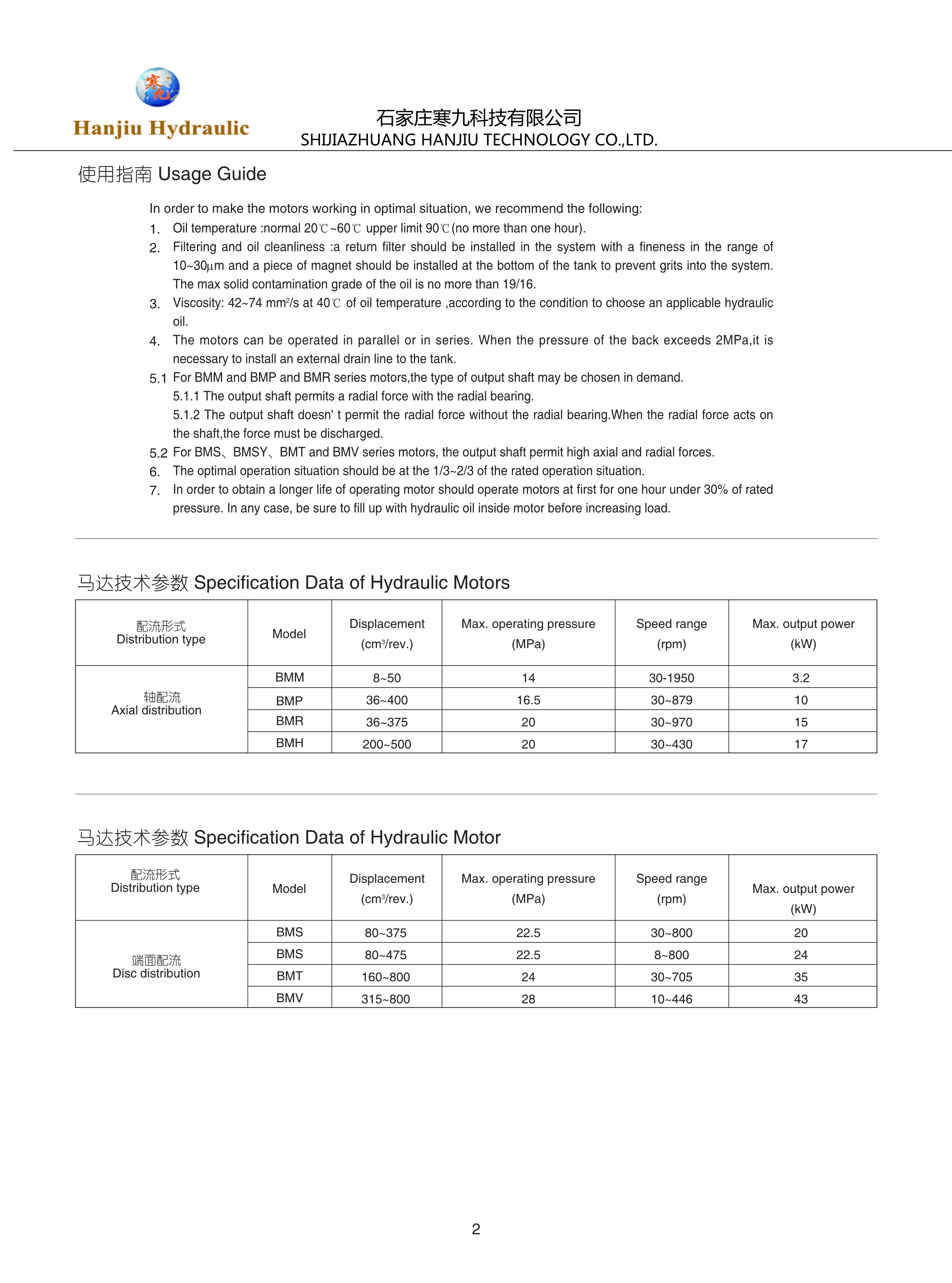

| Distributor type | Model | displacement cm3/rev. | max. operating pressure MPa | Speed range | Max. output power |
| Axial distributor | BMM | 8-50 | 14 | 10-1950 | 3.2 |

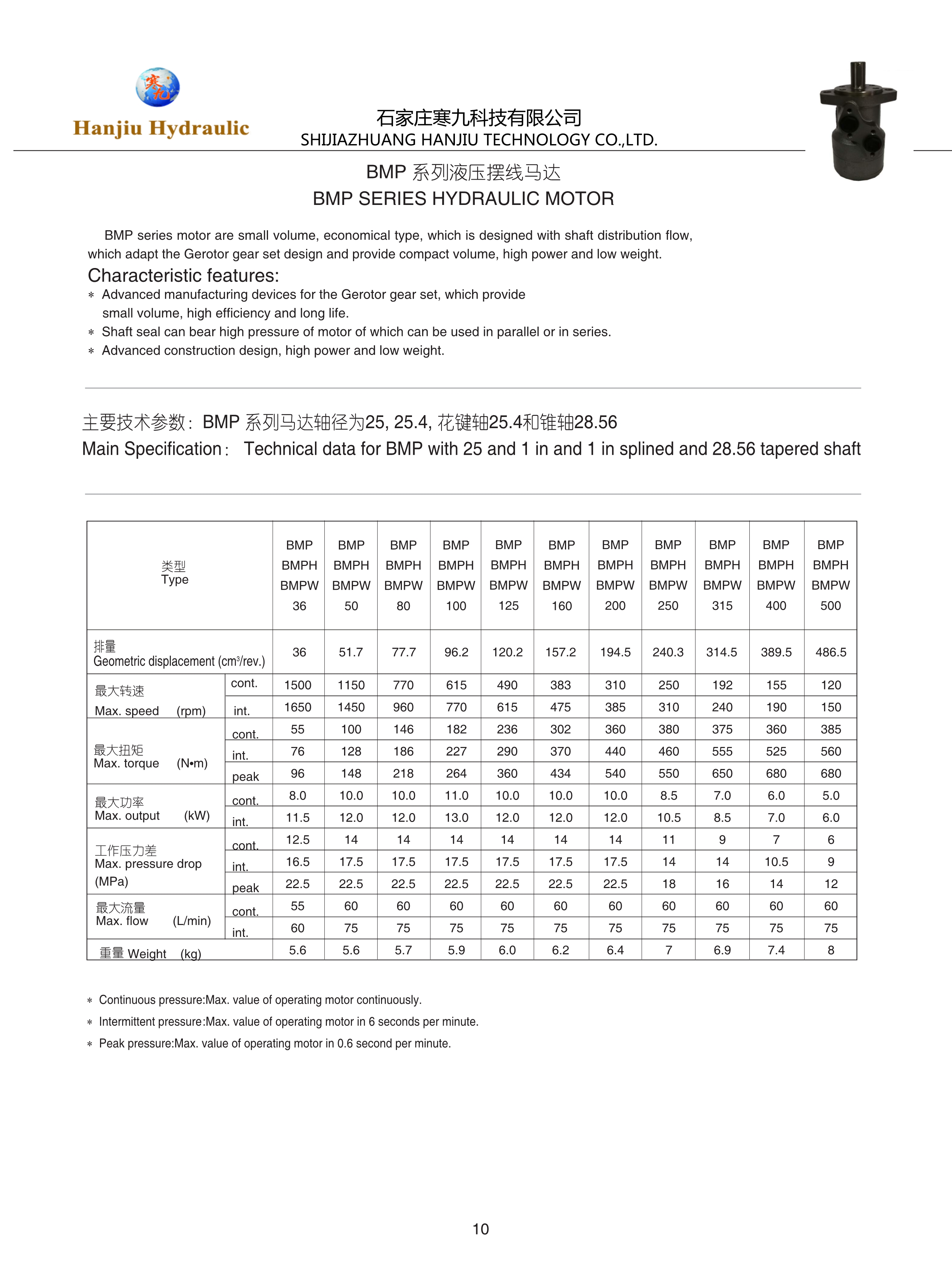

| Axial distributor | BMP | 36-400 | 16.5 | 30-879 | 10 |
| Axial distributor | BMR | 36-400 | 20 | 30-970 | 15 |
| Axial distributor | BMH | 200-750 | 20 | 30-430 | 17 |
| Distributor type | Model | displacement cm3/rev. | max. operating pressure MPa | Speed range | Max. output power |
| Disc distributor | BMS | 80-375 | 22.5 | 30-800 | 20 |
| Disc distributor | BMS | 80-475 | 22.5 | 8-800 | 24 |

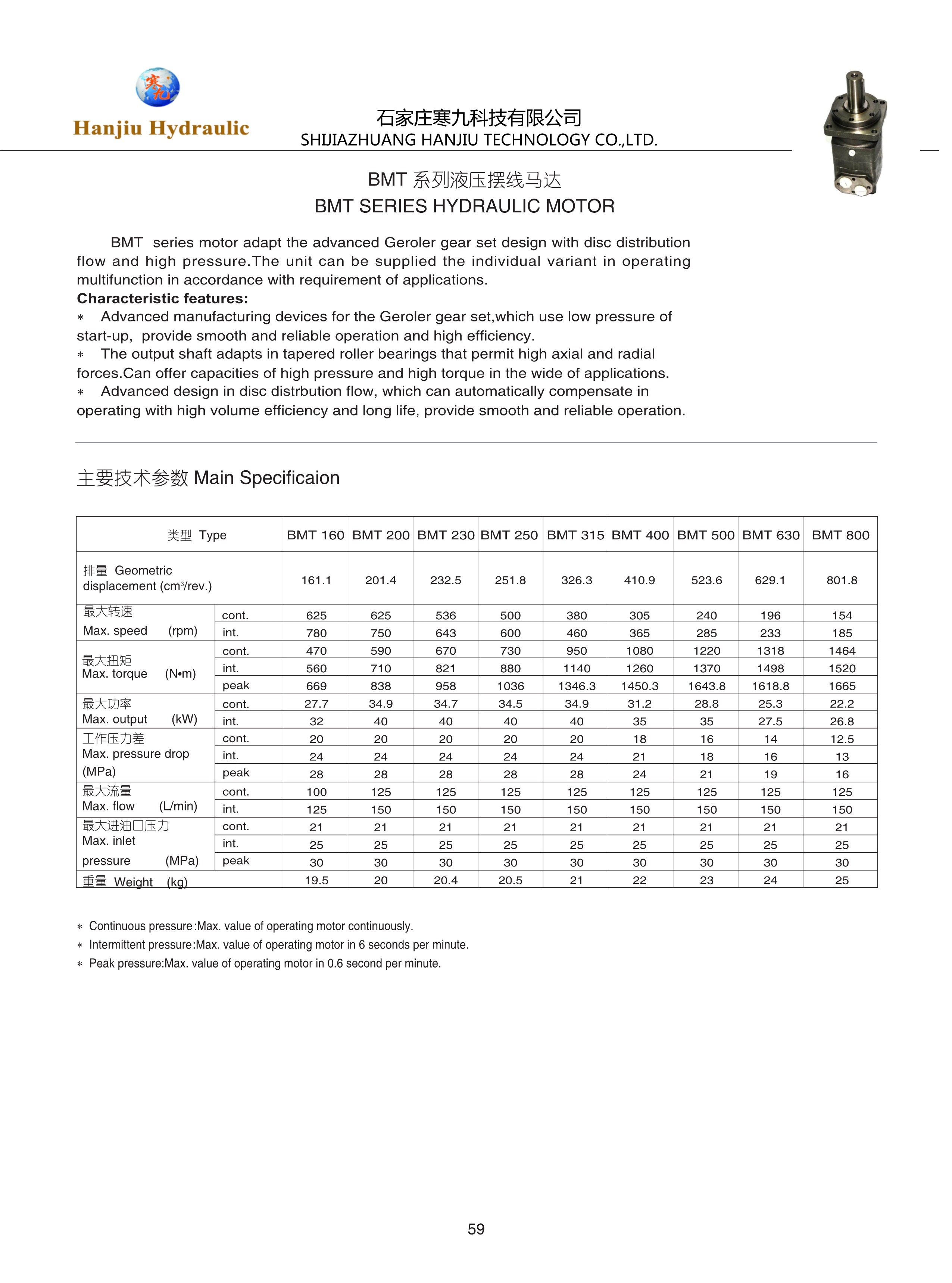

| Disc distributor | BMT | 160-800 | 24 | 30-705 | 35 |
| Disc distributor | BMV | 315-800 | 28 | 10-446 | 43 |
Manufacture introduce :
Hanjiu Technology Co.,ltd. manufactures machine parts and
components

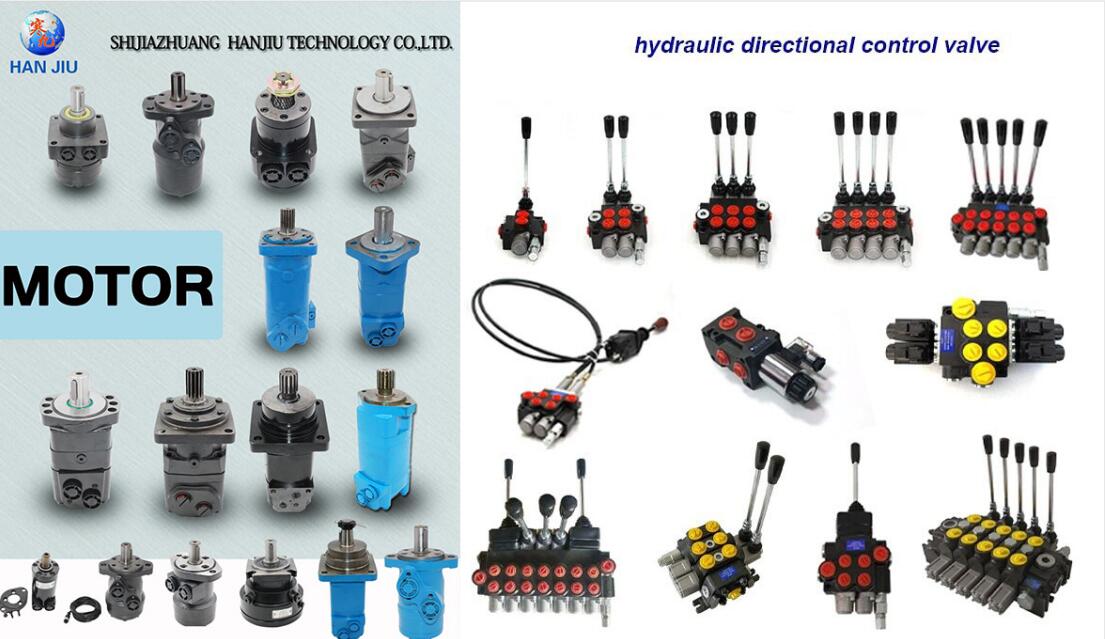

The Company offers hydraulic motors, control valves, joysticks,
pumps and accessories
Hanjiu supplies their parts to Hydraulic Resellers, Hydraulic
Distributors, Hydraulic Machines Manufacturers, Hydraulic Training,
Hydraulic Fluid Tech Research, Hydraulic Repairing, Fluid Power
Manufacturers, Hydraulic Systems Solutions, Fluid Power Solutions
etc.
Some examples and applications of Low Speed High Torque Motors
We are proud of being your solution partner in Hydraulics
Hope our hydraulic knowledge is fortunate to help your business
grow
Please send your inquiry, we will response immediately
