    101-1855-009 Low Speed High Torque Hydraulic Motor Charlynn H Series Medium Motor

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : BMPH / Char Lynn H Series
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T, D/A, D/P, Western Union
    Supply Ability : 80000 Pieces One Year
    • Product Details
    • Company Profile

    101-1855-009 Low Speed High Torque Hydraulic Motor Charlynn H Series Medium Motor


    3.5in3/r Low Speed High Torque Hydraulic Motor 101-1855-009

    charlynn H series medium motor


    Hanjiu Hydraulic Motor BMPH50 = Char-Lynn 101-1855-009 Motor


    Product details:

    typeBMPH
    displacement50cc

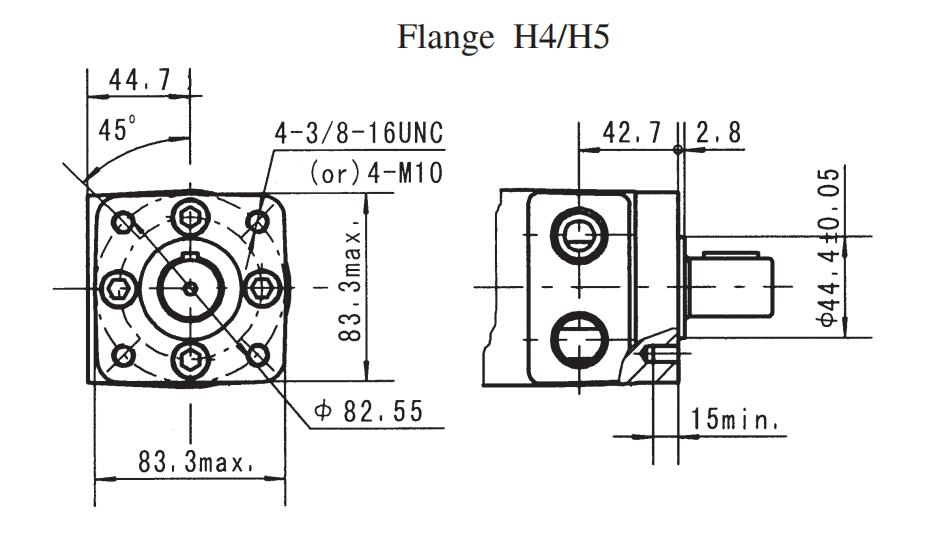

    flange:4-3/8-16 Square-flange , pilot Ø 44.4 2.8
    shaftShaft Ø25.4, cylindrical shaft with pin holeφ10.3/0.406"
    oil port1/2-14 NPTF, 7/16-20UNF

    Designed for medium duty applications, these motors use industry-proven spool valve technology combined with state-of-the-art gerotors. In addition, a wide variety of mounting flanges, shafts, Ports and valving options provide design flexibility. Direction of shaft rotation and shaft speed can be controlled easily and smoothly throughout the speed range of the motor, and equipment can be driven direct, eliminating costly mechanical components.

    Specification:


    TypeBMPH
    36
    BMPH
    50
    BMPH
    80
    BMPH
    100
    BMPH
    125
    BMPH
    160
    BMPH
    200
    BMPH
    250
    BMPH
    315
    BMPH
    400
    BMPH
    500
    Geometric displacement (cm3 /rev.)3651.777.796.2120.2157.2194.5240.3314.5389.5486.5
    Max. speed (rpm)cont.15001150770615490383310250192155120
    int.16501450960770615475385310240190150
    Max. torque (N·m)cont.55100146182236302360460475490430
    int.76128186227290370440570555580560
    peak96148218264360434540670840840780
    Max. output (kW)cont.81010111010108.5766
    int.11.512121312121210.58.577
    Max. pressure drop (MPa)cont.12.514141414141414129.57
    int.16.517.517.517.517.517.517.517.51411.59
    peak22.522.522.522.522.522.522.522.522.51813
    Max. flow (L/min)cont.5560606060606060606060
    int.6075757575757575757575
    Weight (kg)5.665.75.966.26.476.97.48


    We are professional manufacturer produce Hydraulic Orbital Motors,our motors match and Char Lynn and M+S and Brevini motor series
