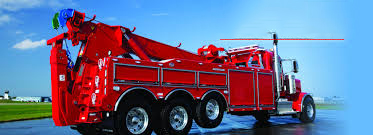

Hydraulic Winch Motor 125cc for winches of wrecker, flatbeds

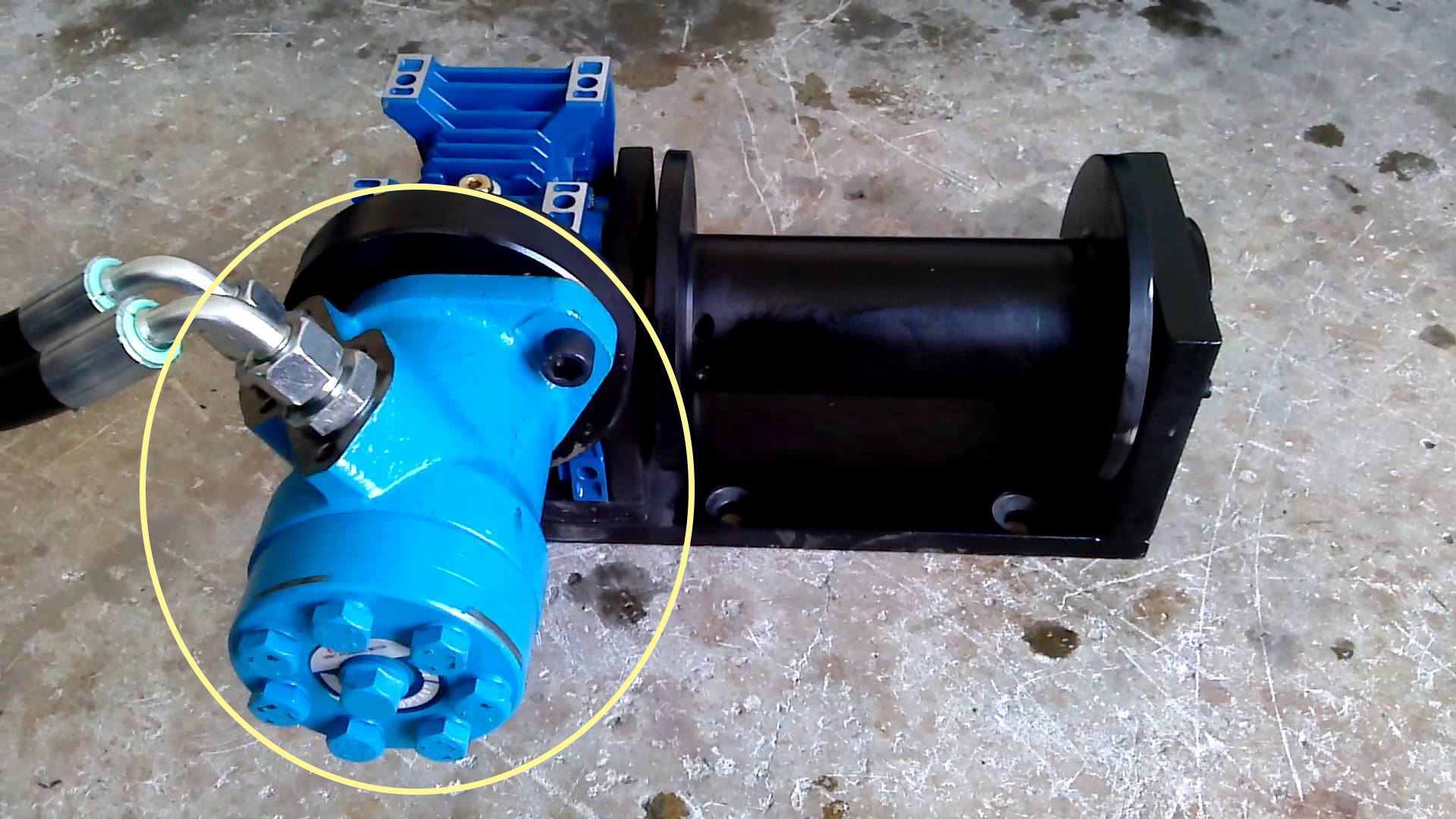

125cc Hydraulic Motor, this motor can be usd for hydraulic winches of wrecker, flatbeds

Quick details:

BMR-125-2AD

Displacement: 125cc

Shaft: straight and flat key

Shaft: 25mm

Ports: G 1/2

TWO-BOLT SAE A FLANGE MOUNTING

The standard mounting is the widely used SAE A two hole flange.

Speed range 10 - 1400 rpm

Max. continuous pressure drop 70 - 175 bar

Max. Continuous torque 45 - 300 Nm

Here is specification:

We supply motors we supply operate on the principle of an internal gear rotating within a fixed external gear. The internal gear transmits the torque generated by the application of pressure from the hydraulic oil fed into the motor which is then delivered via the motors output shaft.

The capacity of the motor you need will depend on factors including the pressure and the flow-rate of the hydraulic pump and the required performance (line speed) of the winch the motor is powering. Please contact us for guidance if in doubt.

Features include:

1. CONSTANT OPERATING TORQUE

Choosing the correct capacity of motor for your particular application will ensure an almost constant output torque across the operating speed range.

1. HIGH STARTING TORQUE

Torques from a stalled condition can be typically 80% of the equivalent running torque, ensuring good starting performance.

More Applications

• Mining conveyers

• Mobile mixer-feeders

• Steel handling equipment

• Ride-on concrete trowels

• Mobile concrete mixing

• Drill rig motors

• Injection molding

• Rock power crushers

• Concrete trowels

• Concrete screed

• Waste recycler

• Marine winches

• Direct wheel drive

– Crop sprayers

– Skid steer

– Harvesters

– Asphalt/concrete paving

machines

– Turf mowers

– All terrain vehicles

Shijiazhuang Hanjiu Technology Co.,ltd. is a professional manufacturer of industrial hydraulic components, located in China - Hebei City. Since 1995, Hanjiu focused on the development and production of full series of hydraulic components, orbit motors, steering orbitrols, directional control valves.

Our products include: GEROLER and GEROTOR motors, hydraulic steering units, directional control valves. More than 50 series, 2000 types. Personalized products and services to provide customers with a significant advantage. Due to the high quality of our products and reliable performance, they are widely used in mobile, industrial, fluid power, dynamic, agricultural, construction, marine, automation, transport, sanitary, etc.

Hanjiu Technology brings together the world's top professional talent and technology, has a highly qualified international personnel. Set from software development to hardware design, system testing, technical services are completed by professional and technical personnel. We have R & D base in Hebei, well-known institutions of higher learning and research institutions at home and abroad, work closely with national patent applications for 63, a number of the core technological achievements and technical indicators at the international advanced level.

To ensure the quality and stability of the machine, we use the most advanced production and testing equipment to check the quality and performance of our hydraulic motors and steering units and valves in each production step to ensure our hydraulic components perfect quality and stable performance.

We provide customers with affordable, high-quality hydraulic components. In order to achieve the advantages of Asia, the full benefit in terms of quality and cost, procurement of key machine from Germany, and the production and manufacturing in China. We have the best supply chain in China and parts manufacturers, and a solid record of quality and innovation, to prove that our 20+-year performance of the hydraulic components

Quality product performance and good reputation, our products are not only successful sales in China, and have been exported to more than 120 countries and regions in the world, including: Germany, Japan, Italy, Spain, Poland, Russia, Belarus, South Korea, Turkey, Egypt, Brazil, Argentina, Chile, India, Australia, the United Arab Emirates, Saudi Arabia, USA, Mexico and other countries, the products are subject to a great welcome and praise.

Our goal is simple: to sell the best hydraulic motors, steering units, valves, components at the best prices, and provides industry-leading customer service. We personally get to know each of our customers, and we know how to discover the most valuable part of our business is Perfect Hydraulics, to help others achieve their goals.

For more detailed information on our hydraulic components, please do not hesitate to contact us! We welcome your inquiries, and look forward to working with you.
