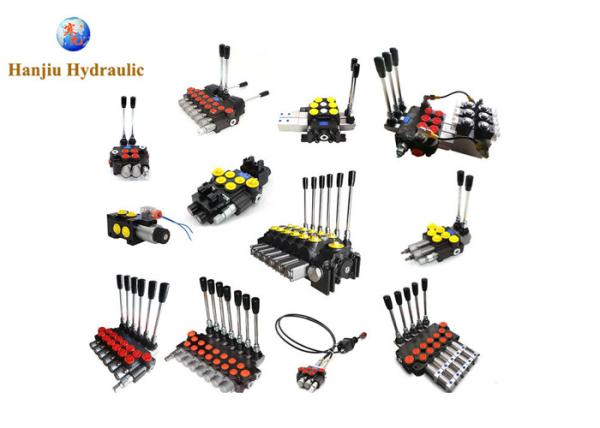

Hydraulic Directional Valve 20 lpm - 200 lpm 1 lever - 12 lever

Hydraulic Direction Valve: According to the purpose is divided into one-way valve and directional valve.

(1) one-way valve: only allow the fluid in the pipeline one-way connected, the reverse is cut off.

(2) directional valve: change the connection between different pipelines, according to the valve core in the valve body in the working position of two, three, etc.. According to the number of channels controlled by the two, three, four, five, etc., such as two two, three three, three five according to the spool drive, such as separation, maneuvering, electromagnetic, hydraulic, etc.

Our company provides Hydraulic Directional Valves

According to the structure, it can be divided into Monoblock type and Sectional type

*** for high pressure hydraulic system, such as drilling machine, sanitation, etc.

*** Manual, Joystick, Cable, Pneumatic, Solenoid, Electro-Pneumatic, Electro-hydraulic

*** Monoblock, Sectional

*** 20 liters -200 liters, 1 Spool to 12 spool

Product Characteristics:

Innovative Designs
Professional Quality

Compact structure
Reliable work
High security

Customer Satisfaction

There are several other factors to consider when ordering:

1. Type of valve

2. Flow rate of valve

3. Valve pressure

4. Control mode of valve

5. Structure, installation and connection of the valve

6. Replacability. For example, whether the components of the original equipment are replaceable

7. Reputation, service life, maintenance convenience and supply of products

8. Dielectric compatibility

9. Interface size

10, the weight

11, the price

• Auxiliary valve:over load valve, anti-cavitation valve,combined valves, etc.
• Spool function:A, O, Y, P, etc.
• Control type:manual, pneumatic, electro-hydraulic, electro-pneumatic, etc.
• Circuit type:parallel,series-parallel
• C port(oil bridge) as hydraulic source for other parts
• Structure:Sectional

P40 series valves with middle-high pressure monoblock construction is developed based on Europe
technology.

Ports thread

Functions and features

1. Compact size, light and handy structure, small weight, simple operation and safety & reliability;

2. Work group number can be added according to demand, 7 spools at most.

3. Complete configuration of primary and secondary overflow valves; Opening pressure to be adjusted as required by

customers;

4. Series-parallel connection structure and external load retaining valve ensure that the actuating mechanism with higher load will not fall in operation.

5. Modules with different functions on the valve group can realize the switchover between single and dual pumps to improve working efficiency and save energy consumption.

Hanjiu: a professional hydraulic components manufacture in China,our main products are hydraulic motors/steering units/monoblock control valves/gear pumps, we have a rapid development in such a short time due to the high quality prodcuts,competitive price,stable delivery and best after sales service.

No matter what hydraulic directional valve you need, give us a call with your inquiry

Shijiazhuang Hanjiu Technology Co.,ltd. is a professional manufacturer of industrial hydraulic components, located in China - Hebei City. Since 1995, Hanjiu focused on the development and production of full series of hydraulic components, orbit motors, steering orbitrols, directional control valves.

Our products include: GEROLER and GEROTOR motors, hydraulic steering units, directional control valves. More than 50 series, 2000 types. Personalized products and services to provide customers with a significant advantage. Due to the high quality of our products and reliable performance, they are widely used in mobile, industrial, fluid power, dynamic, agricultural, construction, marine, automation, transport, sanitary, etc.

Hanjiu Technology brings together the world's top professional talent and technology, has a highly qualified international personnel. Set from software development to hardware design, system testing, technical services are completed by professional and technical personnel. We have R & D base in Hebei, well-known institutions of higher learning and research institutions at home and abroad, work closely with national patent applications for 63, a number of the core technological achievements and technical indicators at the international advanced level.

To ensure the quality and stability of the machine, we use the most advanced production and testing equipment to check the quality and performance of our hydraulic motors and steering units and valves in each production step to ensure our hydraulic components perfect quality and stable performance.

We provide customers with affordable, high-quality hydraulic components. In order to achieve the advantages of Asia, the full benefit in terms of quality and cost, procurement of key machine from Germany, and the production and manufacturing in China. We have the best supply chain in China and parts manufacturers, and a solid record of quality and innovation, to prove that our 20+-year performance of the hydraulic components

Quality product performance and good reputation, our products are not only successful sales in China, and have been exported to more than 120 countries and regions in the world, including: Germany, Japan, Italy, Spain, Poland, Russia, Belarus, South Korea, Turkey, Egypt, Brazil, Argentina, Chile, India, Australia, the United Arab Emirates, Saudi Arabia, USA, Mexico and other countries, the products are subject to a great welcome and praise.

Our goal is simple: to sell the best hydraulic motors, steering units, valves, components at the best prices, and provides industry-leading customer service. We personally get to know each of our customers, and we know how to discover the most valuable part of our business is Perfect Hydraulics, to help others achieve their goals.

For more detailed information on our hydraulic components, please do not hesitate to contact us! We welcome your inquiries, and look forward to working with you.
