MSQ SH Atlas Copco COP1838 Spare Parts OEM 3115347383 M+S Hydraulic Motors

Shijiazhuang Hanjiu Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap MSQ SH Atlas Copco COP1838 Spare Parts OEM 3115347383 M+S Hydraulic Motors from wholesalers

    Buy cheap MSQ SH Atlas Copco COP1838 Spare Parts OEM 3115347383 M+S Hydraulic Motors from wholesalers
    • Buy cheap MSQ SH Atlas Copco COP1838 Spare Parts OEM 3115347383 M+S Hydraulic Motors from wholesalers
    • Buy cheap MSQ SH Atlas Copco COP1838 Spare Parts OEM 3115347383 M+S Hydraulic Motors from wholesalers
    • Buy cheap MSQ SH Atlas Copco COP1838 Spare Parts OEM 3115347383 M+S Hydraulic Motors from wholesalers
    • Buy cheap MSQ SH Atlas Copco COP1838 Spare Parts OEM 3115347383 M+S Hydraulic Motors from wholesalers

    MSQ SH Atlas Copco COP1838 Spare Parts OEM 3115347383 M+S Hydraulic Motors

    Ask Lasest Price
    Brand Name : HANJIU CHINA
    Model Number : BMSY
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, Payple
    Supply Ability : 100000 pieces per year
    Delivery Time : 25 - 35 work days
    • Product Details
    • Company Profile

    MSQ SH Atlas Copco COP1838 Spare Parts OEM 3115347383 M+S Hydraulic Motors

    M+S hydraulic motors MSQ SH Atlas Copco COP1838 spare parts OEM number 3115347383


    This type of hydraulic motors widely used on ATLAS COPCO ROCK DRILLS, details as below


    ATLAS COPCO COP1840-COP1838ME-COP1838HD DRIFTERS


    HYDRAULIC MSQ160 ROTATION ENGINE -3115347383


    also supply below OEM parts


    3115347380

    3115347381

    3115347383

    3115347385


    This product’s features are as follows:


    • brand HANJIU
    • interchangeable hydraulic motor MSQ_SH by M+S
    • selectable displacement: 80 ccm/REV – 565 ccm/REV
    • ports (side): G 1/2’’

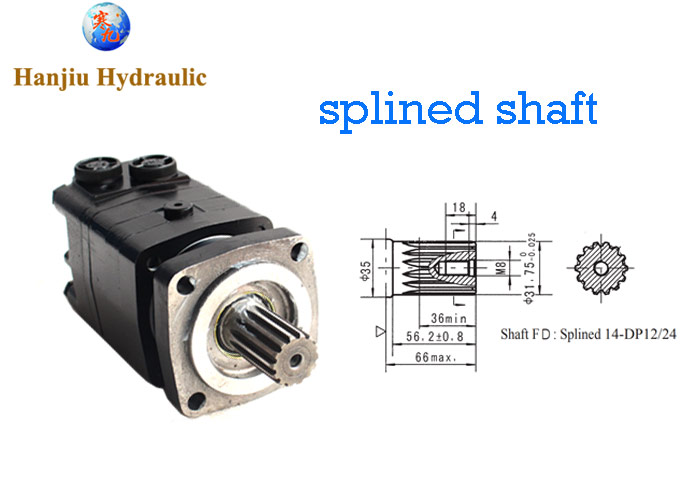

    • shaft: Ø 1 1/4‘‘ splined, 14T ANS B92.1-1970
    • square flange
    • internal check valve
    • usage without drain line possible
    • OEM quality, made in Europe
    • optimised for small spaces

    BMSY introduction:


    This motor is a hydraulic disc motor, because it's widely used on kind of drills of Agricultural,Farm, Construction, Industrial and heavy machineries. it has numerous applications at any rolling, lifting, conveying applications. It's also called orbit hydraulic motor, or orbital motor, or Low Speed High Torque type motor, also disc valve hydraulic motors.


    Main Specifications:
    TypeBMSY
    BMSE
    80
    BMSY
    BMSE
    100
    BMSY
    BMSE
    125
    BMSY
    BMSE
    160
    BMSY
    BMSE
    200
    BMSY
    BMSE
    250
    BMSY
    BMSE
    315
    BMSY
    BMSE
    375
    Geometric displacement
    (cm3 /rev.)
    80.6100.8125157.2200252314.5370
    Max. speed (rpm)cont.800748600470375300240200
    int.988900720560450360280240
    Max. torque (N·m)cont.190240310316400450560536
    int.240300370430466540658645
    peak260320400472650690740751
    Max. output (kW)cont.15.918.819.515.615.714.114.111.8
    int.20.123.523.221.218.31718.917
    Max. pressure drop (MPa)cont.17.517.517.5151412.51210
    int.2121212116161412
    peak22.522.522.522.522.52018.514
    Max. flow (L/min)cont.6575757575757575
    int.8090909090909090
    Max. inlet pressure (MPa)cont.2525252525252525
    int.3030303030303030
    Weight (kg)9.81010.310.711.111.612.312.6

    * Continuous pressure :Max. value of operating motor continuously.
    * Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
    * Peak pressure:Max. value of operating motor in 0.6 second per minute.

    BMSY
    BMSYS
    160
    BMSY
    BMSYS
    80
    BMSY
    BMSYS
    100
    BMSY
    BMSYS
    125
    BMSY
    BMSYS
    200
    BMSY
    BMSYS
    250
    BMSY
    BMSYS
    315
    BMSY
    BMSYS
    400
    BMSY
    BMSYS
    475


    How to work with Hanjiu Technology?


    Inorder to make you better understand how to work with us, here i give you the steps:

    • discuss your demand with us first
    • we help you to confirm the products
    • match with our models
    • discuss your demand quantity with us, this will help us to provide you our best offer
    • we make a deal on the offer
    • sign a contract
    • you pay deposit
    • we produce
    • you pay balance payment after order ready for shipping
    • dispatch order
    • Payment terms: 30% deposit, 70% balance should be paid before shipping
    • Shipping: by sea, by air, by train
    • Terms: FOB, CFR, CIF
    • Loading port: Tianjin, Qingdao, Shanghai, Ningbo, China

    What is you warranty period?


    For your further better understand that after-sale service we are offering, here i give you the details:

    • each item supplied by 'Hanjiu' will be tested on it's testing plant at least twice
    • each item supplied by 'Hanjiu' will be with a quality certificate
    • charge-free products, parts and services will be provided if any failures or defects of the contractual product in normal operation condition within the warranty period.
    • all of our product practice protect the quality 1 year.
