    Mobile Hopper Parts BMP 36-500cc Hydraulic Torque Motor

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : BMP/OMP Motors
    Certification : CE
    Price : Negotiable
    Supply Ability : 90000 Pieces One Year
    • Product Details
    • Company Profile

    Mobile Hopper Parts BMP 36-500cc Hydraulic Torque Motor

    mobile hopper hydraulic system hydraulic orbital motor BMP OMP hydraulic drive

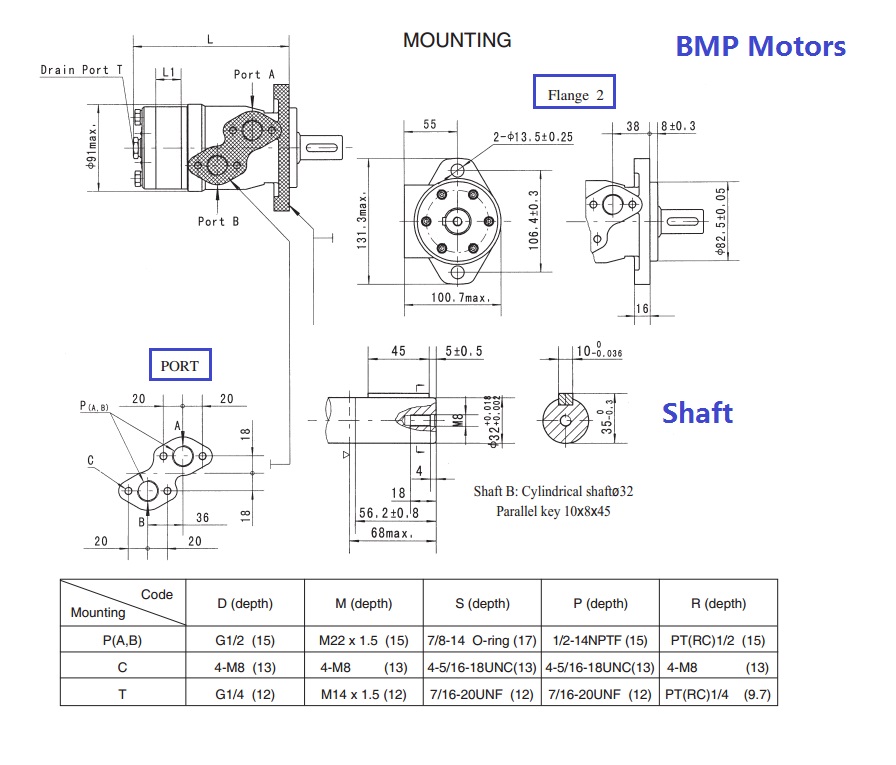

    MOUNTING DIMENSIONS OF BMP HYDRAULIC ORBIT MOTOR
    DisplacementOMP36, OMP50, OMP80, OMP100, OMP125, OMP160, OMP200, OMP250, OMP315, OMP400,OMP500
    ShaftCylindrical Shaft Ø25, Ø25.4, Ø31.75,Ø32,SAE 6B,Splined 14-DP12/24
    PortsG1/2 Manifold 4-M8, G1/4. 7/8-14 O-ring manifold 4x5/16-18UNC,7/16-20UNF;1/2-14NPTF manifold 4x5/16-18UNC,7/16-20UNF
    Flange2-Ø13.5 Rhomb-flange pilot Ø82.5x8, 4-3/8-16 Square-flange, pilot Ø44.4x2.8
    Applicationsharvesters,drilling rig,winch,fishing net machines,hoppers
    WarrantyOne year

    ► Characteristic Features

    Hydraulic Motor BMP same as OMP and M+S MP Motors

    1. Low pressure of start up, provide smooth reliable operation and high efficiency.


    2. Special design in the driver-linker and prolong operating life.


    3. Compact volume and easy installation.


    4. High pressure oil seals


    5. The output shaft with the deep groove ball bearing, can bear certain axial force and radial force.



    ► Specification


    BMP / OMP Motors


    TypeBMP
    36
    BMP
    50
    BMP
    80
    BMP
    100
    BMP
    125
    BMP
    160
    BMP
    200
    BMP
    250
    BMP
    315
    BMP
    400
    BMP
    500
    Geometric displacement (cm3 /rev.)3651.777.796.2120.2157.2194.5240.3314.5389.5486.5
    Max. speed (rpm)cont.15001150770615490383310250192155120
    int.16501450960770615475385310240190150
    Max. torque (N·m)cont.55100146182236302360380375360385
    int.76128186227290370440460555525560
    peak96148218264360434540550650680680
    Max. output (kW)cont.81010111010108.5765
    int.11.512121312121210.58.576
    Max. pressure drop (MPa)cont.12.514141414141411976
    int.16.517.517.517.517.517.517.5141410.59
    peak22.522.522.522.522.522.522.518161412
    Max. flow (L/min)cont.5560606060606060606060
    int.6075757575757575757575
    Weight (kg)5.65.65.75.966.26.476.97.48


    ► Application

    Hydraulic Motor BMP Used For Agricultural forestry and orchard equipment

    1. Vineyard Sweeper


    2. Pruning Sweeper


    3. Agricultural and forest machinery


    4. Shovels


    5. Garden seeders


    6. Sickles


    7. Grape scissors


    8. Secateurs


    9. High wheel cultivators


    We are proud of being your solution partner in hydraulics.


    Strong at alternative , Eaton Char-lynn, Parker, M+S, industiral, mobile, agri, marine parts,

    able to support your business with more & better hydraulic solutions
