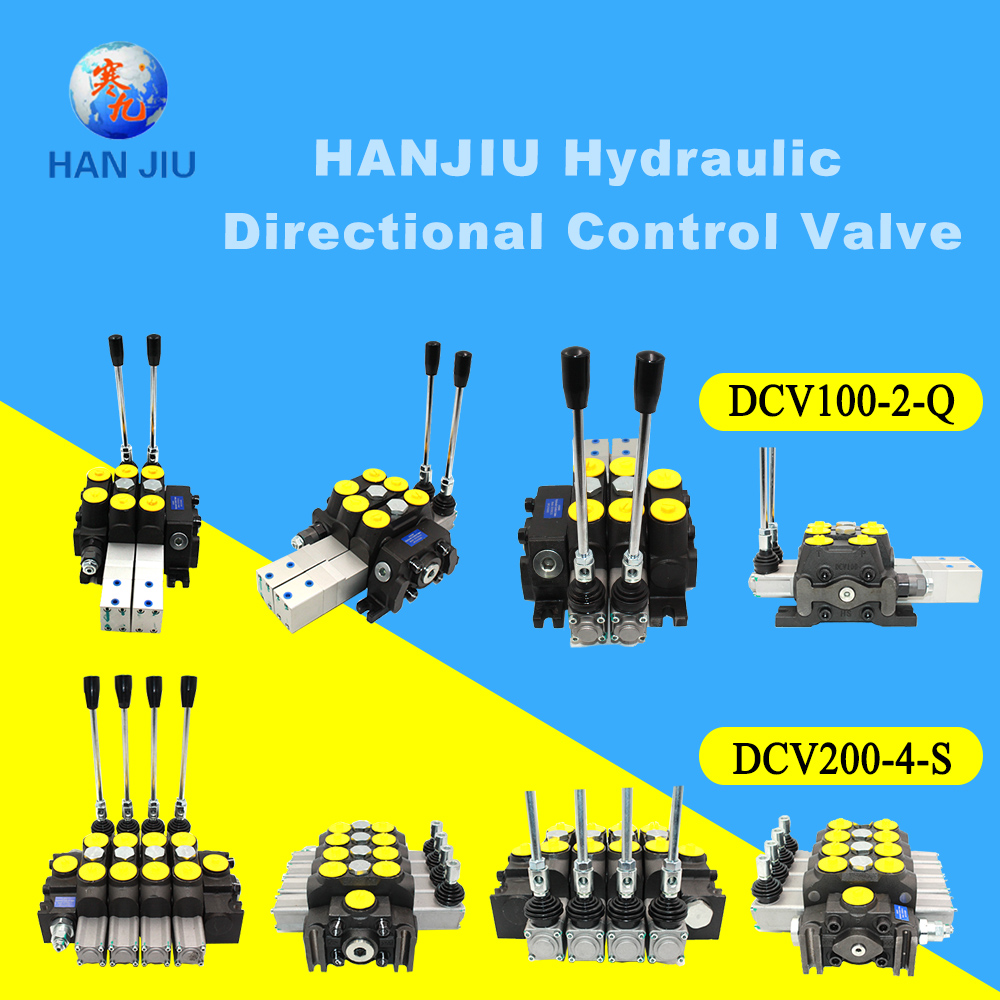

    Dcv 26 Gallon 4 Banks 250bar Directional Control Valve

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : DCV100
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 300000 sets per year
    Delivery Time : 10-15 work days
    • Product Details
    • Company Profile

    Dcv 26 Gallon 4 Banks 250bar Directional Control Valve

    Sectional Hydraulic Pneumatic Control Valve DCV 26gallon 4banks high pressure


    DCV directional control valve have the features of high pressure, compact construct, stable over load valve
    performance and high universality.It is widely used on construction machine,sanitation vehicle, drilling machine, special purpose vehicle, etc.
    Like mobile crushers,mobile screens,crusher screen ,track pugmill mobile cement silo, track blender , track conveyors,wheel conveyors, feed hoppers,conveyor systerms, truck mounted cranes,hoists, grab bucket cranes....
    • Auxiliary valve:over load valve, anti-cavitation valve,combined valves, etc.
    • Spool function:A, O, Y, P, etc.
    • Control type:manual, pneumatic, electro-hydraulic, electro-pneumatic, etc.
    • Circuit type:parallel,series-parallel
    • C port(oil bridge) as hydraulic source for other parts
    • Structure:Sectional

    Specificatioins


    Norminal Flow
    100L/min
    Max Flow
    26gallon
    Max Pressure
    31.5mpa
    Control Type
    manual, pneumatic, hydraulic, electro-hydraulic
    Allowed back pressure
    ≤1 mpa
    Oil port size
    customizable
    operating range15-75mm2/s
    viscositymin 12mm2/s, max 400mm2/s
    ambient temperature range-40-80°C
    structuresectional 1-12sections


    oil ports

    BSP ThreadMetric threadUS standard UNF threadUS standard NTP thread
    codeThread sizecodeThread sizecodeThread sizecodeThread size
    G04G1/4M16M16X1.5U081/2-20UNFN04NPT1/4
    G06G3/8M18M18X1.5U105/8-12UNFN06NPT3/8
    G08G1/2M20M20X1.5U123/4-16UNFN08NPT1/2
    G12G3/4M22M22X1.5U161-12UNFN12NPT3/4
    G16G1M27M27X2U2211/8-12UNFN16NPT1
    M33M33X2

    spool functional




    Other choice



    Hanjiu: a professional hydraulic components manufacture in China,our main products are hydraulic motors/steering units/monoblock control valves/gear pumps, we have a rapid development in such a short time due to the high quality prodcuts,competitive price,stable delivery and best after sales service.

    We are proud of being your solution partner in hydraulics.


    Strong at alternative, Eaton Char-lynn, Parker, M+S, industiral, mobile, agricultural, marine parts,

    be able to support your business with more & better hydraulic solutions
