    80liters 5P80 Relief Valve Set Pressure manual hydraulic directional control valves

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : 5p80
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 300000 sets per year
    Delivery Time : 10-15 work days
    • Product Details
    • Company Profile

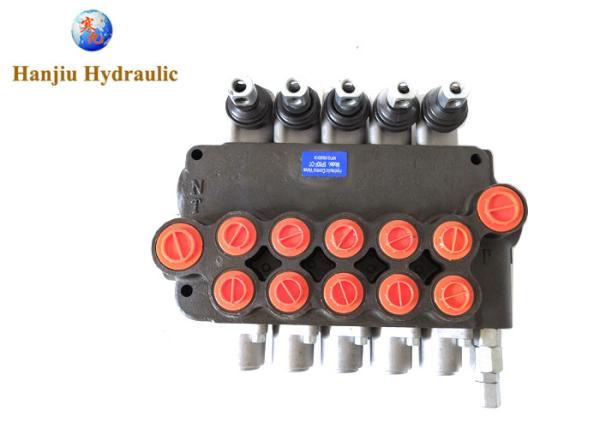

    80liters 5P80 Relief Valve Set Pressure manual hydraulic directional control valves


    manual hydraulic directional control valves 5 spool hydraulic control valve 80liters



    Ambient temperature-40C...+60C
    Viscosity12 ...800 mm2/s
    Fluid temperature-15C...+80C
    Filtration10 to NAS 1638
    Max operating pressure250bar
    Back pressure50 bar
    Nominal flow80 l/min
    Leakage(A,B-T)15cm3/min at 120bar
    Spool stroke6 mm
    Actuating force< 200 N
    Modification/ Spoolswith 1 to 7
    Specifications
    • Construction = Monoblock
    • Material of Construction = Steel
    • No. of Spools = 5
    • Material of Construction = Hardened Steel
    • O-rings made of NBR (Buna-N®)
    • Max Flow Rate = 80 liters/min (20 Gallons per Minute)
    • Max Working Pressure = 315 Bar (4750 PSI)
    • Spool Type = Cylinder. Motor Spools also available
    • Spool Movement = Lever action, Spring Return to Center.
    • Built in Relief Valve = Adjustable (factory set at 2500 PSI)
    • Ports Sizes
    • Pressure Port 1/2" BSPP
    • Cylinder Ports 1/2" BSPP
    • Tank Port 3/4" BSPP
    • C port 3/4" BSPP
    • Operating temperature range: -20 °C to + 80°C
    • Dimensions = L x W x H = 165 x 147 x 100 mm

    How to choose monoblock valves?


    P XX-X-X-X-XXX-XXX...-X-X

    ① ② ③ ④ ⑤⑥⑦ ⑤⑥⑦ ⑧ ⑨

    ① flow:40,80

    ② number of sections:1-8

    ③ relief valve set pressure:100-250bar

    ④ inlet port size: see table(1)

    ⑤ control type see table(2)

    ⑥spool type

    ⑦spool returing type

    ⑧work port size see table(1)

    ⑨outlet port size see table(1)


    PORTS table(1)

    BSP ThreadMetric threadUS standard UNF threadUS standard NTP thread
    codeThread sizecodeThread sizecodeThread sizecodeThread size
    G04G1/4M16M16X1.5U105/8-12UNFN06NPT3/8
    G06G3/8M18M18X1.5U123/4-16UNFN08NPT1/2
    G08G1/2M20M20X1.5U147/8-14UNFN12NPT3/4
    G12G3/4M22M22X1.5U161-12UNF
    M27M27X2





    Hanjiu: a professional hydraulic components manufacture in China,our main products are hydraulic motors/steering units/monoblock control valves/gear pumps, we have a rapid development in such a short time due to the high quality prodcuts,competitive price,stable delivery and best after sales service.
