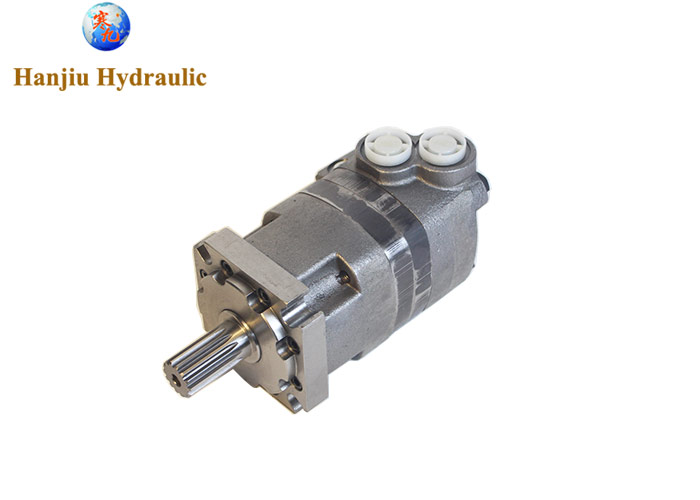

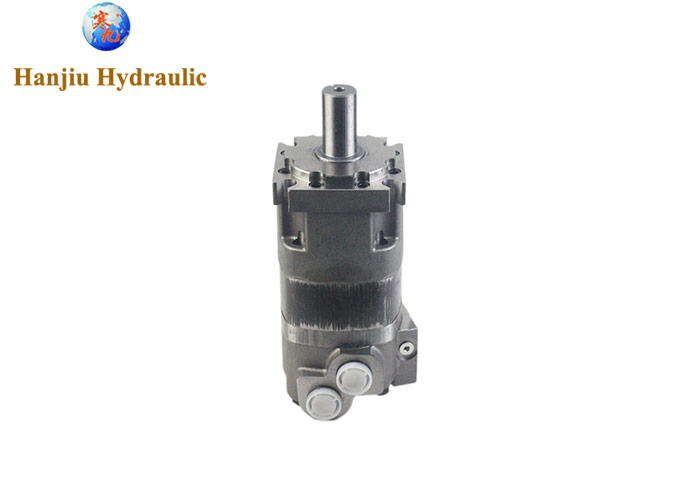

    New Hydraulic Motor For Eaton Char-Lynn 4000 Series 1091106 109-1106-006

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : 4000 series
    Certification : ISO 2015:9001
    Price : Start from 500 usd
    Payment Terms : L/C, T/T, Western Union, Western Union
    Supply Ability : 300000 sets per year
    Delivery Time : 15 - 45 work days
    • Product Details
    • Company Profile

    New Hydraulic Motor For Eaton Char-Lynn 4000 Series 1091106 109-1106-006


    New Hydraulic Motor For Eaton Char-Lynn 4000 Series 1091106,109-1106-006


    Specification

    Condition: Brand new
    Color: Black
    Material: Iron
    Displacement: 395cm3/r/24.0in3/r
    Mounting type: 4 bolt std
    Shaft: 1.25 straight woodruff key
    Port Size: 1 1/16-12inch o-ring Staggered
    Fitment type: Direct replacement


    Product details:

    MOUNTING TYPE4 Bolt SAE B
    PORT TYPESplit Flange
    DISPLACEMENT (IN3/REV)24.00 cu in/rev
    SHAFT SIZE & TYPE1-1/4 in. Straight Keyed Shaft
    RPM [MAX]582 rpm
    MOUNT TYPE4 Bolt
    OUTPUT TORQUE AT RATED PSI (INCH/POUNDS)4290 in lb
    SHAFT TYPEKey shaft
    MOTOR TYPEDisc Valve
    MOUNTING HOLES0.58 in
    FLANGE ORIENTATIONStandard
    DRAINSAE-4 w/Check Valve
    DUTYStandard-Duty
    MOTOR ELEMENTGeroler
    SERIES4000 Series
    ROTATIONStandard Rotation
    FLOW RATE25 gal/min
    PORT SIZE1-1/16-12 St.Thd. O-Ring
    PILOT DIAMETER4 in
    PORT LOCATIONSide Port
    BOLT CIRCLE DIA.5 in
    MOUNTING HOLE SIZE0.58 in
    SEAL MATERIALBuna-N
    INLET PRESSURE [MAX]4500 psi
    CORROSION RESISTANTNo
    PAINT/PACKAGINGIndividual Box
    MAXIMUM SPEED @ CONTINUOUS FLOW582 rpm @ 25 gal/min
    SPECIAL FEATURESNone
    PAINT CODEblack
    WEIGHT57.0 LB


    109-1001-006
    109-1002-006
    109-1003-006
    109-1006-006
    109-1008-006
    109-1011-006
    109-1012-006
    109-1013-006
    109-1052-006
    109-1053-006
    109-1054-006
    109-1055-006
    109-1056-006
    109-1057-006
    109-1059-006
    109-1061-006
    109-1062-006
    109-1063-006
    109-1064-006
    109-1065-006
    109-1087-006
    109-1094-006
    109-1100-006
    109-1101-006
    109-1102-006
    109-1103-006
    109-1104-006
    109-1105-006
    109-1106-006
    109-1107-006
    109-1108-006
    109-1109-006
    109-1110-006
    109-1111-006
    109-1112-006
    109-1113-006
    109-1114-006
    109-1115-006
    109-1116-006
    109-1117-006
    109-1118-006
    109-1119-006
    109-1120-006
    109-1154-006
    109-1155-006
    109-1156-006
    109-1157-006
    109-1158-006
    109-1159-006
    109-1160-006
    109-1173-006
    109-1184-006
    109-1185-006
    109-1189-006
    109-1190-006
    109-1191-006
    109-1192-006
    109-1193-006
    109-1194-006
    109-1195-006
    109-1196-006
    109-1203-006
    109-1204-006
    109-1207-006
    109-1208-006
    109-1211-006
    109-1212-006
    109-1215-006
    109-1220-006
    109-1224-006
    109-1225-006
    109-1227-006
    109-1231-006
    109-1233-006
    109-1234-006
    109-1236-006
    109-1238-006
    109-1245-006
    109-1246-006
    109-1247-006
    109-1248-006
    109-1252-006
    109-1254-006
    109-1260-006
    109-1263-006
    109-1264-006
    109-1267-006
    109-1269-006
    109-1278-006
    109-1280-006
    109-1286-006
    109-1287-006
    109-1293-006
    109-1295-006
    109-1296-006
    109-1304-006
    109-1305-006
    109-1309-006
    109-1311-006
    109-1314-006
    109-1316-006
    109-1317-006
    109-1318-006
    109-1337-006
    109-1339-006


    When selecting a Geroler motor, it's crucial to carefully consider the required torque output for your specific application.

    Factors such as load, speed, and operating conditions should be taken into account to ensure optimal performance.

    In summary, Geroler motors are exceptional performers when it comes to torque. Their ability to deliver high torque at low speeds makes them a valuable asset in various industries demanding powerful rotational force.


    Would you like to explore specific Geroler motor models or discuss torque requirements for a particular application


    Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems
