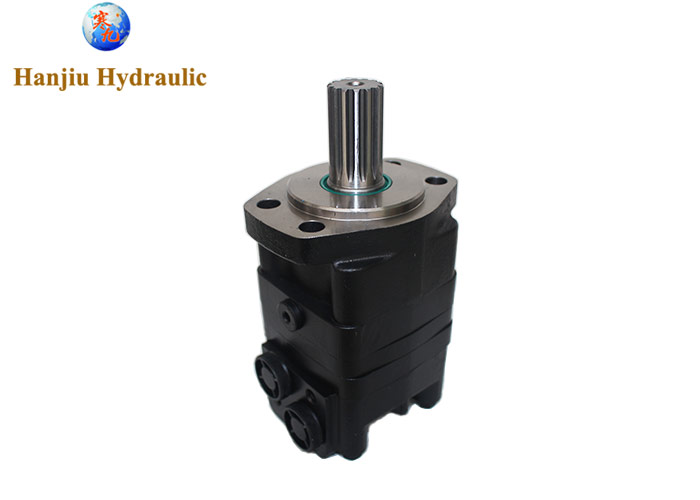

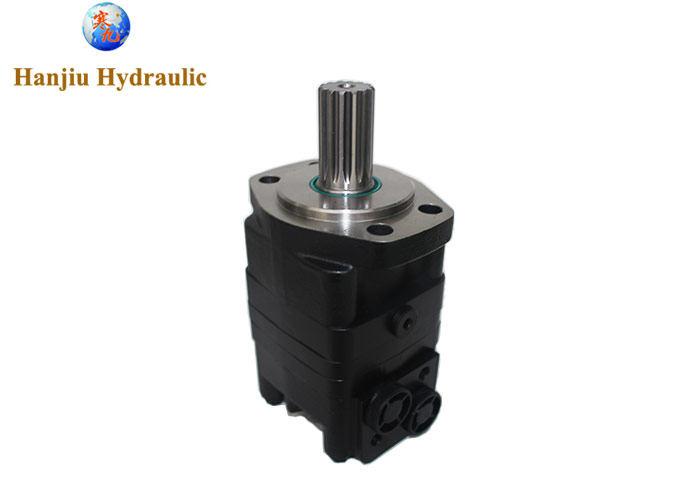

    BMSY Hydraulic Motor BMSY-80-E6-FD-D 80ml/r Magneto Mount Four Holes 14 Teeth Spline Shaft With BSPP Ports

    Ask Lasest Price
    Brand Name : HANJIU CHINA
    Model Number : BMSY-80-E6-FD-D
    Certification : CE
    Price : Contact the seller to ask
    Payment Terms : L/C, D/A, T/T, Western Union, Payple
    Supply Ability : 100000 pieces per year
    Delivery Time : 25 - 35 work days
    • Product Details
    • Company Profile

    BMSY Hydraulic Motor BMSY-80-E6-FD-D 80ml/r Magneto Mount Four Holes 14 Teeth Spline Shaft With BSPP Ports


    BMSY Hydraulic Motor, BMSY-80-E6-FD-D,80ml/r, Magneto mount, four holes, 14teeth spline shaft, with BSPP ports


    Product details:


    Displacement:80cc

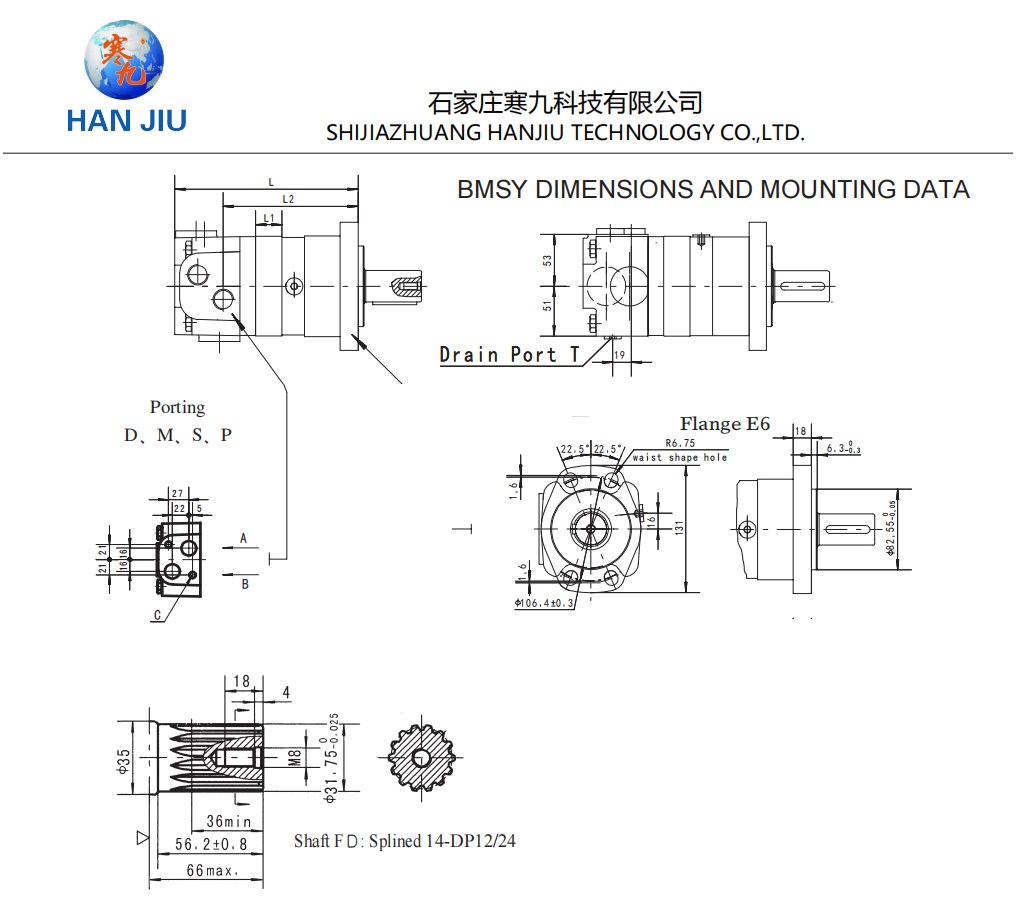

    Flange:4-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×6.3


    Shaft:Long Shaft Ø31.75 ,splined key 14-DP12/24

    Ports:G1/2 Manifold Mount,2-M10 , G1/4


    Special feture:the ports to be oriented inline with one of the mounting bolts


    BMSY introduction:


    This motor is a hydraulic disc motor, because it's widely used on kind of drills of Agricultural,Farm, Construction, Industrial and heavy machineries. it has numerous applications at any rolling, lifting, conveying applications. It's also called orbit hydraulic motor, or orbital motor, or Low Speed High Torque type motor, also disc valve hydraulic motors.



    Main Specifications:

    TypeBMSY
    80
    BMSY
    100
    BMSY
    125
    BMSY
    160
    BMSY
    200
    BMSY
    250
    BMSY
    315
    BMSY
    375
    Geometric displacement
    (cm3 /rev.)
    80.6100.8125157.2200252314.5370
    Max. speed (rpm)cont.800748600470375300240200
    int.988900720560450360280240
    Max. torque (N·m)cont.190240310316400450560536
    int.240300370430466540658645
    peak260320400472650690740751
    Max. output (kW)cont.15.918.819.515.615.714.114.111.8
    int.20.123.523.221.218.31718.917
    Max. pressure drop (MPa)cont.17.517.517.5151412.51210
    int.2121212116161412
    peak22.522.522.522.522.52018.514
    Max. flow (L/min)cont.6575757575757575
    int.8090909090909090
    Max. inlet pressure (MPa)cont.2525252525252525
    int.3030303030303030
    Weight (kg)9.81010.310.711.111.612.312.6

    * Continuous pressure :Max. value of operating motor continuously.
    * Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
    * Peak pressure:Max. value of operating motor in 0.6 second per minute




    Gerotor motor working principle

    Advantages of Gerotor Motors

    High torque output Ideal for heavy loads.

    Smooth operation Consistent output without pulsations.

    Compact design Efficient use of space.

    Reversible Can operate in both clockwise and counterclockwise directions.

    Wide speed range Versatile for various applications.

    Applications of Gerotor Motors

    Construction equipment Excavators, cranes, drilling rigs

    Agricultural machinery Tractors, harvesters

    Industrial machinery Presses, conveyors, mixers

    Marine applications Winches, steering systems

    Mobile equipment Forklifts, aerial work platforms

    Would you like to know more about specific applications or how to select the right Gerotor motor for your project


    Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems
