    4000 Series Disc Geroler Motors 19.00 Cu In/rev 4 Bolt SAE B Mounting Flange 1-1/4 In. Straight Keyed Shaft 1-1/16-12 St.Thd. O-Ring Ports

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : 4000 series
    Certification : ISO 2015:9001
    Price : Start from 500 usd
    Payment Terms : L/C, T/T, Western Union, Western Union
    Supply Ability : 300000 sets per year
    Delivery Time : 15 - 45 work days
    • Product Details
    • Company Profile

    4000 Series Disc Geroler Motors 19.00 Cu In/rev 4 Bolt SAE B Mounting Flange 1-1/4 In. Straight Keyed Shaft 1-1/16-12 St.Thd. O-Ring Ports

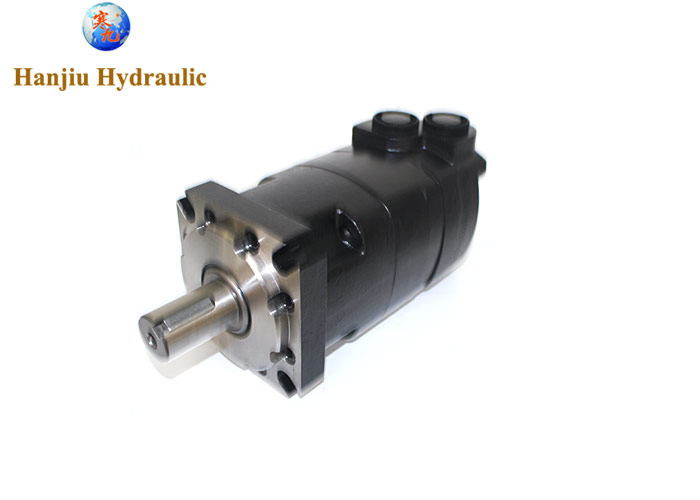

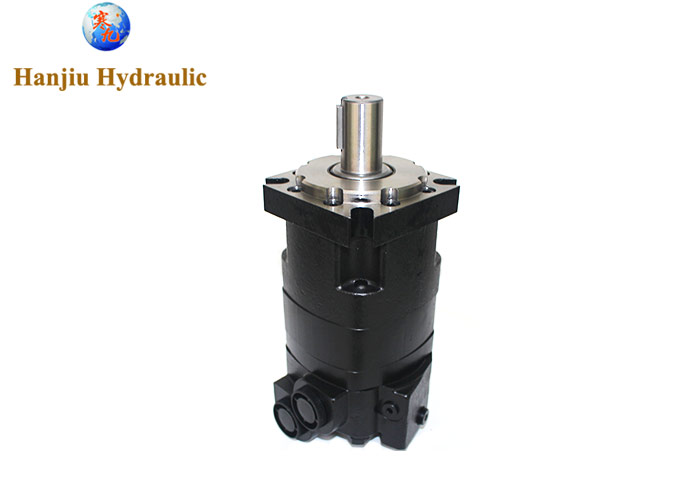

    4000 Series Geroler Motor, 19.00 cu in/rev, 4 Bolt SAE B Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports


    109-1105-006,1091105006 eaton charlynn 4000series 4k motor


    Specification


    Model codeM04190AB01AB02000000000000000F
    Motor Series4000 Series
    Valve systemDisc valve with valve drive
    Orbital gearwheel set typeGeroler
    Motor size310
    Geometric displacement [cm3/r [in3/r]]311.8 [19.03]
    Motor typeStandard
    Motor functionStandard
    Mounting flange type4 Bolt - Square
    Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]101.6 x 8.0, 127.0, 14.7 [4.00 x 0.32, 5.00, 0.58] SAE B
    Shaft typeStraight
    Shaft dimensionDia. 1 1/4 inch, 3/8 - 16 UNC-2B thread in shaft end
    Shaft KeySquare key, 5/16 x 1 5/8 inch
    Main port thread typeUN / UNF
    Main port styleSideport - staggered
    Main port dimension1 1/16 - 12 UN-2B SAE O-Ring port
    Drain Port Dimension7/16 - 20 UNF-2B SAE O-Ring port


    Model numberdisplacementMountshaftportsFeatures
    109-11017.94 Bolt SAE B1-1/4 in. Straight Keyed1-1/16-12 St.Thd. O-RingStandard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings
    109-11029.94 Bolt SAE B1-1/4 in. Straight Keyed1-1/16-12 St.Thd. O-RingStandard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings
    109-110312.54 Bolt SAE B1-1/4 in. Straight Keyed1-1/16-12 St.Thd. O-RingStandard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings
    109-1105194 Bolt SAE B1-1/4 in. Straight Keyed1-1/16-12 St.Thd. O-RingStandard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings
    109-1106244 Bolt SAE B1-1/4 in. Straight Keyed1-1/16-12 St.Thd. O-RingStandard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings
    109-111012.54 Bolt SAE B1-5/8 in. Tapered1-1/16-12 St.Thd. O-RingStandard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings
    109-1212304 Bolt SAE B1-1/4 in. Straight Keyed1-1/16-12 St.Thd. O-RingStandard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings


    Quality 4000 Series Disc Geroler Motors 19.00 Cu In/rev 4 Bolt SAE B Mounting Flange 1-1/4 In. Straight Keyed Shaft 1-1/16-12 St.Thd. O-Ring Ports for sale
