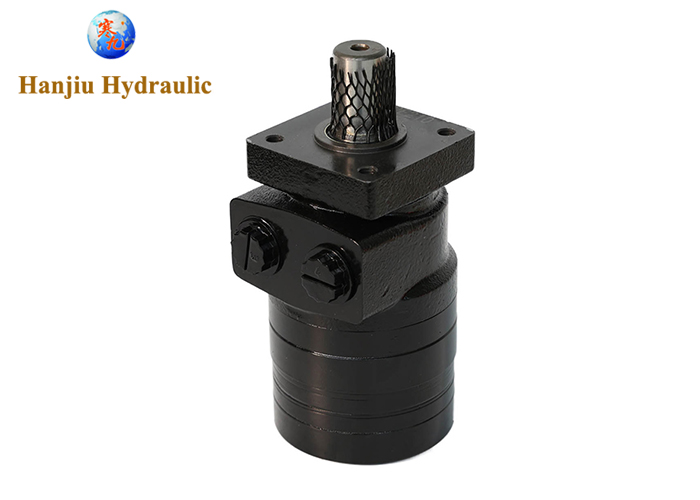

    BME2-100-H4S-K BME2 Series Hydraulic Motor 100ml/r 4-bolt Flange With 25.4mm Key Shaft

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : BME2-100-H4S-K
    Certification : CE
    Price : 109
    Payment Terms : T/T, Paypal, Western Union
    Supply Ability : 10000 pieces per year
    Delivery Time : 0 - 35 work days
    • Product Details
    • Company Profile

    BME2-100-H4S-K BME2 Series Hydraulic Motor 100ml/r 4-bolt Flange With 25.4mm Key Shaft


    Welcome to Hanjiu Hydraulic's shop
    We specialize in orbital hydraulic motors. Customers use our hydraulic motors as high-quality direct replacements for Danofss, Eaton Char-lynn, White, M+S, Parker
    We are glad that more and more customers choose Hanjiu hydraulic motors
    We will continue to serve more customers with higher quality, lower prices, and faster delivery


    BME2-100-H4S-K BME2 Series Hydraulic Motor 100ml/r 4-bolt flange with 25.4mm Key shaft


    This series is the BME2 series hydraulic motor
    Model:
    BME2-100-H4S-K
    Displacement: 100 ml/r
    Flange: 4-bolt

    Rotation :Standard


    Here is it's technical details:


    TypeBME2BME2BME2BME2BME2BME2BME2BME2BME2BME2BME2
    6580100125160200230250295315375
    Geometric displacement (cm3 /rev.)66.881.3101.6127157.2193.6226257287.8314.5370
    Max. speed (rpm)cont.667543439350283229247216196178152
    int.842689553441355289328287254235199
    Max. torque (N•m)cont.126157191245307382378381393448439
    int.176215268335422520528543547587613
    Max. output (kW)cont.8.38.87.98.98.999.99.38.787.6
    int.13.914.413.514.115.615.717.916.515.614.314
    Max. pressure drop (MPa)cont.141414141414121110109
    int.19191919191916515.514.513.512.5
    peak2020202020201818171616
    Max. flow (L/min)cont.4545454545455757575757
    int.5757575757577575757575

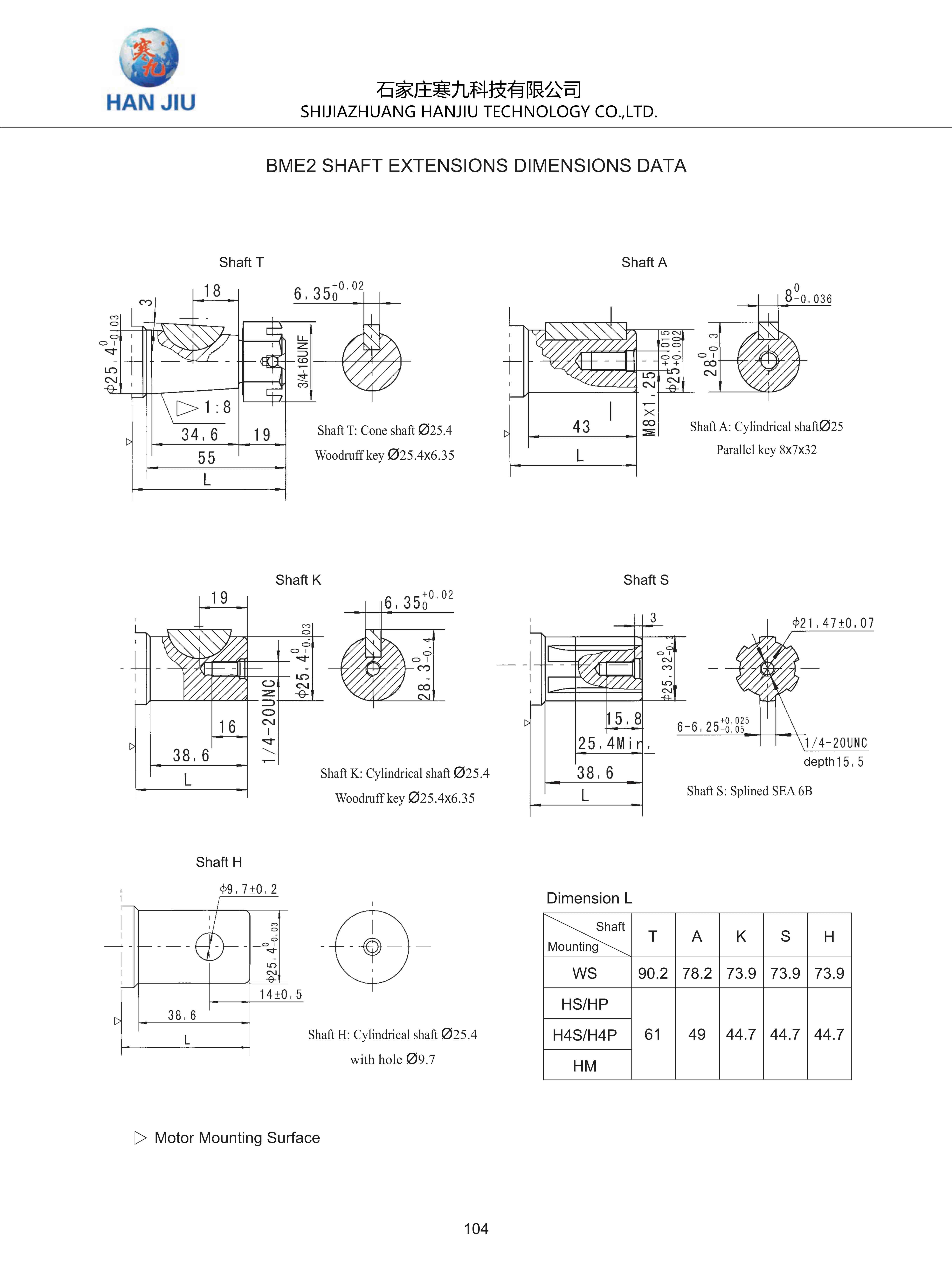

    Drawing:




    More drawing for BME2 series hydraulic motors:






    Hanjiu BME2 series Gerotor Motors include ligh duty motors to replace Parker Light Duty Motor TB Series, TJ Series, TC Series, TS Series, TE Series. Also have more other series Gerotor Motors include medium duty motors to replace Parker Medium Duty Motor TF Series, TG Series, TH Series. They are rugged Low Speed ​​High Torque (LSHT) orbital motors featuring robust construction with continuous oil flow across splines for longer life, superior side load capacity, and smooth extra low speed operation. A high pressure shaft seal is standard. Dependability is based on high quality design and manufacturing.
