BMT-315-W-FD-D, China Factory, BMT series High Troque Hydraulic Orbit Motor Supplier
Welcome!
Hydraulic Motor manufacturer from China specializes in high
performance bidirectional hydraulic motors for
mixing, sweeping, lifting, conveying and various applications.
Partners include OEM, hydraulic importers, hydraulic distributors
Please see product introduction below:

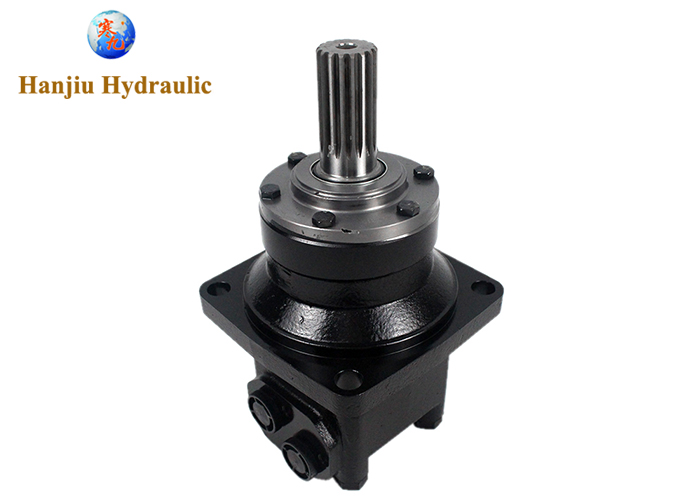

BMT-315-W-FD-D
displacement | 315ml/r |
flange | 4-Ø18 Wheel-flangeØ200, pilotØ160×7 |
ports | G3/4 Manifold Mount,4-M10 , G1/4 |
output shaft | Shaft Ø38.1 ,splined tooth 17-DP12/24 |
rotation | CW and CCW |
paint | black |
Specification:
Type | BMT 160 | BMT 200 | BMT 230 | BMT 250 | BMT 315 | BMT 400 | BMT 500 | BMT 630 | BMT 800 | |
displacement (cm3/rev. ) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
Max. speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
Max. torque (N.m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
Max. output (KW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
Max.pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
Max. flow (L/min) | rated | 80 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | |
int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
Max. inlet pressure (Mpa) | cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 |
Mounting size of : BMT-315-W-FD-D
More mounting sizes available for BMT series:
![]() |
