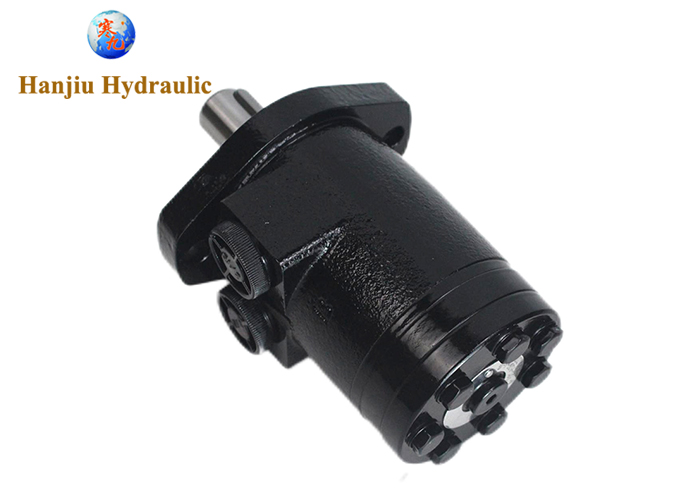

    101-1195-009 H series Eaton Char-lynn Gerotor Hydraulic Motor replacement BMPH-100

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : 101-1195-009
    Certification : CE
    Price : 46 usd/pc
    Payment Terms : D/A, D/P, T/T, Western Union
    Supply Ability : 10000 pieces per year
    Delivery Time : 10 - 15 work days
    • Product Details
    • Company Profile

    101-1195-009 H series Eaton Char-lynn Gerotor Hydraulic Motor replacement BMPH-100


    101-1195-009 H series Eaton Char-lynn Gerotor Hydraulic Motor replacement BMPH-100


    Quick review:

    Model number: BMPH-100
    Displacement: 100 ml/r
    Shaft, Key shaft
    Rotation, CW
    Features, replace Eaton Char-lynn 101-1195-009


    Speed, torque, flow, pressure, weight informations:

    Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
    TypeBMP
    BMPH
    BMPW
    36
    BMP
    BMPH
    BMPW
    50
    BMP
    BMPH
    BMPW
    80
    BMP
    BMPH
    BMPW
    100
    BMP
    BMPH
    BMPW
    125
    BMP
    BMPH
    BMPW
    160
    BMP
    BMPH
    BMPW
    200
    BMP
    BMPH
    BMPW
    250
    BMP
    BMPH
    BMPW
    315
    BMP
    BMPH
    BMPW
    400
    BMP
    BMPH
    BMPW
    500
    Geometric displacement (cm3 /rev.)3651.777.796.2120.2157.2194.5240.3314.5389.5486.5
    Max. speed (rpm)cont.15001150770615490383310250192155120
    int.16501450960770615475385310240190150
    Max. torque (N·m)cont.55100146182236302360380375360385
    int.76128186227290370440460555525560
    peak96148218264360434540550650680680
    Max. output (kW)cont.81010111010108.5765
    int.11.512121312121210.58.576
    Max. pressure drop (MPa)cont.12.514141414141411976
    int.16.517.517.517.517.517.517.5141410.59
    peak22.522.522.522.522.522.522.518161412
    Max. flow (L/min)cont.5560606060606060606060
    int.6075757575757575757575
    Weight (kg)5.65.65.75.966.26.476.97.48

    Technical data for BMP with 31.75 and 32 shaftt:

    TypeBMP
    BMPH
    36
    BMP
    BMPH
    50
    BMP
    BMPH
    80
    BMP
    BMPH
    100
    BMP
    BMPH
    125
    BMP
    BMPH
    160
    BMP
    BMPH
    200
    BMP
    BMPH
    250
    BMP
    BMPH
    315
    BMP
    BMPH
    400
    BMP
    BMPH
    500
    Geometric displacement (cm3 /rev.)3651.777.796.2120.2157.2194.5240.3314.5389.5486.5
    Max. speed (rpm)cont.15001150770615490383310250192155120
    int.16501450960770615475385310240190150
    Max. torque (N·m)cont.55100146182236302360460475490430
    int.76128186227290370440570555580560
    peak96148218264360434540670840840780
    Max. output (kW)cont.81010111010108.5766
    int.11.512121312121210.58.577
    Max. pressure drop (MPa)cont.12.514141414141414129.57
    int.16.517.517.517.517.517.517.517.51411.59
    peak22.522.522.522.522.522.522.522.522.51813
    Max. flow (L/min)cont.5560606060606060606060
    int.6075757575757575757575
    Weight (kg)5.665.75.966.26.476.97.48
    * Continuous pressure:Max.value of operating motor continuously.
    * Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
    * Peak pressure:Max.value of operating motor in 0.6 second per minute.


    Photo: Special Flange





    • Benefits:
      • High efficiency
      • Powerful compact
      package
      • Design flexibility
      • Extended leak-free
      performance
      Applications:
      • Agricultural augers,
      harvesters, seeders
      • Car wash brushes
      • Food processing
      • Railroad maintenance
      equipment
      • Machine tools
      • Conveyors
      • Industrial sweepers and
      floor polishers
      • Saw mill works
      • Turf equipment
      • Concrete and asphalt
      equipment
      • Skid steer attachments

    More Eaton Char-lynn replacement motor we have:


    • J (129-)
    • H (101-)
    • S (103-)
    • T (158-)
    • W (162-)
    • 2000 (104-, 105-, 106-,)
    • 4000 (109-, 110-,)
    • 6000 (112-, 113-, 114-)
    • 10000 ( 119-)

    Gerotor Hydraulic Motors BMK2 Danfoss Eaton Charlynn 2000 Series Interchangeable Hydraulic Motors 2


    About HANJIU Technology:

    Precision manufacturing, providing solutions for hydraulic systems. Grow together with customers, always provide innovation in products and services, always maintain our quality standards, and let our professional team meet your needs. Brand new wholeheartedly provide you with quality service. Our goal is to ensure that our customers receive fast, efficient and reliable service. Be a benchmark enterprise in the industry and lead the industry development.


    HANJIU manufactures economical hydraulic motors, hydraulic directional valves and Orbitrol steering for all over the world.

    We specialize in Eaaton Char-lynn replacement/alternative/compatible motors
    We specialize in Saauer Danfooss replacement/alternative/compatible motors
    We specialize in Parker replacement/alternative/compatible motors
    We specialize in Brevini replacement/alternative/compatible Motors
    We are good at M+S replacement/alternative/compatible motor
