BMR orbit motor and monoblock valve P80 for garbage truck hydraulic system

Hanjiu technology supply hydraulic orbit motors and hydraulic valves for garbage truck

the drive motor type is BMR series motor, BMSY series motor

also hydraulic monoblock valve, with spring control and detent control

the pressue is 20-25Mpa

Motor type

BMR160:

displacement:160cc

flange :2 bolts flange

shaft:25mm shaft

ports: G1/2

BMSY200:

displacement:200cc

flange:4 bolts standard flange

shaft:32mm key shaft

ports:G1/2

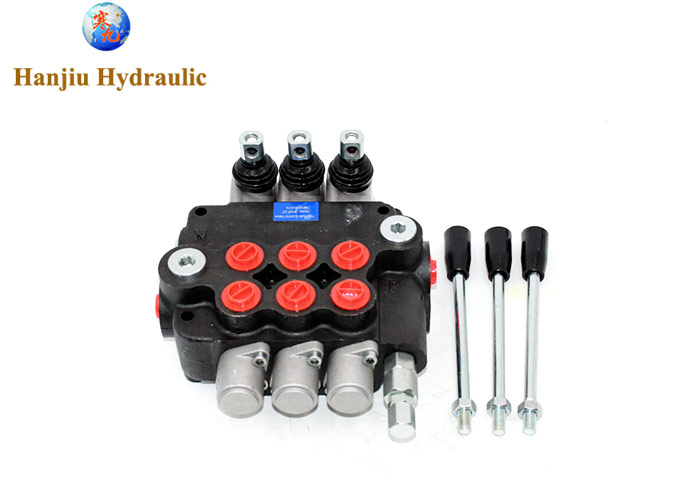

Hydraulic valve

type:2P80

flow rate:80liters

pressure:200bar

control type:detent control

Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Hydraulic Components in Hook-Arm Garbage Trucks

Hydraulic systems are essential for the efficient operation of hook-arm garbage trucks. These systems provide the power to lift, tilt, and load garbage containers onto the truck.

Key Hydraulic Components

Hydraulic Pump Converts mechanical energy into hydraulic power. Typically, a high-displacement piston pump is used to handle the heavy loads involved in lifting and tilting.

Hydraulic Cylinders These generate the force to lift, tilt, and lock the hook arm.

Hook Arm Cylinder Lifts and lowers the hook arm.

Tilt Cylinder Tilts the truck chassis for unloading.

Locking Cylinder Secures the garbage container to the hook arm.

Hydraulic Valves Control the flow and direction of hydraulic oil. Directional control valves are used to operate the various functions of the truck.

Hydraulic Accumulators Store hydraulic energy to cushion pressure spikes and provide emergency power.

Hydraulic Oil The fluid medium that transmits power throughout the system.

Hydraulic Filters Remove contaminants from the hydraulic oil to protect components.

Hydraulic Hoses and Fittings Connect the various components of the hydraulic system.

How the System Works

Lifting the Hook Arm The hook arm cylinder extends, lifting the hook arm to engage the container.

Tilting the Truck The tilt cylinder tilts the truck chassis to facilitate loading and unloading.

Locking the Container The locking cylinder secures the container to the hook arm during transport.

Unloading the Container The hook arm cylinder lowers the hook arm, releasing the container.

Challenges in Hook-Arm Garbage Truck Hydraulics

Harsh operating conditions Exposure to dirt, debris, and varying weather conditions.

Heavy loads Components must be robust to handle the weight of garbage containers.

Frequent operation The hydraulic system experiences frequent cycles, requiring durability.

Maintenance Regular inspections and fluid changes are essential to prevent breakdowns.

hydraulic components in hookarm garbage truck

Would you like to focus on a specific component or aspect of hook-arm garbage truck hydraulics

I can provide more detailed information or troubleshooting tips.

Shijiazhuang Hanjiu Technology Co.,ltd. is a professional manufacturer of industrial hydraulic components, located in China - Hebei City. Since 1995, Hanjiu focused on the development and production of full series of hydraulic components, orbit motors, steering orbitrols, directional control valves.

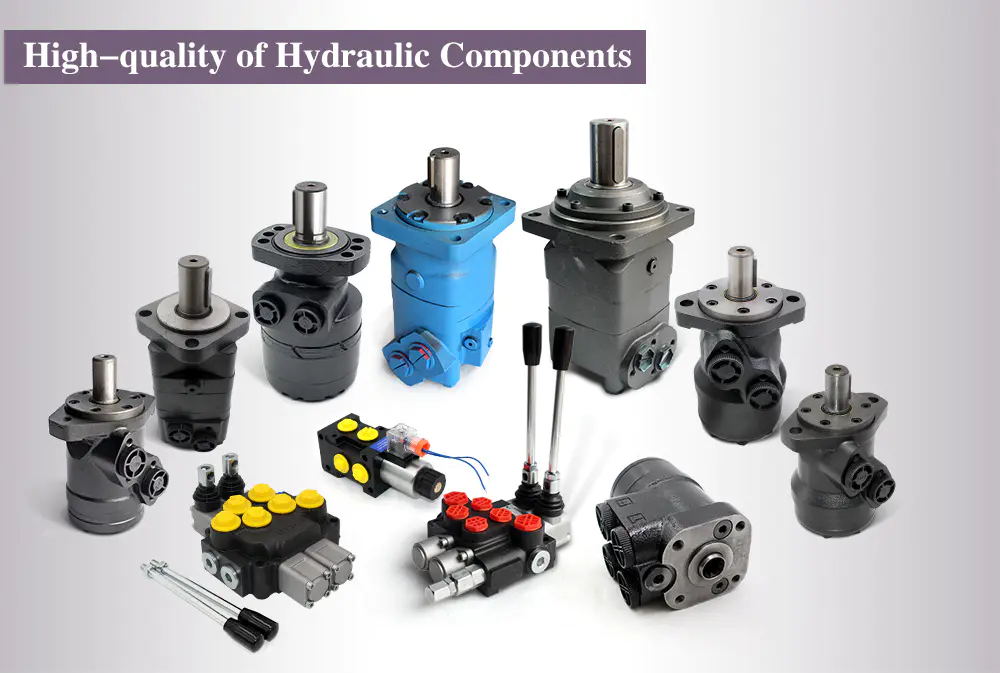

Our products include: GEROLER and GEROTOR motors, hydraulic steering units, directional control valves. More than 50 series, 2000 types. Personalized products and services to provide customers with a significant advantage. Due to the high quality of our products and reliable performance, they are widely used in mobile, industrial, fluid power, dynamic, agricultural, construction, marine, automation, transport, sanitary, etc.
