Hydraulic Orbital Motor OMS315 2 Bolt Flange Tapered Shaft With BSPP Ports

Shijiazhuang Hanjiu Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Hydraulic Orbital Motor OMS315 2 Bolt Flange Tapered Shaft With BSPP Ports from wholesalers

    Buy cheap Hydraulic Orbital Motor OMS315 2 Bolt Flange Tapered Shaft With BSPP Ports from wholesalers
    • Buy cheap Hydraulic Orbital Motor OMS315 2 Bolt Flange Tapered Shaft With BSPP Ports from wholesalers
    • Buy cheap Hydraulic Orbital Motor OMS315 2 Bolt Flange Tapered Shaft With BSPP Ports from wholesalers
    • Buy cheap Hydraulic Orbital Motor OMS315 2 Bolt Flange Tapered Shaft With BSPP Ports from wholesalers
    • Buy cheap Hydraulic Orbital Motor OMS315 2 Bolt Flange Tapered Shaft With BSPP Ports from wholesalers

    Hydraulic Orbital Motor OMS315 2 Bolt Flange Tapered Shaft With BSPP Ports

    Ask Lasest Price
    Brand Name : HANJIU CHINA
    Model Number : BMSY315
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, Payple
    Supply Ability : 100000 pieces per year
    Delivery Time : 25 - 35 work days
    • Product Details
    • Company Profile

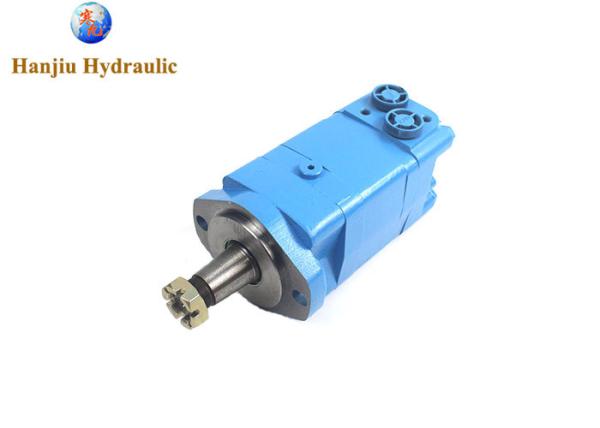

    Hydraulic Orbital Motor OMS315 2 Bolt Flange Tapered Shaft With BSPP Ports


    Hydraulic Orbital Motor OMS315, 2 bolt flange tapered shaft with BSPP ports


    PTO DRIVE MOTOR DETAILS:


    BRANDHANJIU
    TYPEBMSY315
    REPLACEMENTOMS315,MS315
    FLANGE2 BOLTS FLANGE,DIAMETERS 106.4MM
    SHAFTTapered SHAFT
    PORTSG1/2

    Main Specifications:

    TypeBMSY
    BMSE
    80
    BMSY
    BMSE
    100
    BMSY
    BMSE
    125
    BMSY
    BMSE
    160
    BMSY
    BMSE
    200
    BMSY
    BMSE
    250
    BMSY
    BMSE
    315
    BMSY
    BMSE
    375
    Geometric displacement
    (cm3 /rev.)
    80.6100.8125157.2200252314.5370
    Max. speed (rpm)cont.800748600470375300240200
    int.988900720560450360280240
    Max. torque (N·m)cont.190240310316400450560536
    int.240300370430466540658645
    peak260320400472650690740751
    Max. output (kW)cont.15.918.819.515.615.714.114.111.8
    int.20.123.523.221.218.31718.917
    Max. pressure drop (MPa)cont.17.517.517.5151412.51210
    int.2121212116161412
    peak22.522.522.522.522.52018.514
    Max. flow (L/min)cont.6575757575757575
    int.8090909090909090
    Max. inlet pressure (MPa)cont.2525252525252525
    int.3030303030303030
    Weight (kg)9.81010.310.711.111.612.312.6

    * Continuous pressure :Max. value of operating motor continuously.
    * Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
    * Peak pressure:Max. value of operating motor in 0.6 second per minute.



    Gerotor motor working principle

    Advantages of Gerotor Motors

    High torque output Ideal for heavy loads.

    Smooth operation Consistent output without pulsations.

    Compact design Efficient use of space.

    Reversible Can operate in both clockwise and counterclockwise directions.

    Wide speed range Versatile for various applications.

    Applications of Gerotor Motors

    Construction equipment Excavators, cranes, drilling rigs

    Agricultural machinery Tractors, harvesters

    Industrial machinery Presses, conveyors, mixers

    Marine applications Winches, steering systems

    Mobile equipment Forklifts, aerial work platforms

    Would you like to know more about specific applications or how to select the right Gerotor motor for your project


    Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems
