    BMT OMT 6000 Series Geroler Motors 630cc/Rev 4 Hole Mouting 40mm Key Shaft Manifold Mount Port G3/4

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : BMT-630-4-M-D
    Certification : CE, ISO9001
    Price : Contact the selle to get the best offer
    Payment Terms : T/T, Western Union, Payple
    Supply Ability : 70000 pieces per year
    Delivery Time : 35 work days
    • Product Details
    • Company Profile

    BMT OMT 6000 Series Geroler Motors 630cc/Rev 4 Hole Mouting 40mm Key Shaft Manifold Mount Port G3/4


    BMT OMT 6000 Series geroler motors 630cc/rev 4 hole mouting 40mm key shaft, manifold mount port G3/4


    Quick review:


    Model No.BMT-630-4-M-D

    Shaft

    40mm key shaft
    Geometric displacement630 cm³

    Main Specifications:


    TypeBMT
    160
    BMT
    200
    BMT
    230
    BMT
    250
    BMT
    315
    BMT
    400
    BMT
    500
    BMT
    630
    BMT
    800
    displacement (cm3/rev. )161.1201.4232.5251.8326.3410.9523.6629.1801.8
    Max. speed
    (rpm)
    cont.625625536500380305240196154
    int.780750643600460365285233185
    Max. torque (N.m)cont.4705906707309501080122013181464
    int.56071082188011401260137014981520
    peak66983895810361346.31450.31643.81618.81665
    Max. output (KW)cont.27.734.934.734.534.931.228.825.322.2
    int.3240404040353527.526.8
    Max.pressure drop (MPa)cont.202020202018161412.5
    int.242424242421181613
    peak282828282824211916
    Max. flow (L/min)rated80100100100100100100100100
    cont.100125125125125125125125125
    int.125150150150150150150150150
    Max. inlet
    pressure (Mpa)
    cont.212121212121212121
    int.252525252525252525
    peak303030303030303030
    Weight (kg)19.52020.420.52122232425

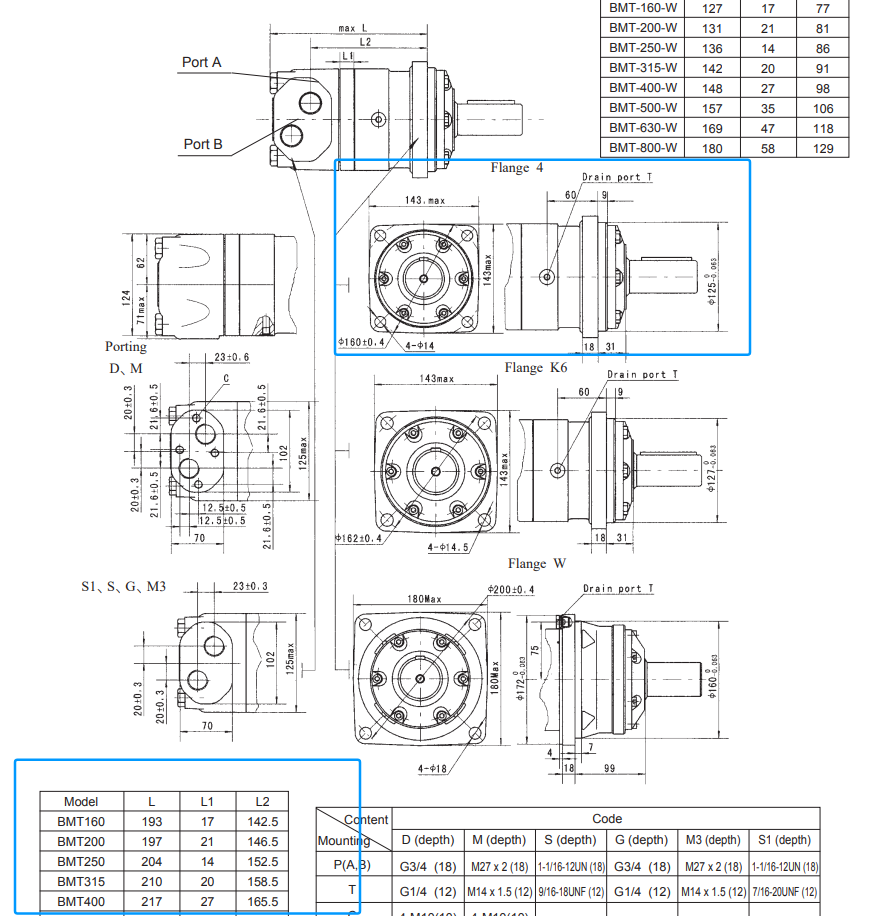

    Dimentions:



    More BMT series hydraulic motor available:


    OMT 160BMTE 230BMTJ 230
    OMT 200BMTE 230BMTJ 230
    OMT 250BMTE 250BMTJ 250
    OMT 315BMTE 315BMTJ 315
    OMT 400BMTE 400BMTJ 400
    OMT 500BMTE 500BMTJ 500
    OMT 630BMTE 630BMTJ 630
    OMT 800BMTE 800

    BMTJ 800



    More hydraulic motors available:



    About Hanjiu:

    Hanjiu technology is the biggest hydraulic motors, orbit motors, low speed high torque motors, torquemotors manufacturer in China, we have the most completely range of them, matching Danfss/ M+S/ Charlynn/ White/ Parker... with fast leading time, excellent price and best service. Our aim is to make your hydraulic system is easy and affordable!
